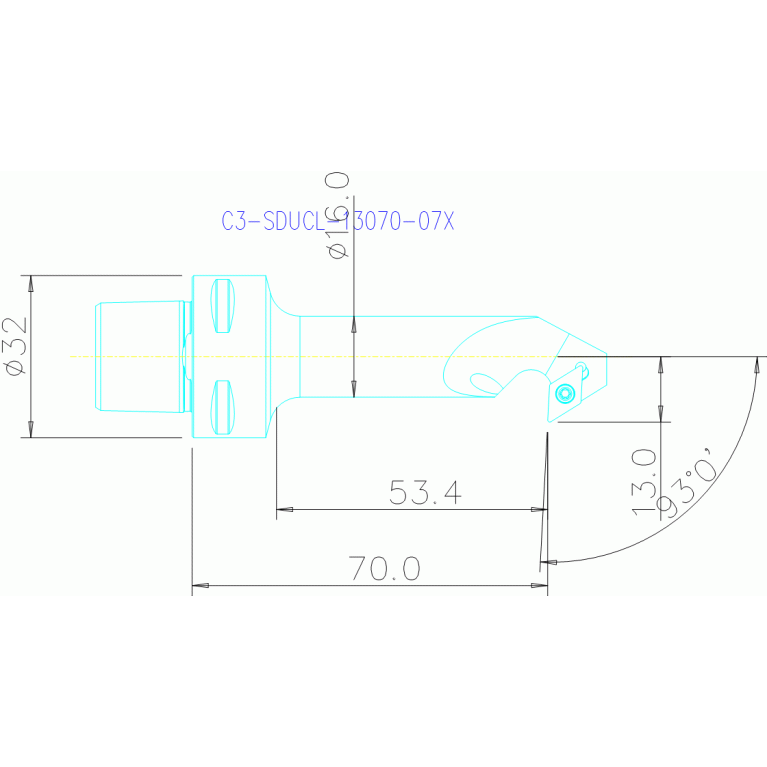

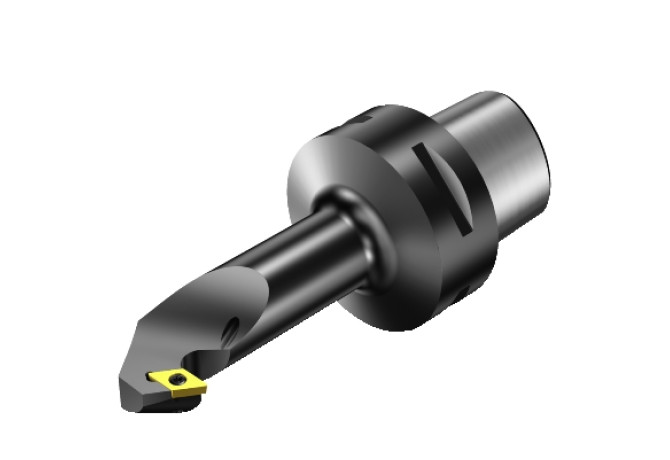

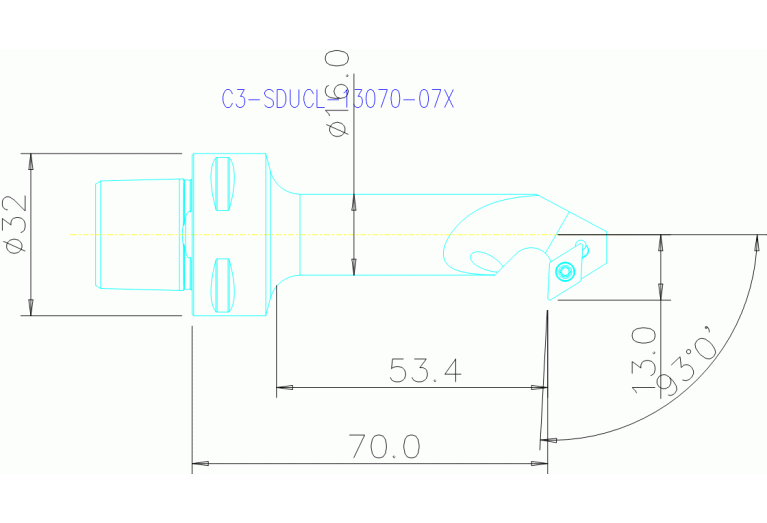

C3-SDUCL-13070-07X
C3-SDUCL-13070-07X
Артикул:
5727124
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
B3A (Inscribed circle diameter Pos. A)
6.35 mm
BI (Block index)
1
BLDA (Tool style code Position A)
3
C1A (Insert thickness Pos. A)
2.38125 mm
CEATC (Tool cutting edge angle type code)
P - Pull back
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
D1A (Corner radius Pos. A)
0.396875 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS03200195
DIN CSW1
DC0702993N
DMIN (Minimum bore diameter)
22 mm
EPSR (Insert included angle)
55 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0320$$$$
ISO CSW1
ISO$DC0702003******

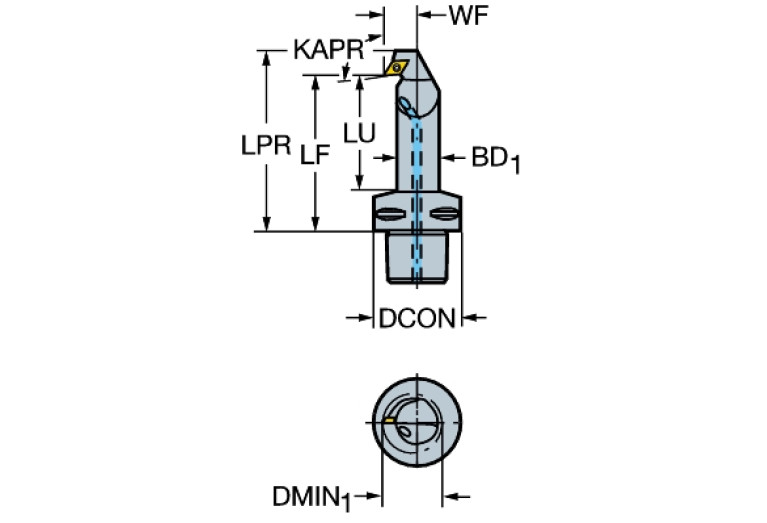

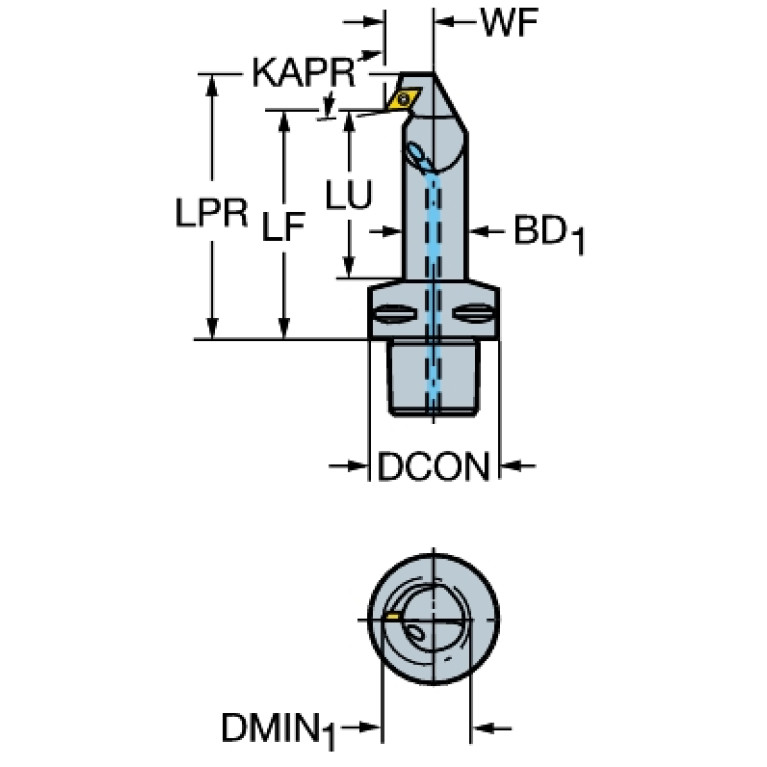

KAPR (Tool cutting edge angle)
93 Degree
LAMS (Inclination angle)
-3.561 Degree
LF (Functional length)
70 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR (Protruding length)
81.5 mm
LTA (Length tool assembly)
70 mm
MIID (Master insert identification)
DCMT070204
OAL (Overall length)
100.5 mm
WF (Functional width)
13 mm
Working process
DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal
WT (Weight of item)
0.221 kg
