Главная Инструменты 309-09 - System tool for internal turning TR-SL-V13PBR-25

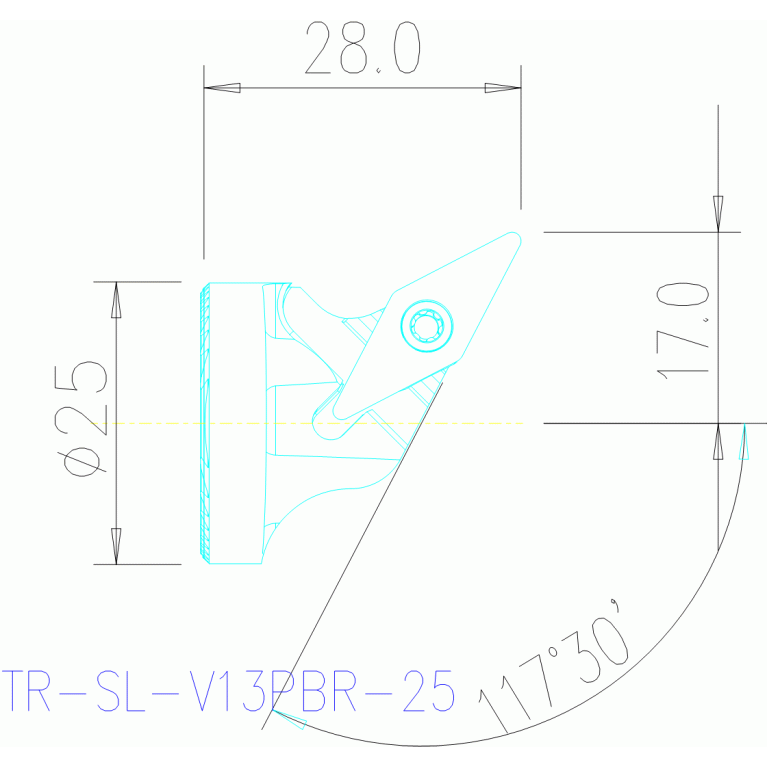

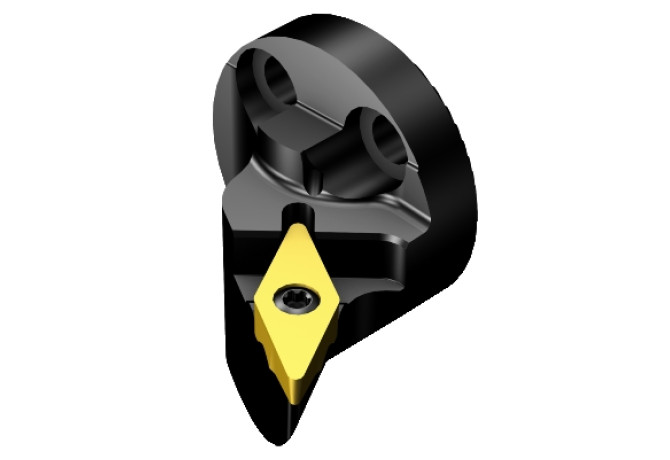

TR-SL-V13PBR-25

Артикул: 5755458

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

5 Degree

B3A (Inscribed circle diameter Pos. A)

8 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

4.525 mm

CEATC (Tool cutting edge angle type code)

B - Side and front lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

8 - With coolant supply (entry), axial groove at shank

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

0.794 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CMS02500595

DIN CSW1

SV-TH130000

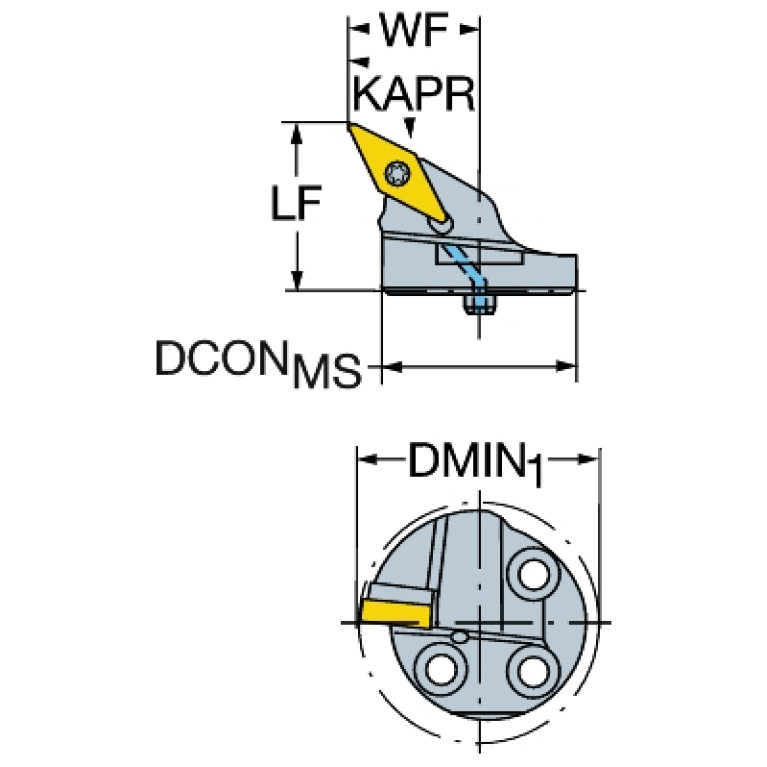

DMIN (Minimum bore diameter)

33 mm

EPSR (Insert included angle)

35 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CMS05C0250$$$$

ISO CSW1

SV$$TH13$$008**$$**

KAPR (Tool cutting edge angle)

117.5 Degree

LAMS (Inclination angle)

-5 Degree

LF (Functional length)

28 mm

LOC-03 ISO

CMS05C0250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0250

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS02500595

LTA (Length tool assembly)

28 mm

MIID (Master insert identification)

TR-VB1308

OAL (Overall length)

31.9 mm

WF (Functional width)

17 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

0.066 kg
