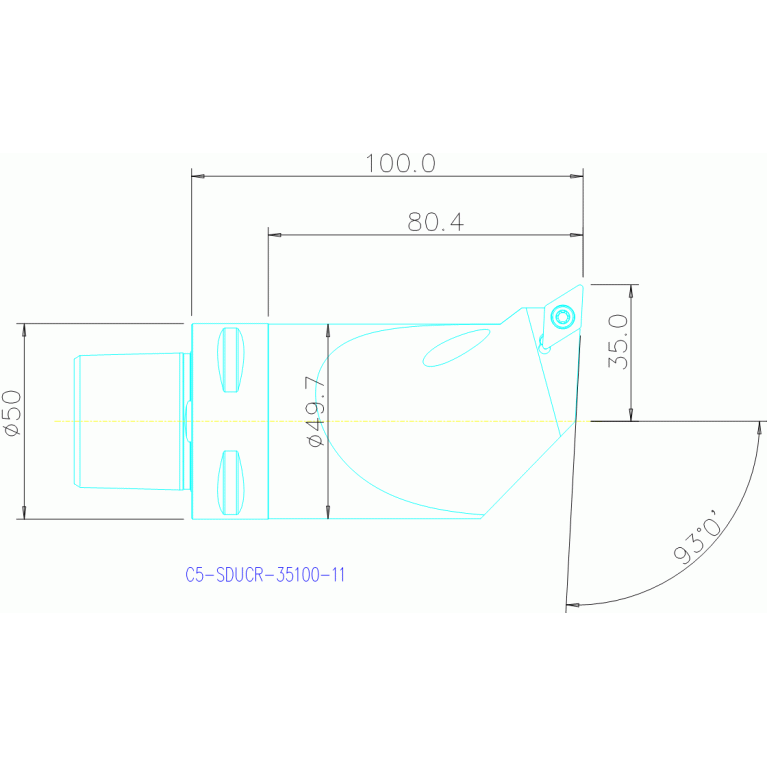

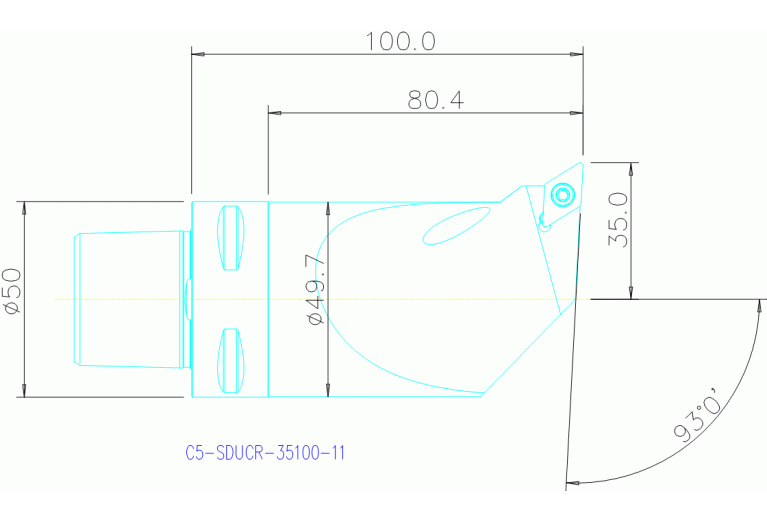

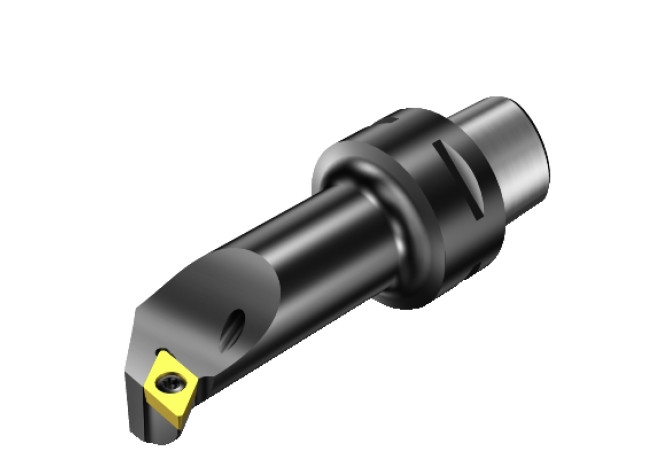

Главная Инструменты 309-09 - System tool for internal turning C5-SDUCR-35100-11

C5-SDUCR-35100-11

Артикул: 5728566

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

B3A (Inscribed circle diameter Pos. A)

9.525 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

3.969 mm

CEATC (Tool cutting edge angle type code)

E - Front lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

0.794 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS05000195

DIN CSW1

DC11T3993N

DMIN (Minimum bore diameter)

63 mm

EPSR (Insert included angle)

55 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CCS01C0500$$$$

ISO CSW1

ISO$DC11T3003******

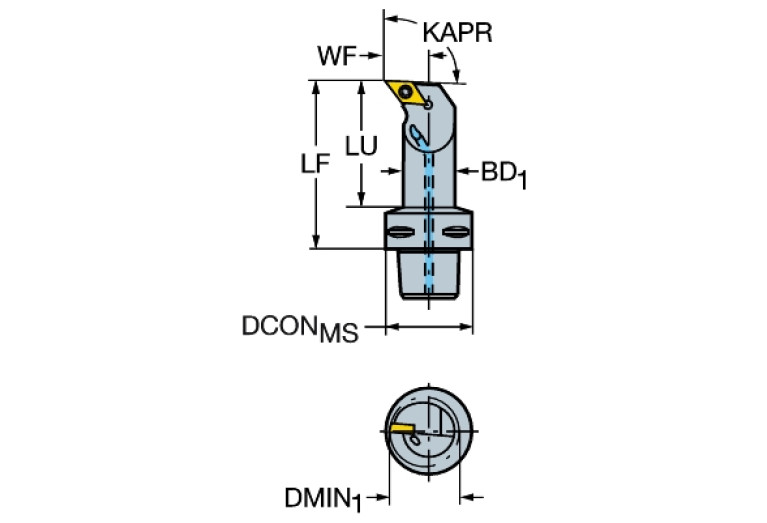

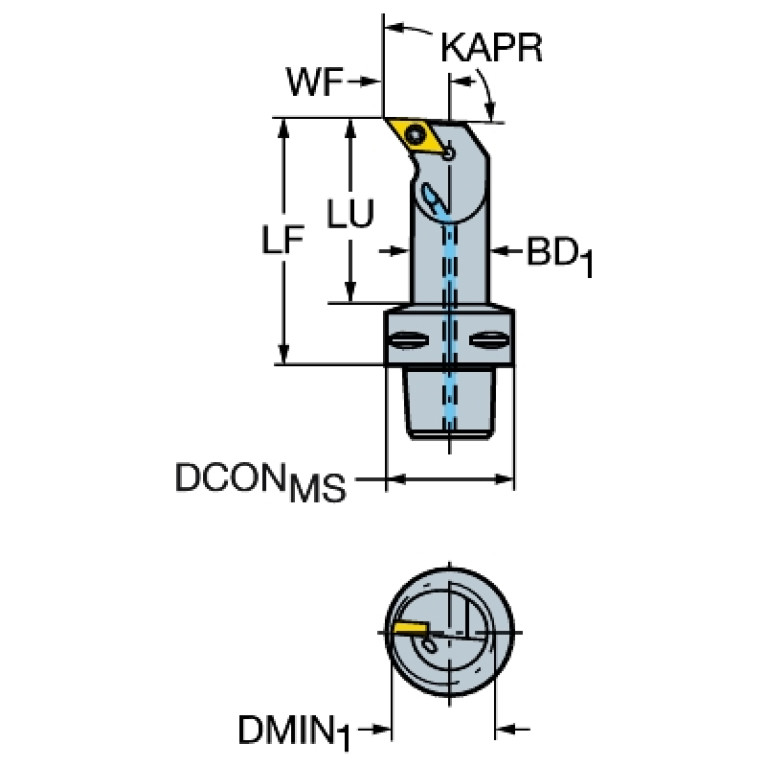

KAPR (Tool cutting edge angle)

93 Degree

LAMS (Inclination angle)

-3.587 Degree

LF (Functional length)

100 mm

LOC-03 ISO

CCS01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR (Protruding length)

100 mm

LTA (Length tool assembly)

100 mm

MIID (Master insert identification)

DCMT11T308

OAL (Overall length)

130 mm

WF (Functional width)

35 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

1.274 kg
