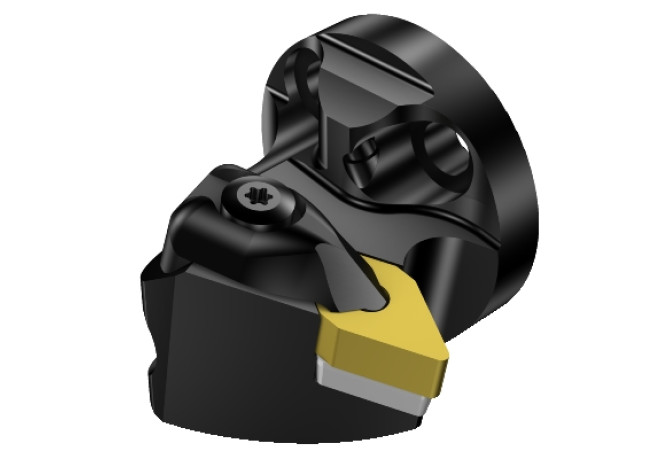

Главная Инструменты 309-09 - System tool for internal turning 570-DDXNR-32-11

570-DDXNR-32-11

Артикул: 5764392

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

0 Degree

B3A (Inscribed circle diameter Pos. A)

9.525 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

4.762 mm

CEATC (Tool cutting edge angle type code)

E - Front lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

0.794 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CMS03200197

DIN CSW1

DN1104992N

DMIN (Minimum bore diameter)

40 mm

EPSR (Insert included angle)

55 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CMS01C0320$$$$

ISO CSW1

ISO$DN1104002******

KAPR (Tool cutting edge angle)

62.5 Degree

LAMS (Inclination angle)

-10 Degree

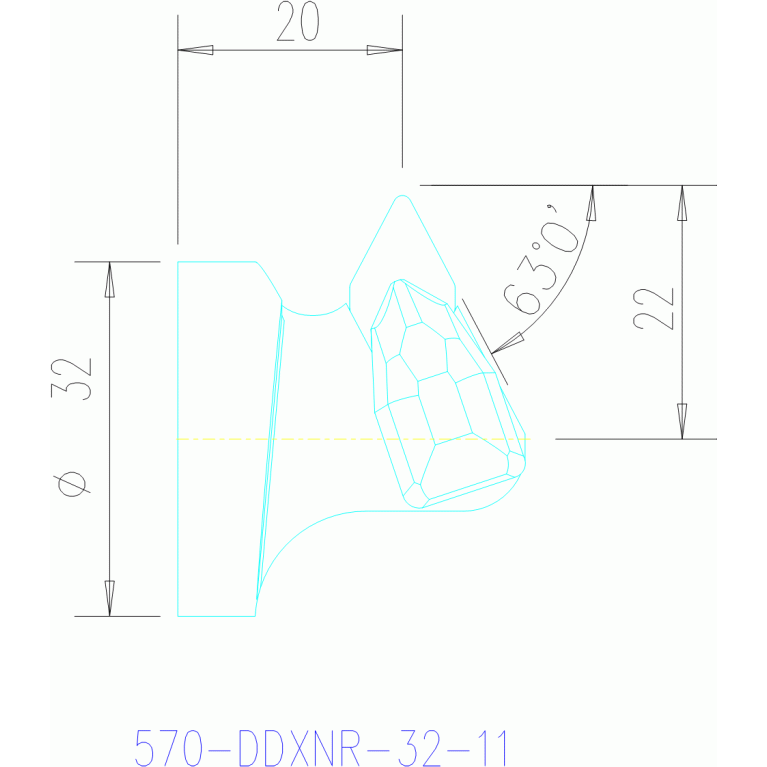

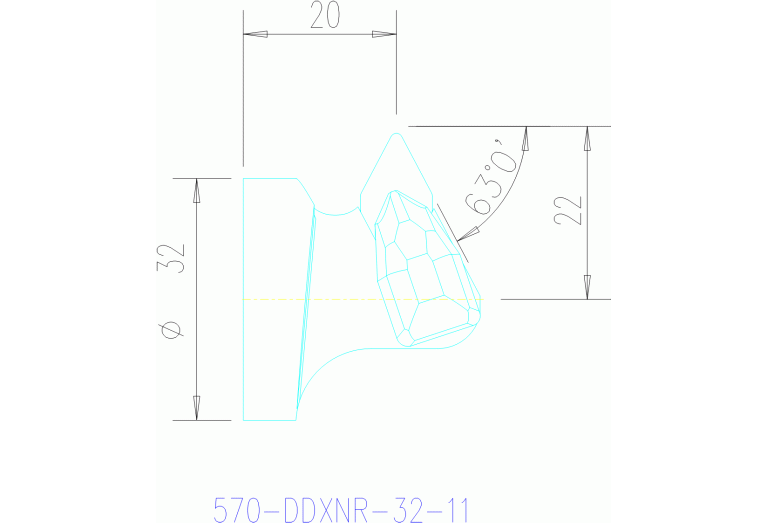

LF (Functional length)

20 mm

LOC-03 ISO

CMS01C0320$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS03200197

LPR (Protruding length)

31.1 mm

LTA (Length tool assembly)

20 mm

MIID (Master insert identification)

DNMG110408

OAL (Overall length)

34.9 mm

WF (Functional width)

22 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

0.102 kg
