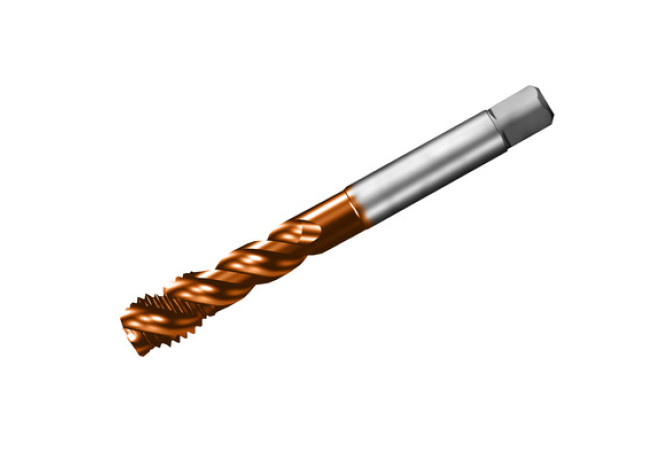

Главная Инструменты 301-01 - Thread cutting tap with offset shank T300-XM103AA-M16 C110

T300-XM103AA-M16 C110

Артикул: 6966950

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD AlCrN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL04802125

DRVS (Drive size)

9.144 mm

FHA (Flute helix angle)

45 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

C110

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R4800$$$$

LOC-03 ISO

ZYL21R4800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0480

LOC-03 (DCONMS Diameter)

12.192 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04802125

LS (Shank length)

44.288 mm

Materials

P,M,K,N,S

NOF (Flute count)

OAL (Overall length)

110 mm

PLCD (Gate diameter)

14 mm

TCL (Tap chamfer length)

3.471 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

16 mm

THFT (Thread form type)

THL (Thread cutting part length)

20.1 mm

THOD (Thread designation)

M16x2-6H

TP (Thread pitch)

2 mm

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.092 kg
