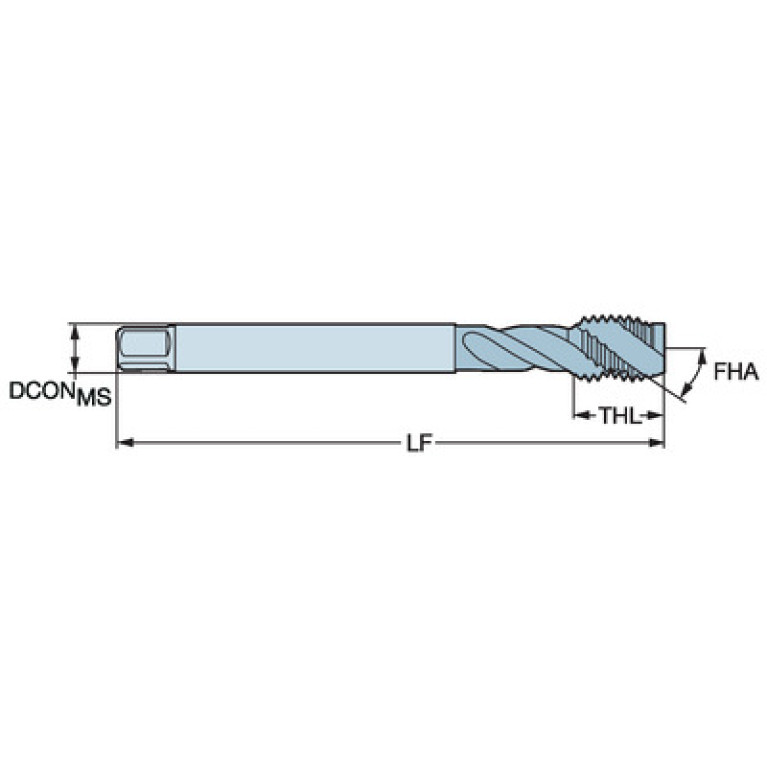

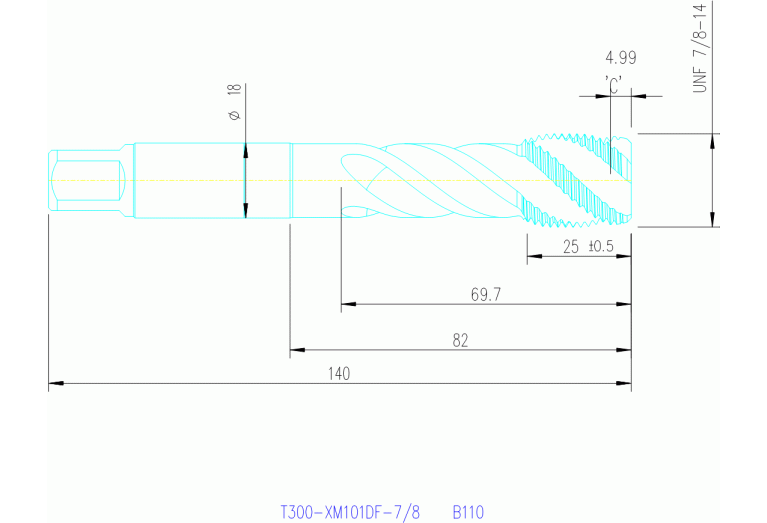

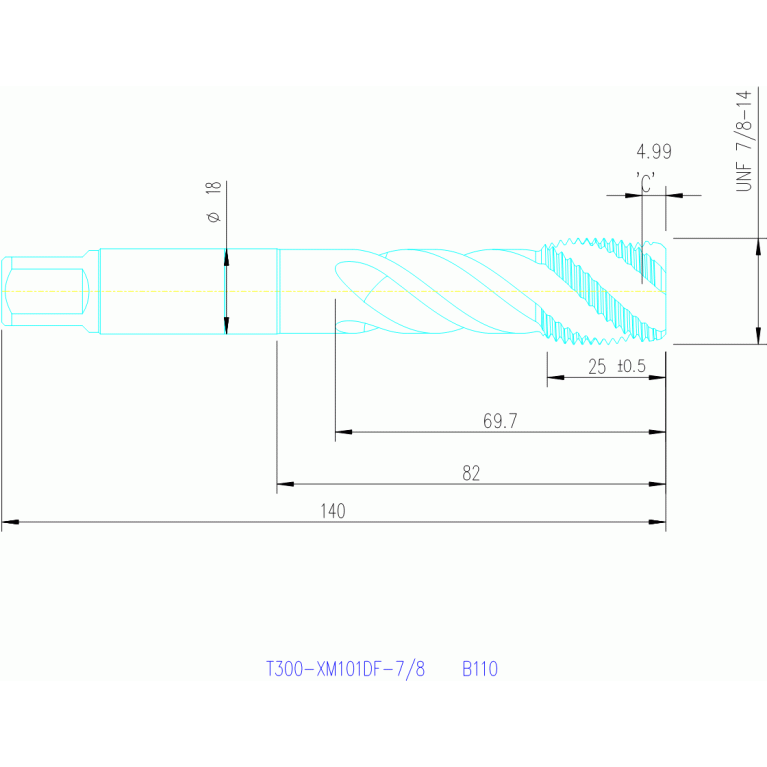

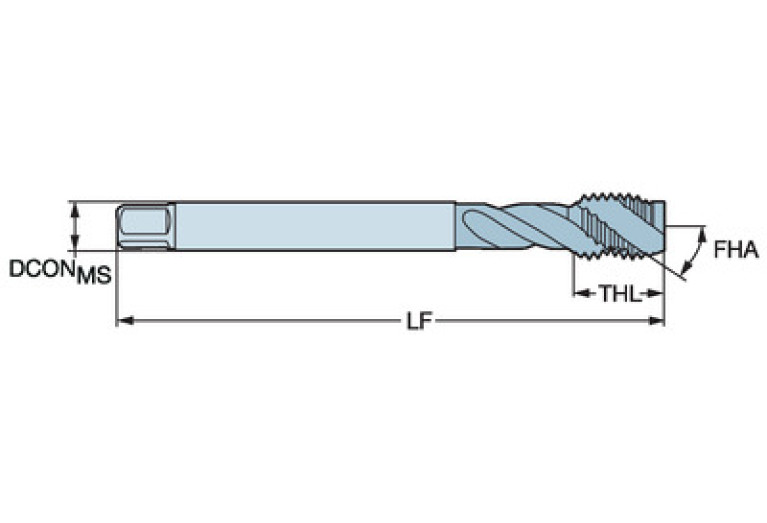

Главная Инструменты 301-01 - Thread cutting tap with offset shank T300-XM101DF-7/8 B145

T300-XM101DF-7/8 B145

Артикул: 6539513

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD FeN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01802105

DRVS (Drive size)

14.5 mm

FHA (Flute helix angle)

45 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

B145

GRDPRIO (Standard designation of the grade main application)

HSS-E

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21G1800h$09

LOC-03 ISO

ZYL21G1800h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0180

LOC-03 (DCONMS Diameter)

18 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01802105

LS (Shank length)

47 mm

Materials

P,M,K

NOF (Flute count)

OAL (Overall length)

140 mm

PLCD (Gate diameter)

20.4 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

3.763 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

22.225 mm

TDFR (Thread diameter nominal fraction)

7/8 in

THFT (Thread form type)

UNF

THL (Thread cutting part length)

25 mm

THOD (Thread designation)

UNF7/8-14-2B

TPI (Threads per inch)

14 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.24 kg
