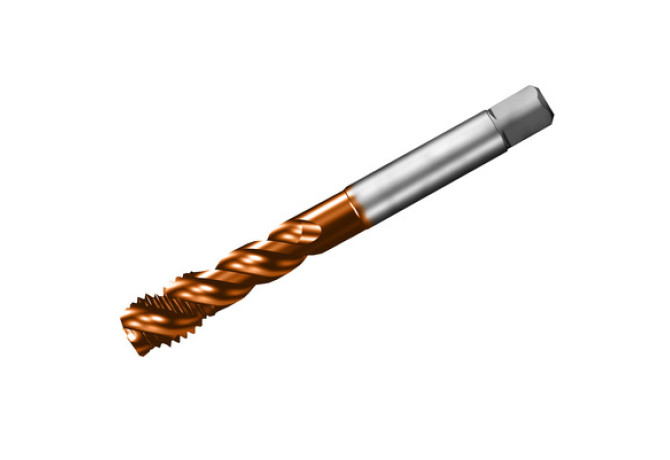

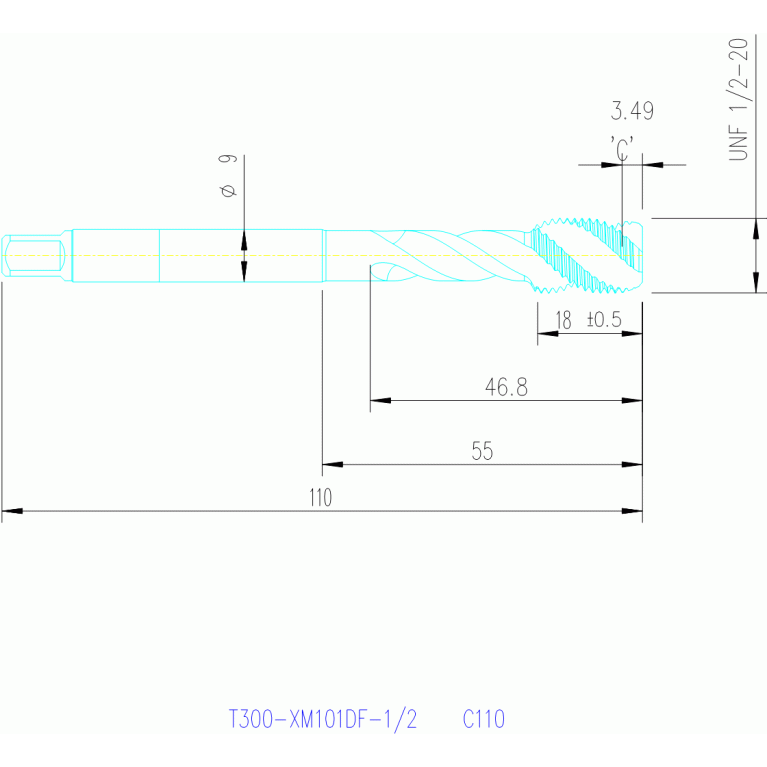

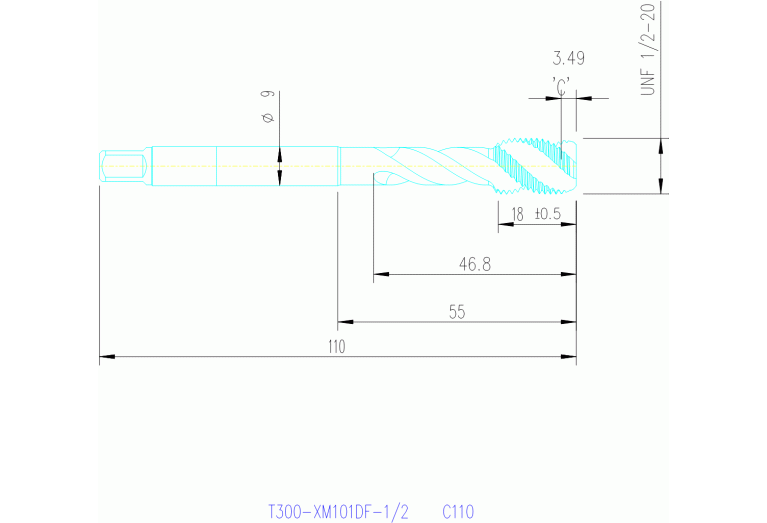

T300-XM101DF-1/2 C110

T300-XM101DF-1/2 C110

SV - Sandvik-Coromant
Артикул: 6539620
В наличии
0 ₽
В корзину
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD AlCrN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL00902105
DRVS (Drive size)
7 mm
FHA (Flute helix angle)
45 Degree
FHH (Flute helix hand)
R - Hand of helix right
GRDMFG (Grade manufacturers designation)
C110
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21F9000h$09
LOC-03 ISO
ZYL21F9000h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0090

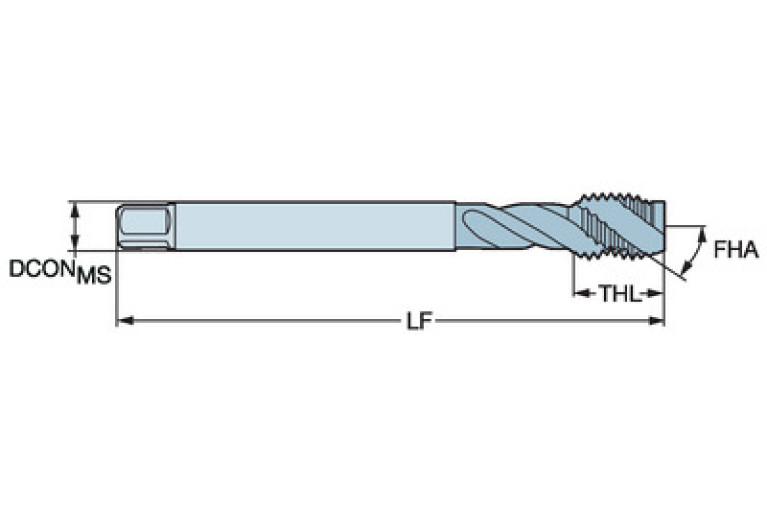

LOC-03 (DCONMS Diameter)
9 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS (Shank length)
27 mm
Materials
P,M,K,N,S
NOF (Flute count)
3
OAL (Overall length)
110 mm
PLCD (Gate diameter)
11.5 mm
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
2.72 mm
TCTR (Thread tolerance class)
2B
TD (Thread diameter)
12.7 mm
TDFR (Thread diameter nominal fraction)
1/2 in
THFT (Thread form type)
UNF
THL (Thread cutting part length)
18 mm
THOD (Thread designation)
UNF1/2-20-2B
TPI (Threads per inch)
20 1/in
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.056 kg
