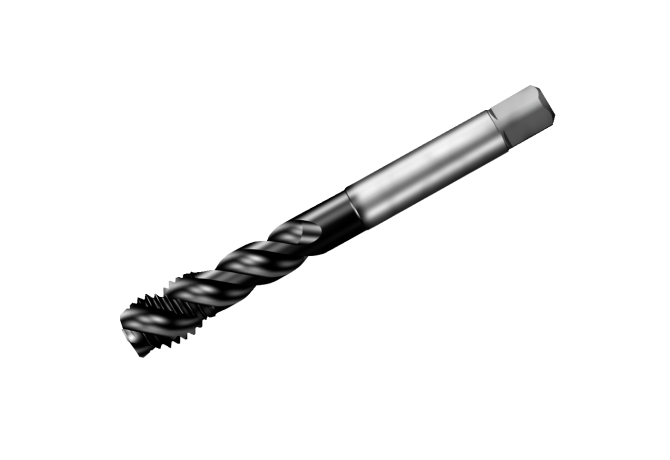

Главная Инструменты 301-01 - Thread cutting tap with offset shank T300-PM105DA-M16 P1PM

T300-PM105DA-M16 P1PM

Артикул: 8055830

В наличии

0 ₽

В корзину

Описание

Характеристики

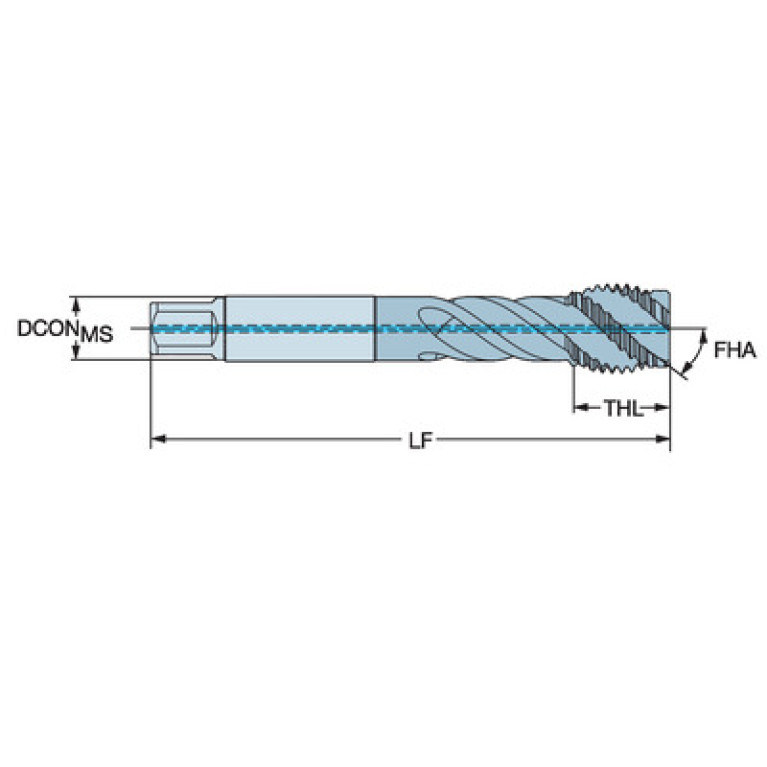

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01202115

DRVS (Drive size)

9 mm

FHA (Flute helix angle)

48 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

P1PM

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21G1200$$$$

LOC-03 ISO

ZYL21G1200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0120

LOC-03 (DCONMS Diameter)

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202115

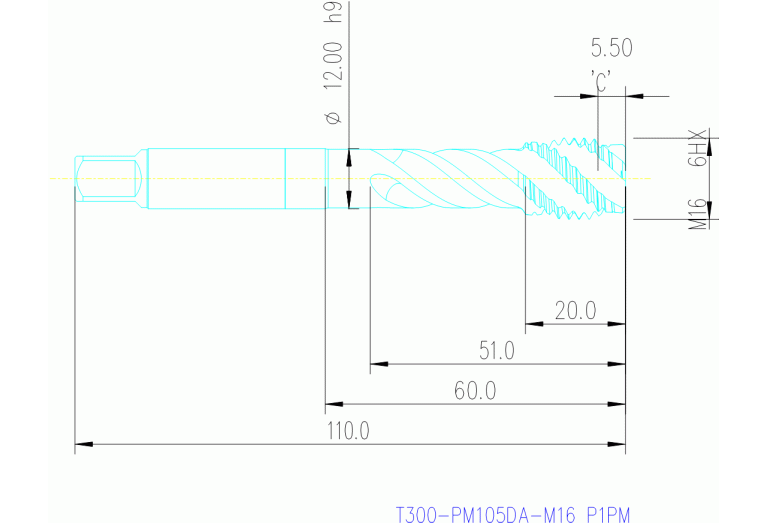

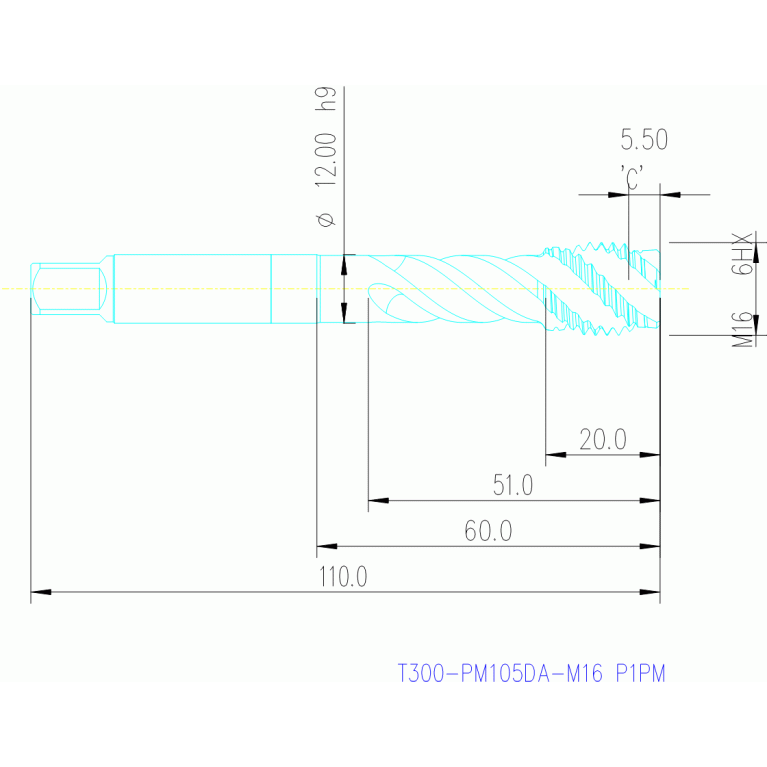

LS (Shank length)

42 mm

Materials

NOF (Flute count)

OAL (Overall length)

110 mm

PLCD (Gate diameter)

14 mm

TCL (Tap chamfer length)

4.619 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

16 mm

THFT (Thread form type)

THL (Thread cutting part length)

20 mm

THOD (Thread designation)

M16x2-6HX

TP (Thread pitch)

2 mm

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.082 kg
