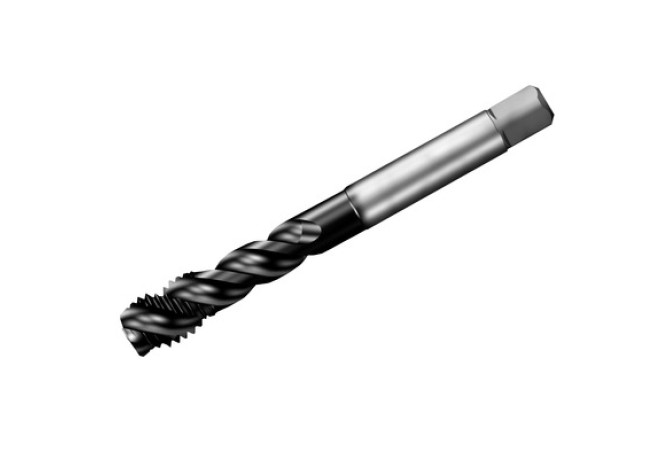

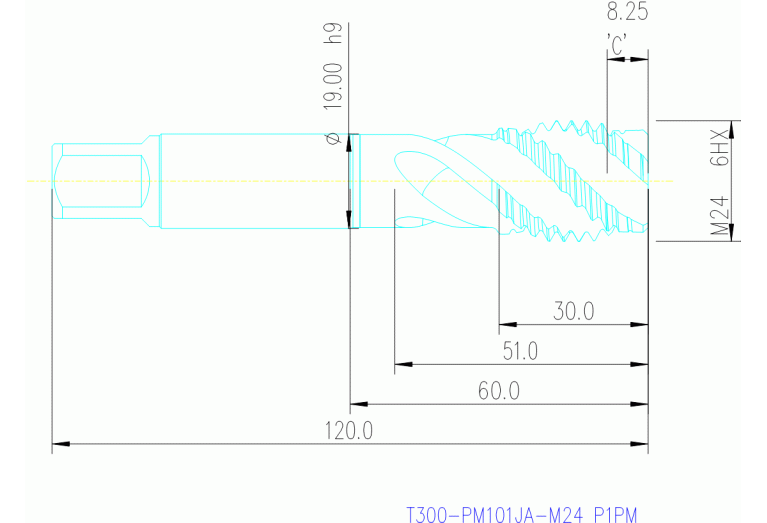

T300-PM101JA-M24 P1PM
T300-PM101JA-M24 P1PM
Артикул:
8056598
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiAlN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL01902105
DRVS (Drive size)
15 mm

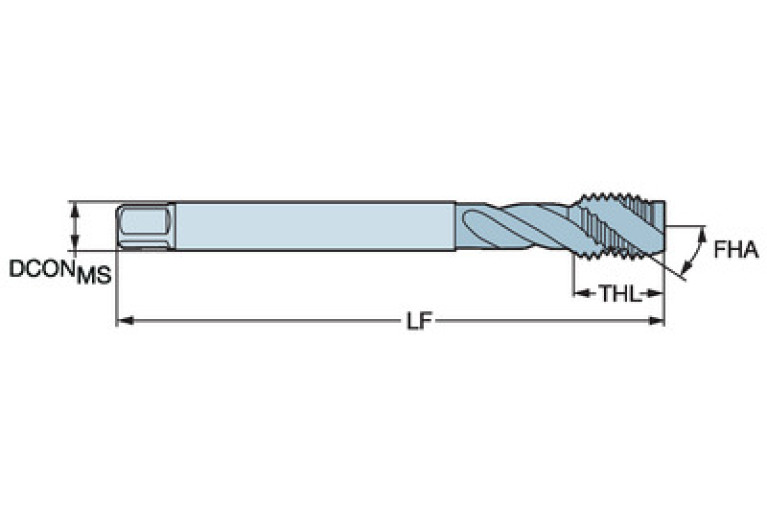

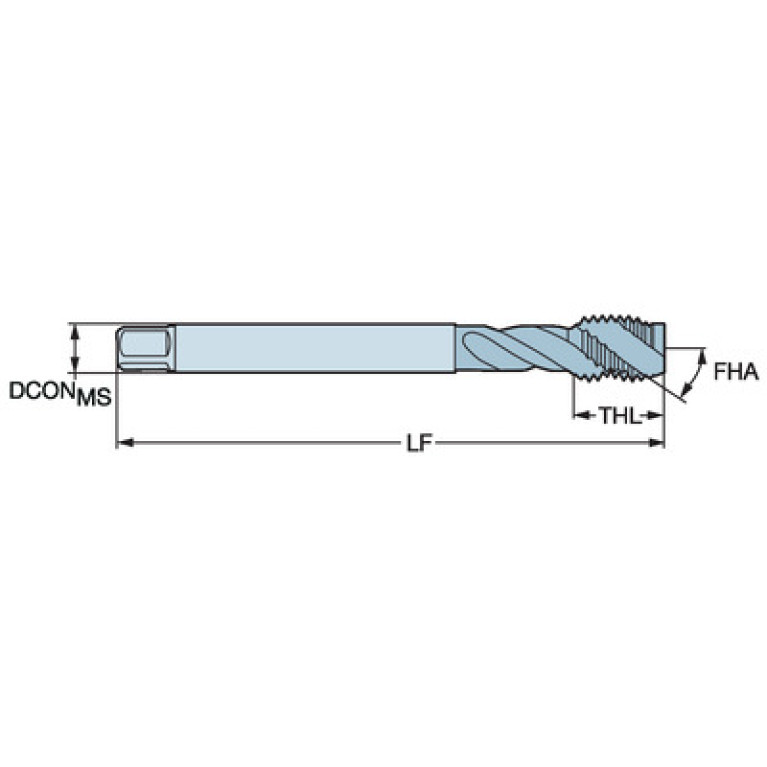

FHA (Flute helix angle)
48 Degree
FHH (Flute helix hand)
R - Hand of helix right
GRDMFG (Grade manufacturers designation)
P1PM
GRDPRIO (Standard designation of the grade main application)
HSS-E-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21G1900$$$$
LOC-03 ISO
ZYL21G1900$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0190
LOC-03 (DCONMS Diameter)
19 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01902105
LS (Shank length)
62 mm
Materials
P
NOF (Flute count)
4
OAL (Overall length)
120 mm
PLCD (Gate diameter)
21 mm
TCL (Tap chamfer length)
6.964 mm
TCTR (Thread tolerance class)
6HX
TD (Thread diameter)
24 mm
THFT (Thread form type)
M
THL (Thread cutting part length)
30 mm
THOD (Thread designation)
M24x3-6HX
TP (Thread pitch)
3 mm
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.24 kg
