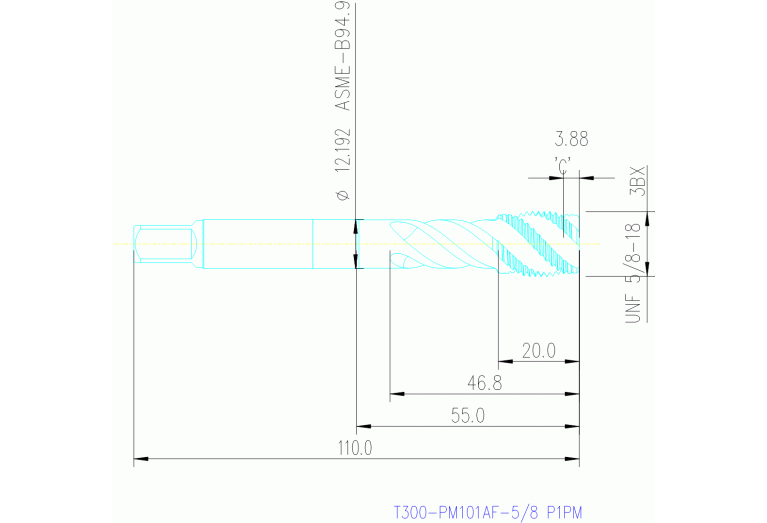

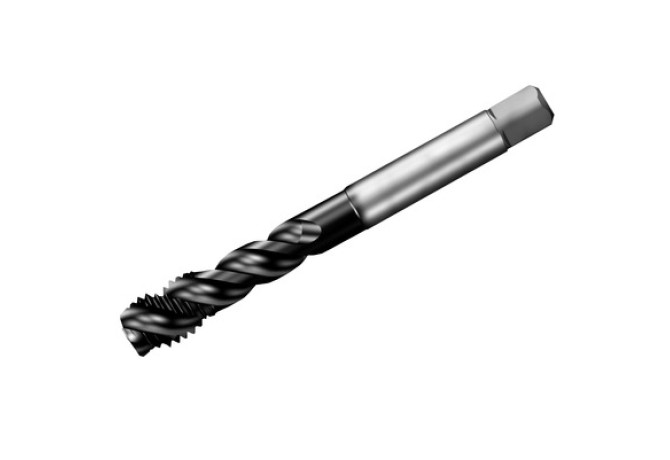

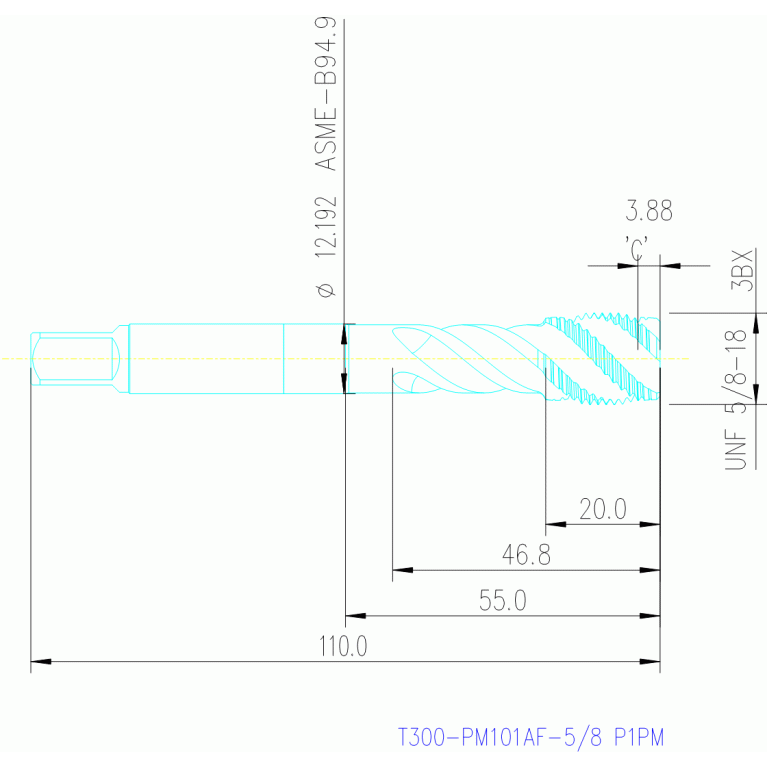

T300-PM101AF-5/8 P1PM
T300-PM101AF-5/8 P1PM
Артикул:
8055768
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiAlN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL04802125
DRVS (Drive size)
9.144 mm
FHA (Flute helix angle)
48 Degree
FHH (Flute helix hand)
R - Hand of helix right
GRDMFG (Grade manufacturers designation)
P1PM
GRDPRIO (Standard designation of the grade main application)
HSS-E-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R4800$$$$
LOC-03 ISO
ZYL21R4800$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0480

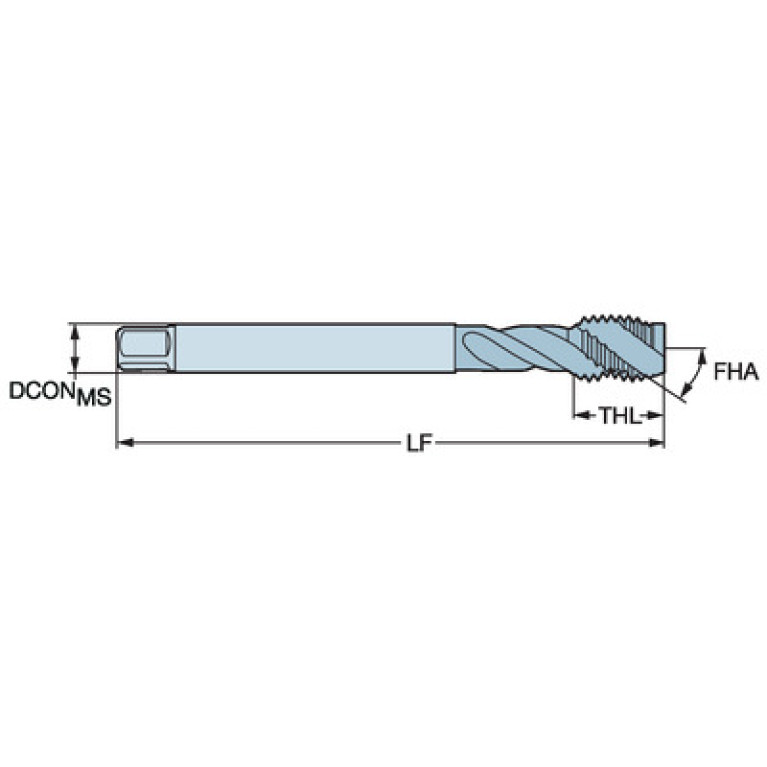

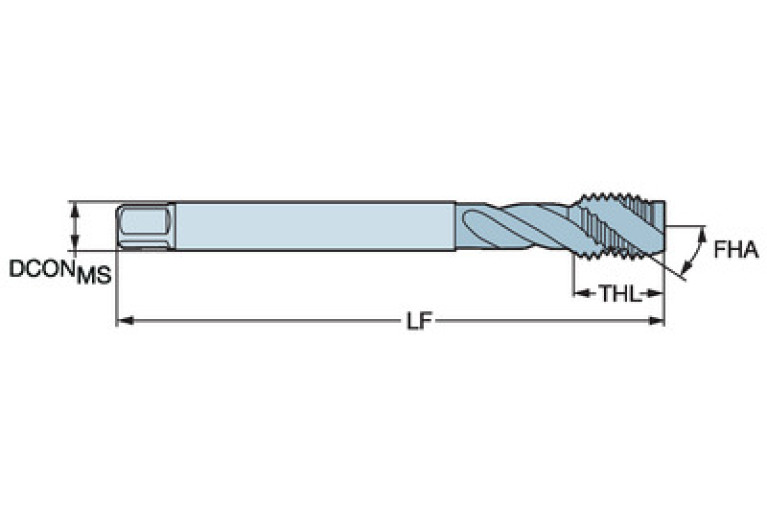

LOC-03 (DCONMS Diameter)
12.192 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04802125
LS (Shank length)
44.288 mm
Materials
P
NOF (Flute count)
4
OAL (Overall length)
110 mm
PLCD (Gate diameter)
14.5 mm
TCL (Tap chamfer length)
3.026 mm
TCTR (Thread tolerance class)
3BX
TD (Thread diameter)
15.875 mm
TDFR (Thread diameter nominal fraction)
5/8 in
THFT (Thread form type)
UNF
THL (Thread cutting part length)
20 mm
THOD (Thread designation)
UNF5/8-18-3BX
TP (Thread pitch)
1.411 mm
TPI (Threads per inch)
18 1/in
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.093 kg
