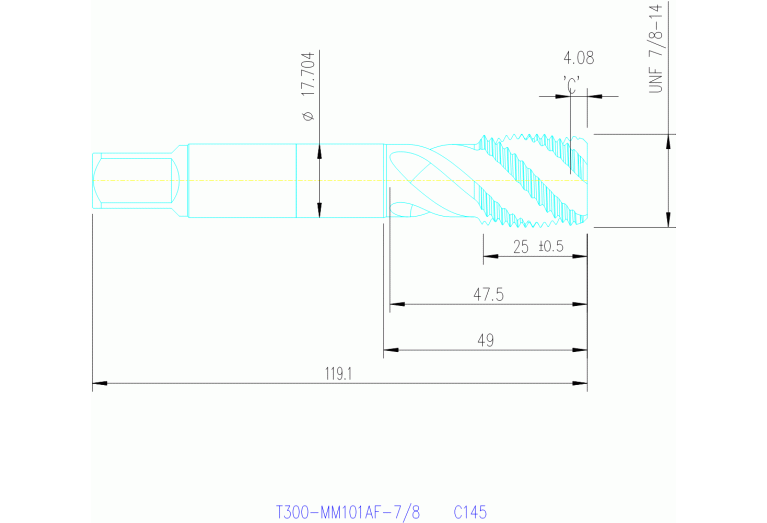

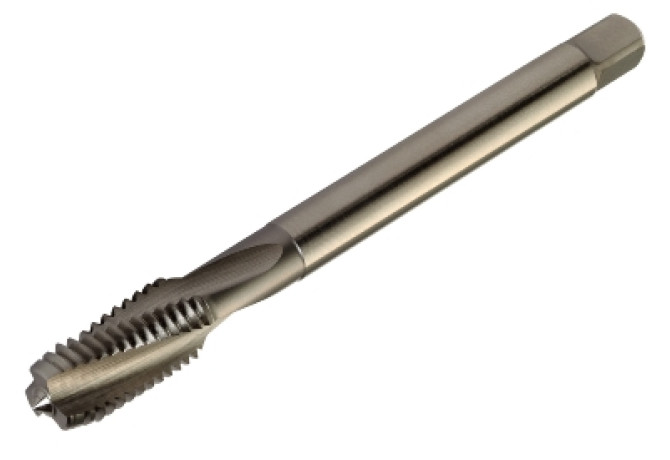

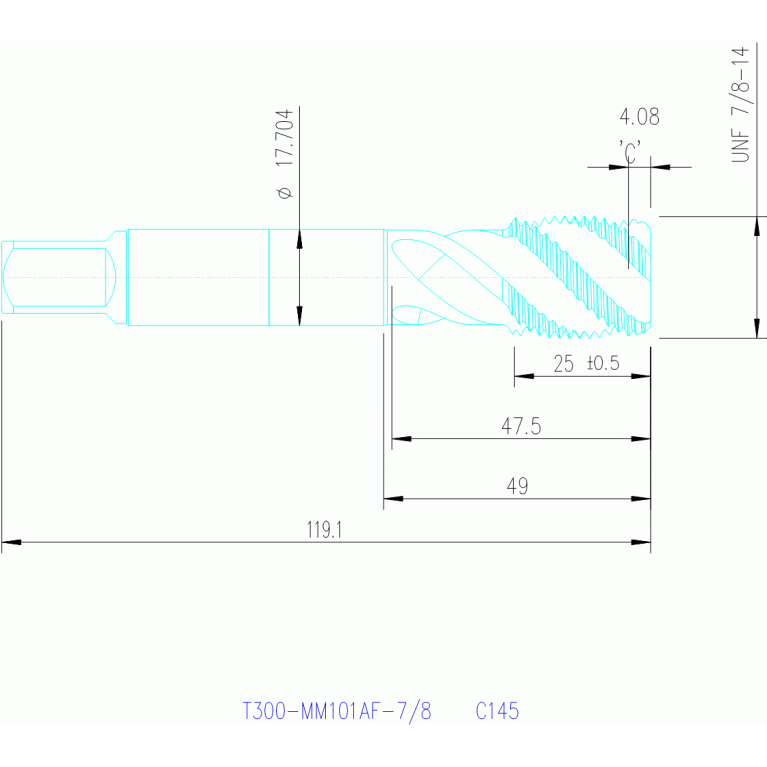

T300-MM101AF-7/8 C145
T300-MM101AF-7/8 C145
Артикул:
8248748
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD FeN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL06972125
DRVS (Drive size)
13.284 mm
FHA (Flute helix angle)
48 Degree
FHH (Flute helix hand)
R - Hand of helix right
GRDMFG (Grade manufacturers designation)
C145
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R6970$$$$
LOC-03 ISO
ZYL21R6970$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0697

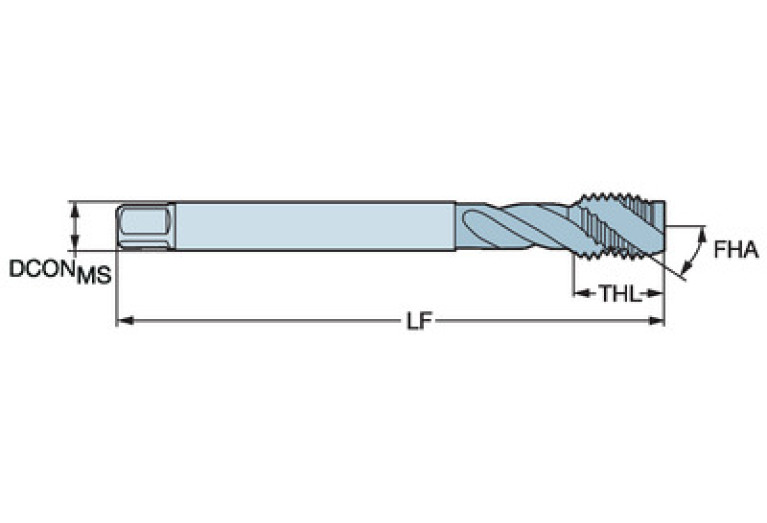

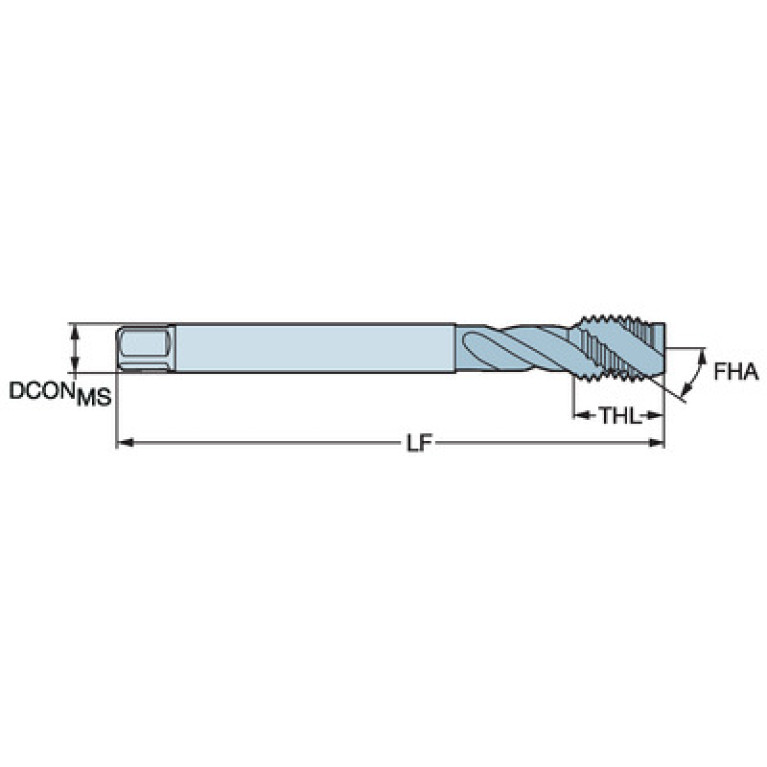

LOC-03 (DCONMS Diameter)
17.704 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06972125
LS (Shank length)
49.05 mm
Materials
M
NOF (Flute count)
4
OAL (Overall length)
119 mm
PLCD (Gate diameter)
20.4 mm
TCL (Tap chamfer length)
3.416 mm
TCTR (Thread tolerance class)
3B
TD (Thread diameter)
22.225 mm
TDFR (Thread diameter nominal fraction)
7/8 in
THFT (Thread form type)
UNF
THL (Thread cutting part length)
25 mm
THOD (Thread designation)
UNF7/8-14-3B
TPI (Threads per inch)
14 1/in
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.208 kg
