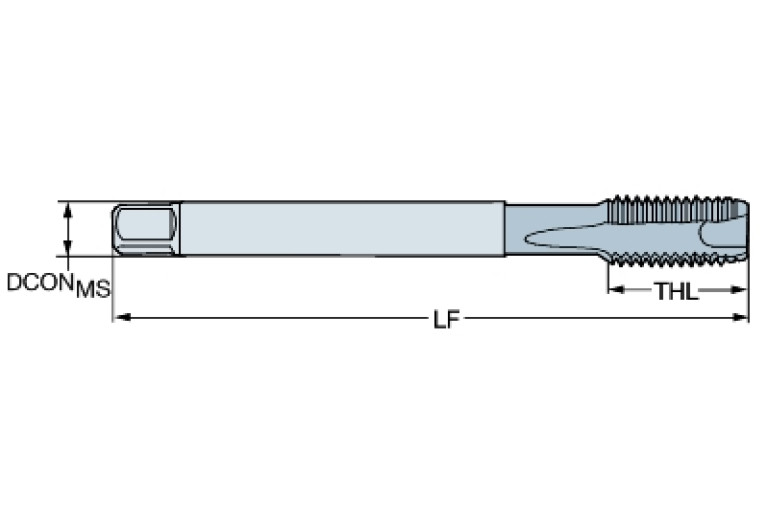

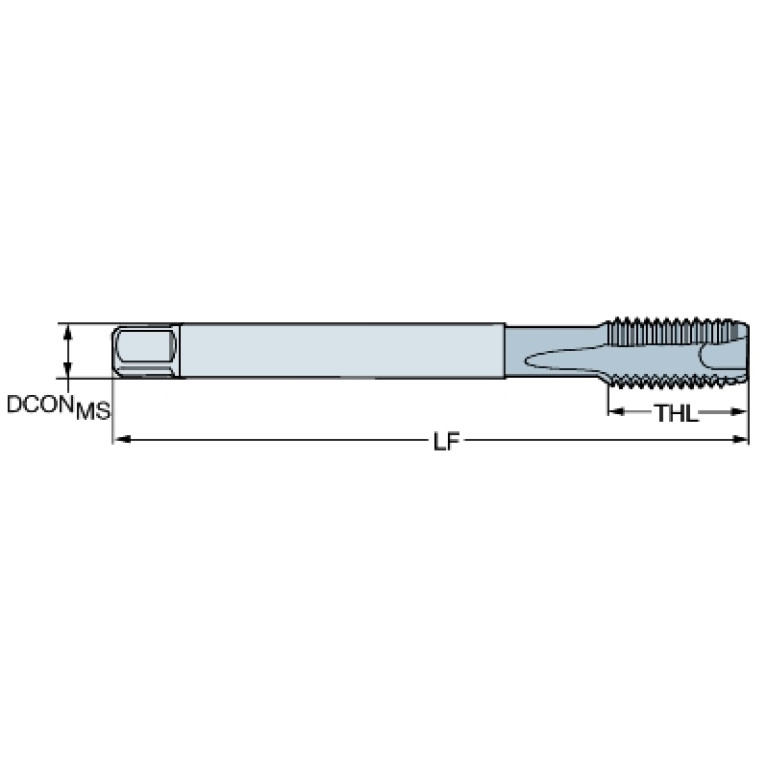

T200-XM101AE-9/16 C150
T200-XM101AE-9/16 C150
Артикул:
6967166
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL04292125
DRVS (Drive size)
8.179 mm
FHA (Flute helix angle)
0 Degree
FHH (Flute helix hand)
N - Hand of helix neutral
GRDMFG (Grade manufacturers designation)
C150
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R4290$$$$
LOC-03 ISO
ZYL21R4290$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0429
LOC-03 (DCONMS Diameter)
10.897 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04292125
LS (Shank length)
29.7 mm
Materials
P,M,K,N,S
NOF (Flute count)
3
OAL (Overall length)
110 mm
PLCD (Gate diameter)
12.2 mm
PLG (Plug style)
B - Kappa r 8°
TCL (Tap chamfer length)
9.599 mm
TCTR (Thread tolerance class)
3BX
TD (Thread diameter)
14.288 mm
TDFR (Thread diameter nominal fraction)
9/16 in
THFT (Thread form type)
UNC
THL (Thread cutting part length)
23.1 mm
THOD (Thread designation)
UNC9/16-12-3BX
TPI (Threads per inch)
12 1/in
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.077 kg
