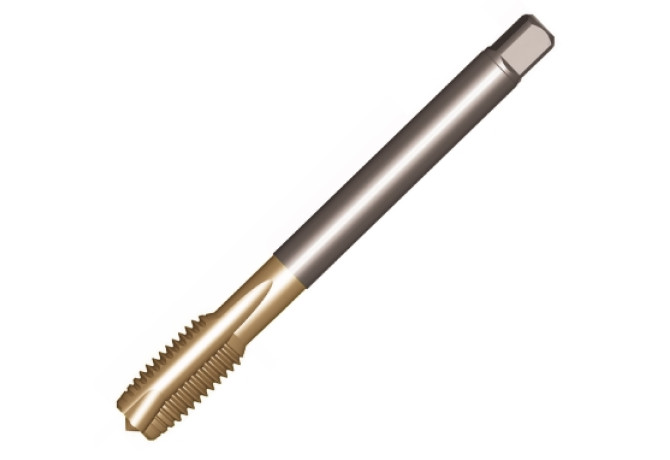

T200-XM100DB-M14X100C150
T200-XM100DB-M14X100C150
Артикул:
6635062
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL01102105
DRVS (Drive size)
9 mm
FHA (Flute helix angle)
0 Degree
FHH (Flute helix hand)
N - Hand of helix neutral
GRDMFG (Grade manufacturers designation)
C150
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21G1100h$09
LOC-03 ISO
ZYL21G1100h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0110

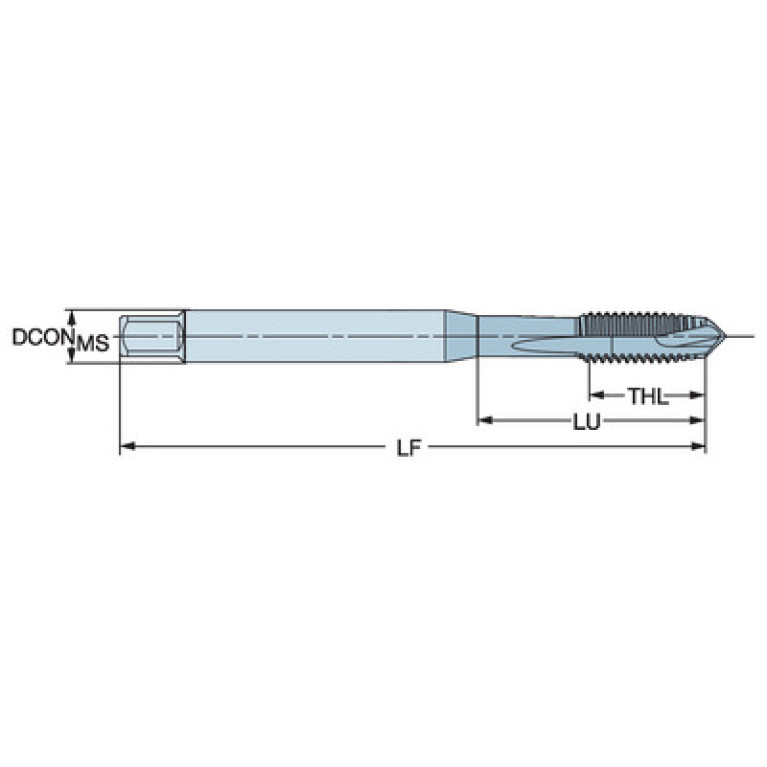

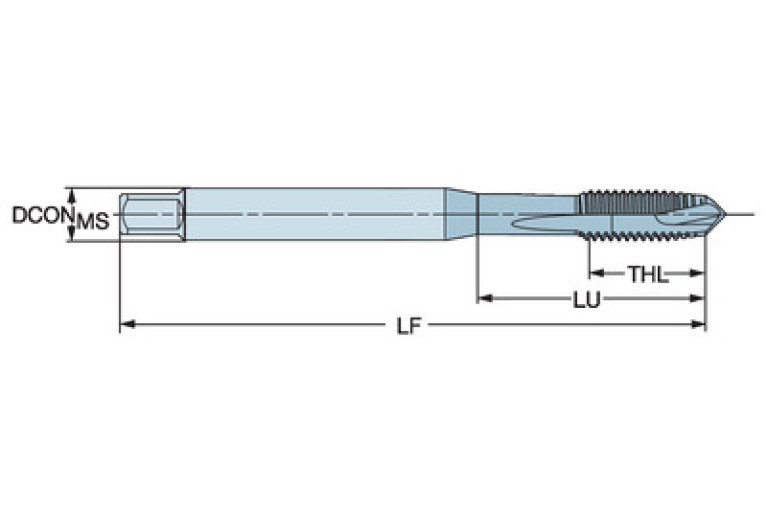

LOC-03 (DCONMS Diameter)
11 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102105
LS (Shank length)
29 mm
Materials
P,M,K,N,S
NOF (Flute count)
3
OAL (Overall length)
100 mm
PLCD (Gate diameter)
13 mm
PLG (Plug style)
B - Kappa r 8°
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
4.483 mm
TCTR (Thread tolerance class)
6H
TD (Thread diameter)
14 mm
THFT (Thread form type)
MF
THL (Thread cutting part length)
21 mm
THOD (Thread designation)
MF14x1-6H
TP (Thread pitch)
1 mm
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.074 kg
