Главная Инструменты 301-01 - Thread cutting tap with offset shank T200-PM101JB-M18X150P1PM

T200-PM101JB-M18X150P1PM

Артикул: 8057411

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01402105

DRVS (Drive size)

11 mm

FHA (Flute helix angle)

0 Degree

FHH (Flute helix hand)

N - Hand of helix neutral

GRDMFG (Grade manufacturers designation)

P1PM

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21G1400$$$$

LOC-03 ISO

ZYL21G1400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0140

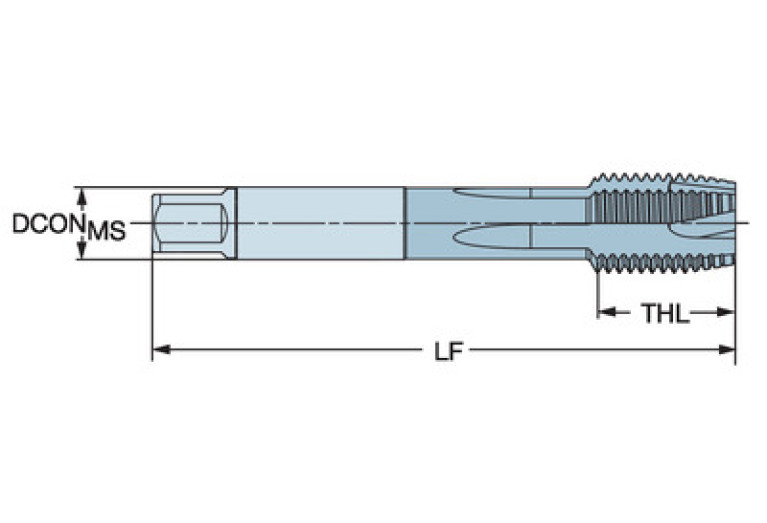

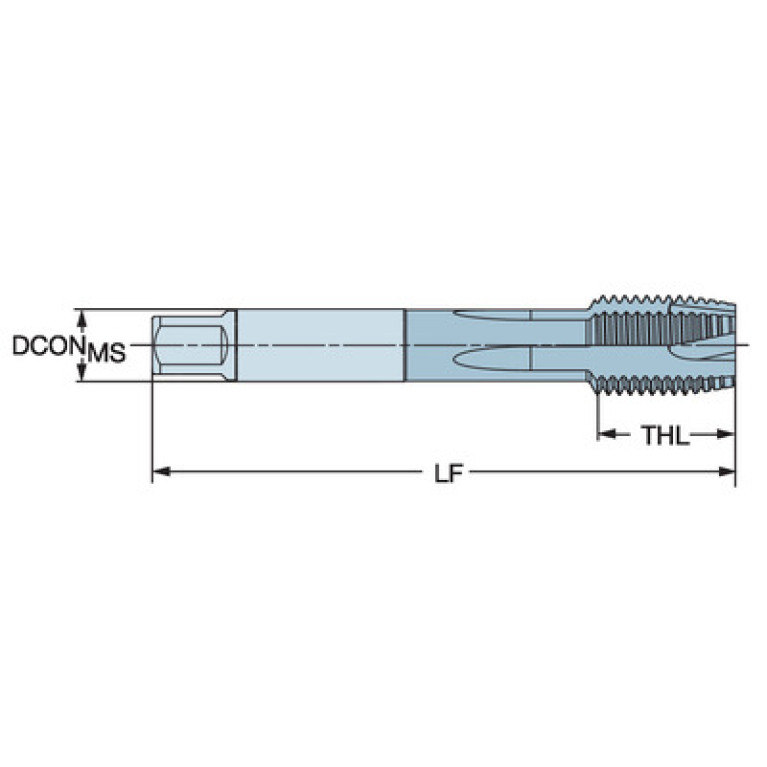

LOC-03 (DCONMS Diameter)

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01402105

LS (Shank length)

44 mm

Materials

NOF (Flute count)

OAL (Overall length)

95 mm

PLCD (Gate diameter)

16.5 mm

PLG (Plug style)

B - Kappa r 8°

TCL (Tap chamfer length)

6.446 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

18 mm

THFT (Thread form type)

THL (Thread cutting part length)

24 mm

THOD (Thread designation)

MF18x1.5-6HX

TP (Thread pitch)

1.5 mm

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.116 kg
