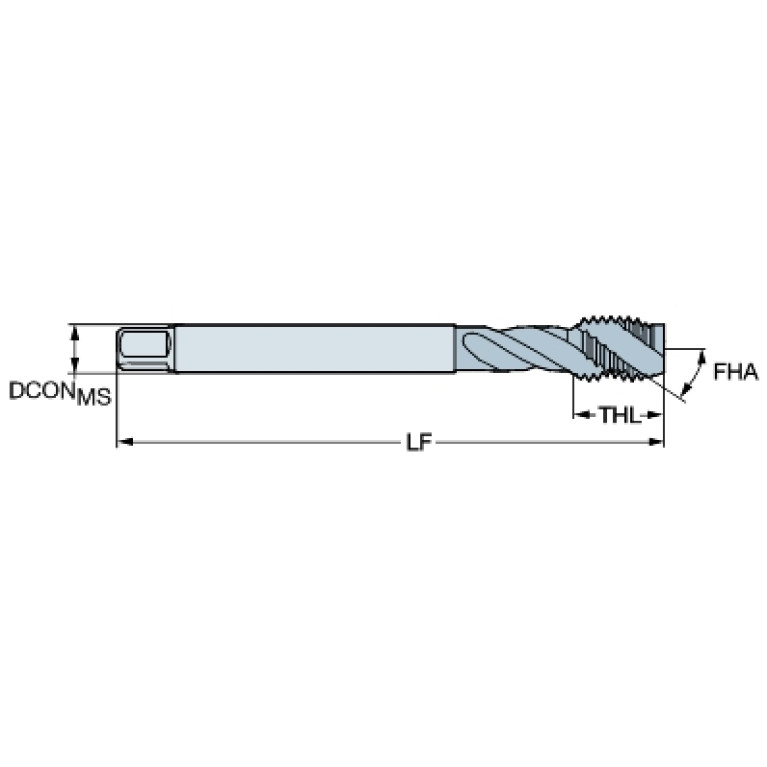

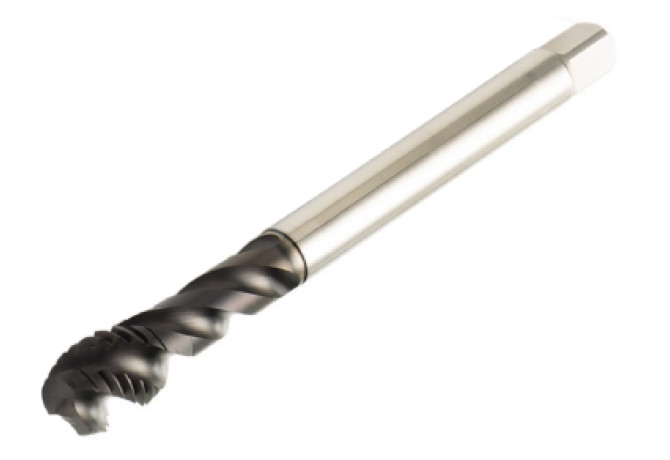

Главная Инструменты 301-01 - Thread cutting tap with offset shank EX13PM22X1.5

EX13PM22X1.5

Артикул: 6162466

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL01802105

DRVS (Drive size)

14.5 mm

FHA (Flute helix angle)

48 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

T4I1

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21G1800h$09

LOC-03 ISO

ZYL21G1800h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0180

LOC-03 (DCONMS Diameter)

18 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01802105

LS (Shank length)

47 mm

Materials

NOF (Flute count)

OAL (Overall length)

125 mm

PLCD (Gate diameter)

20.5 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

3.006 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

22 mm

THFT (Thread form type)

THL (Thread cutting part length)

17 mm

THOD (Thread designation)

MF22x1.5-6HX

TP (Thread pitch)

1.5 mm

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.219 kg
