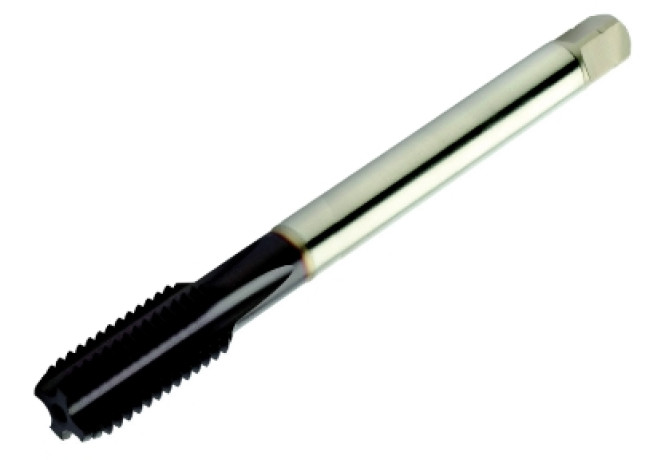

E463M12
E463M12
Артикул:
6183006
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
COATN (Coating)
PVD TIALN
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL00902115
DRVS (Drive size)
7 mm
FHA (Flute helix angle)
0 Degree
FHH (Flute helix hand)
N - Hand of helix neutral
GRDMFG (Grade manufacturers designation)
T4J8
GRDPRIO (Standard designation of the grade main application)
HSS-E-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21F9000h$09
LOC-03 ISO
ZYL21F9000h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0090

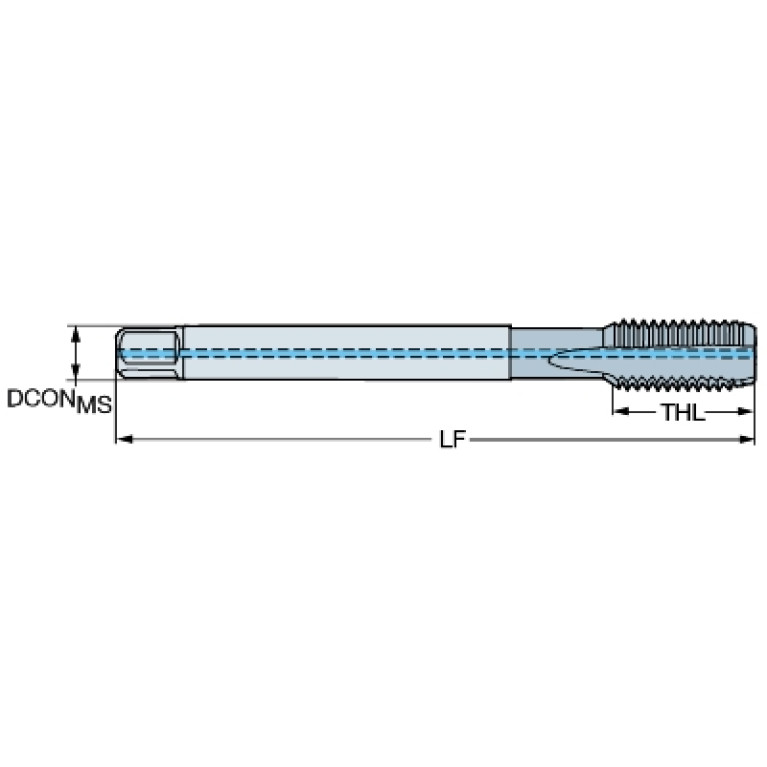

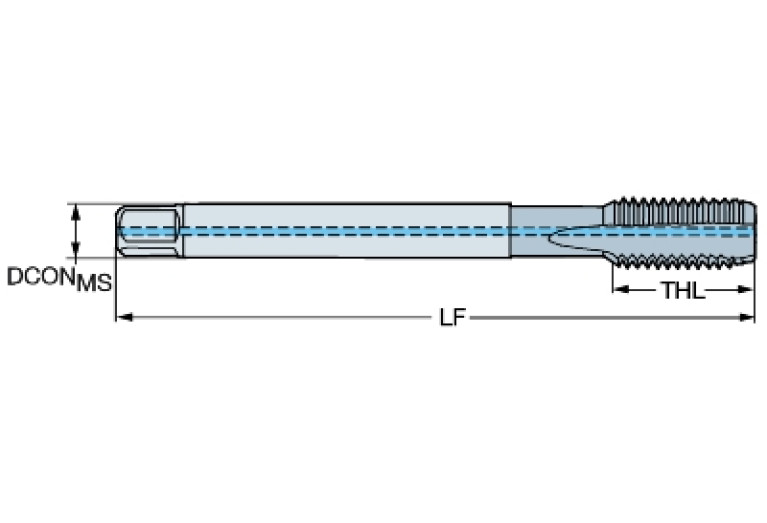

LOC-03 (DCONMS Diameter)
9 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902115
LS (Shank length)
27 mm
NOF (Flute count)
4

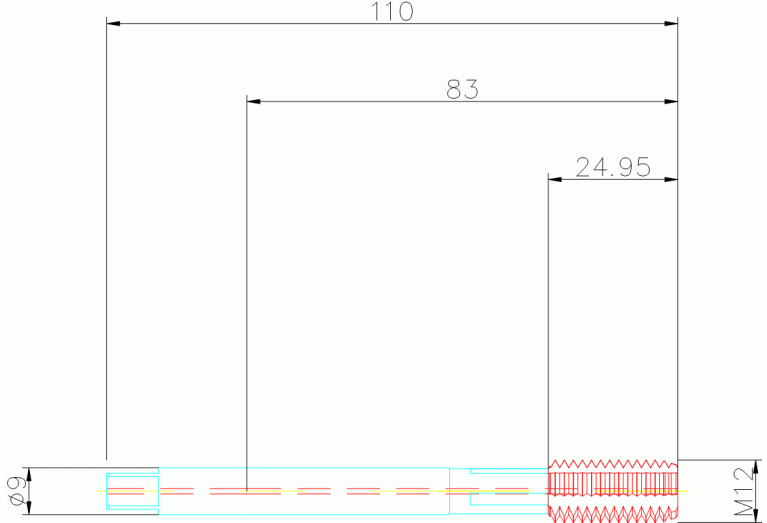

OAL (Overall length)
110 mm
OVERHANG LENGTH (Overhang length)
83 mm
PLCD (Gate diameter)
10.2 mm
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
3.172 mm
TCTR (Thread tolerance class)
6HX
TD (Thread diameter)
12 mm
THFT (Thread form type)
M
THL (Thread cutting part length)
24 mm
THOD (Thread designation)
M12x1.75-6HX
TP (Thread pitch)
1.75 mm
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.057 kg
