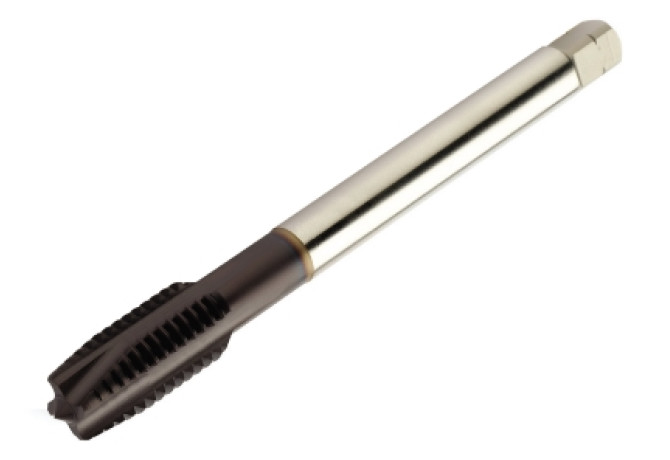

E326M20
E326M20
Артикул:
6182506
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiAlN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
ZYL01602105
DRVS (Drive size)
12 mm
FHA (Flute helix angle)
0 Degree
FHH (Flute helix hand)
N - Hand of helix neutral
GRDMFG (Grade manufacturers designation)
T4J8
GRDPRIO (Standard designation of the grade main application)
HSS-E-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21G1600h$09
LOC-03 ISO
ZYL21G1600h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0160

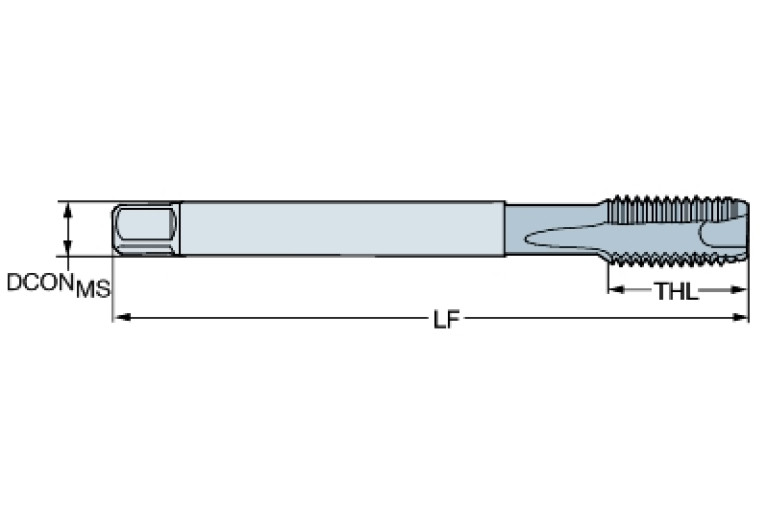

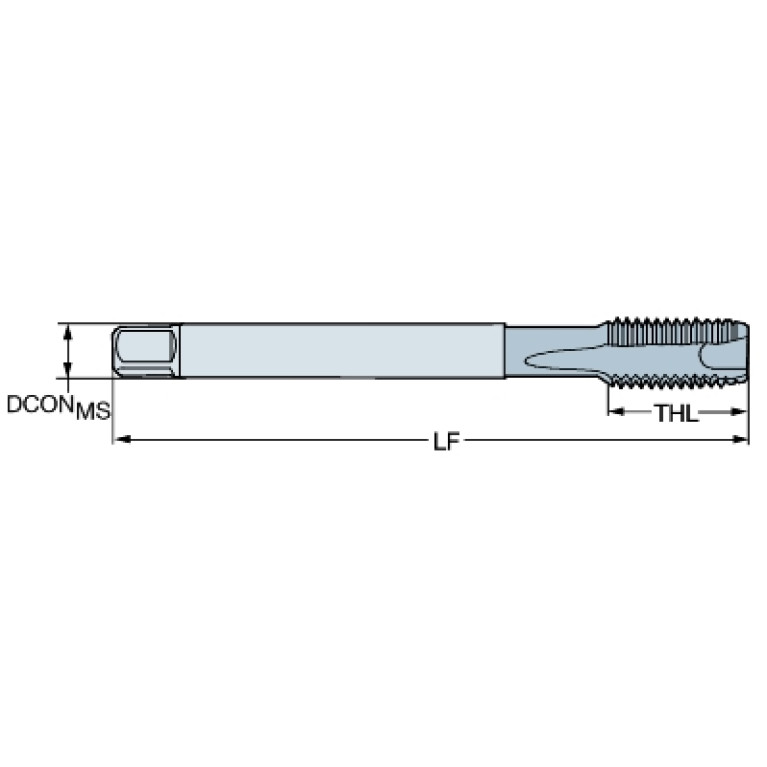

LOC-03 (DCONMS Diameter)
16 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602105
LS (Shank length)
45 mm
Materials
P
NOF (Flute count)
4

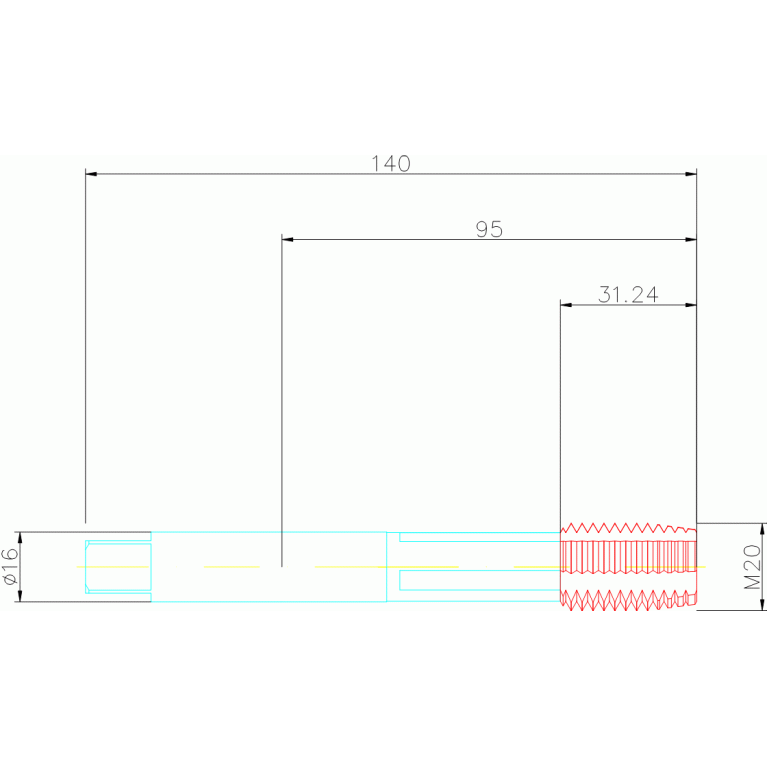

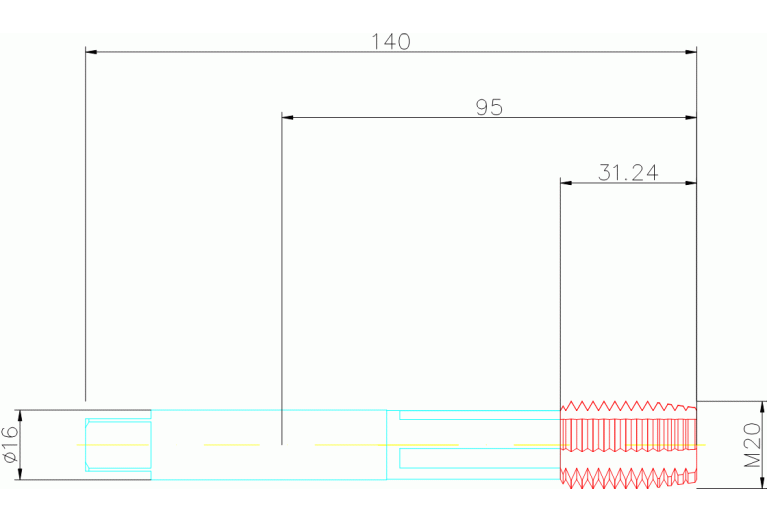

OAL (Overall length)
140 mm
PLCD (Gate diameter)
17.5 mm
PLG (Plug style)
B - Kappa r 8°
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
11.105 mm
TCTR (Thread tolerance class)
6H
TD (Thread diameter)
20 mm
THFT (Thread form type)
M
THL (Thread cutting part length)
30 mm
THOD (Thread designation)
M20x2.5-6H
TP (Thread pitch)
2.5 mm
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.214 kg
