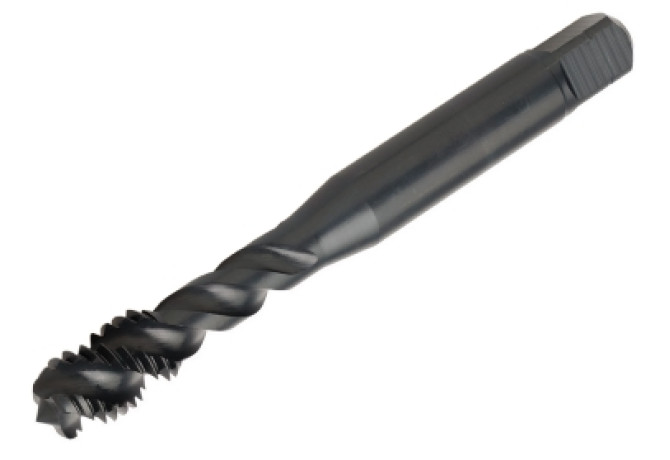

Главная Инструменты 301-01 - Thread cutting tap with offset shank E008M14

E008M14

Артикул: 6181216

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

Constant Constant

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL04292125

FHA (Flute helix angle)

45 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

HSS-PM Con

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R4290h$09

LOC-03 ISO

ZYL21R4290h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0429

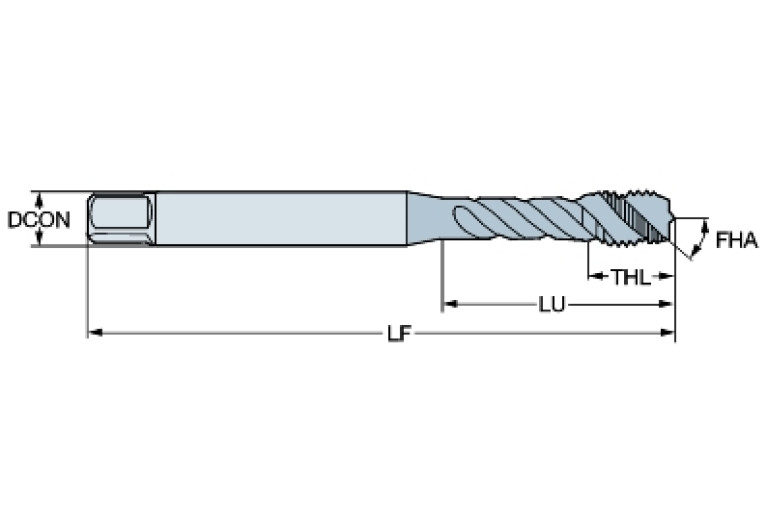

LOC-03 (DCONMS Diameter)

10.8966 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04292125

LS (Shank length)

29.7 mm

NOF (Flute count)

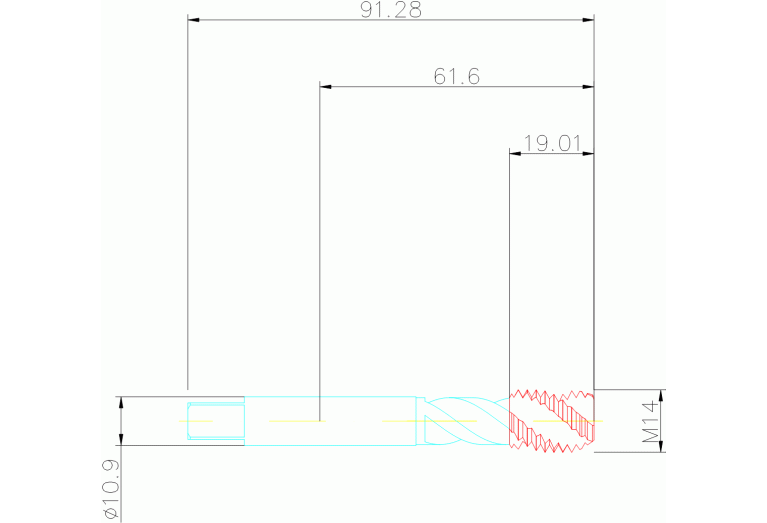

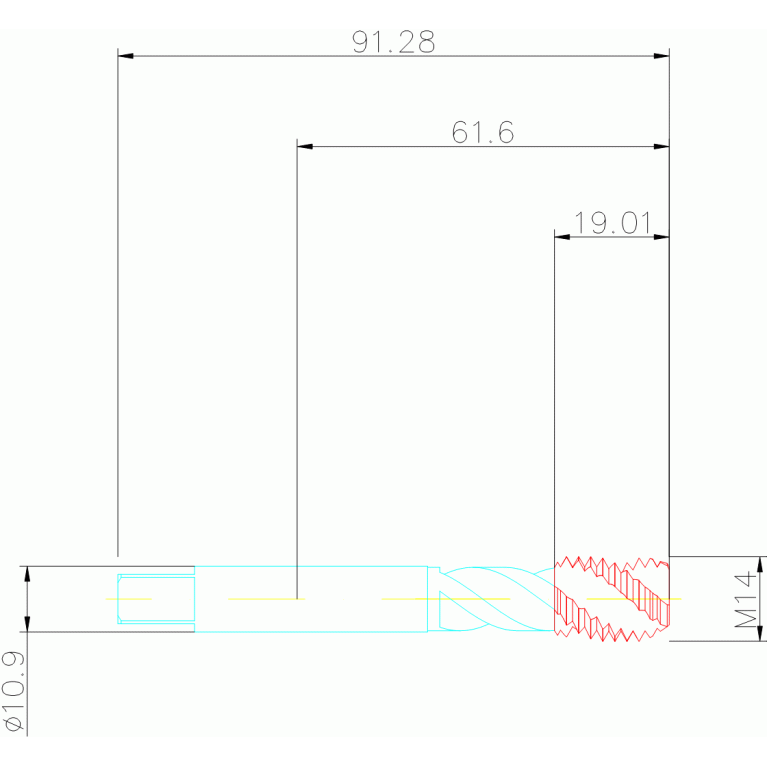

OAL (Overall length)

91.281 mm

OVERHANG LENGTH (Overhang length)

61.6 mm

PLCD (Gate diameter)

12 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

4.14 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

14 mm

THFT (Thread form type)

THL (Thread cutting part length)

18 mm

THOD (Thread designation)

M14x2-6H

TP (Thread pitch)

2 mm

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.061 kg
