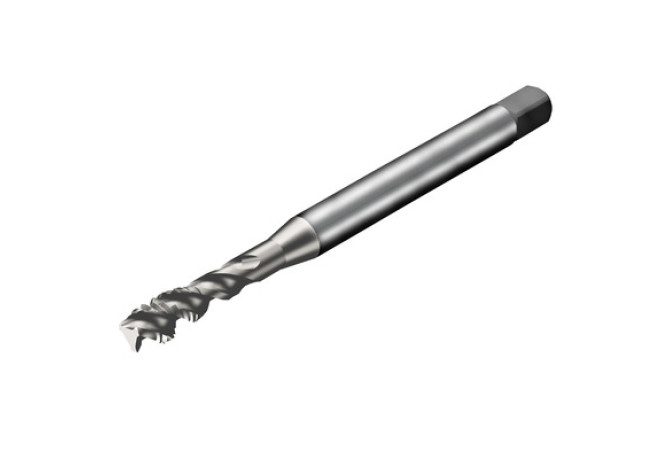

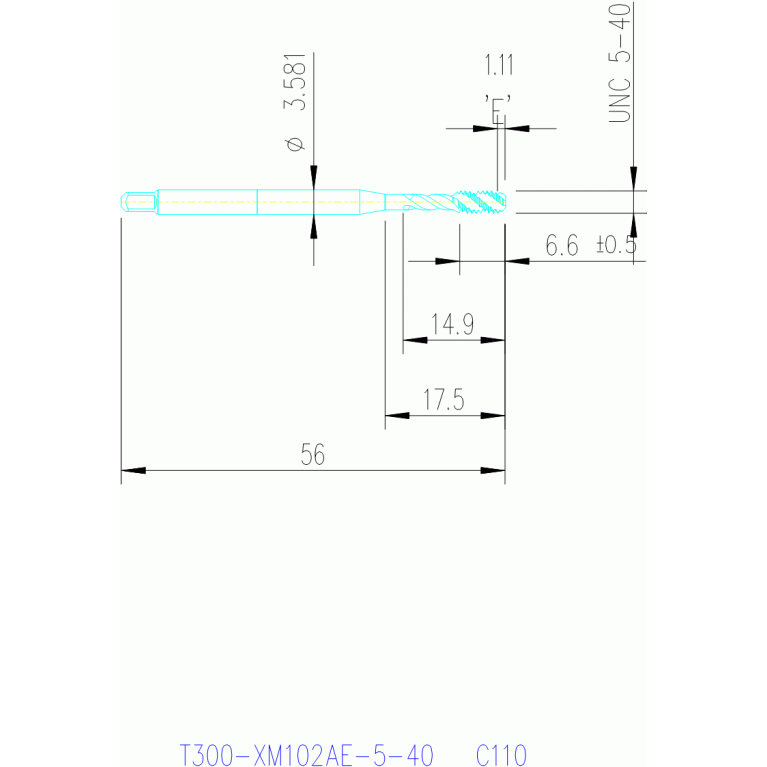

T300-XM102AE-5-40 C150
T300-XM102AE-5-40 C150
Артикул:
6966831
В наличии
0 ₽

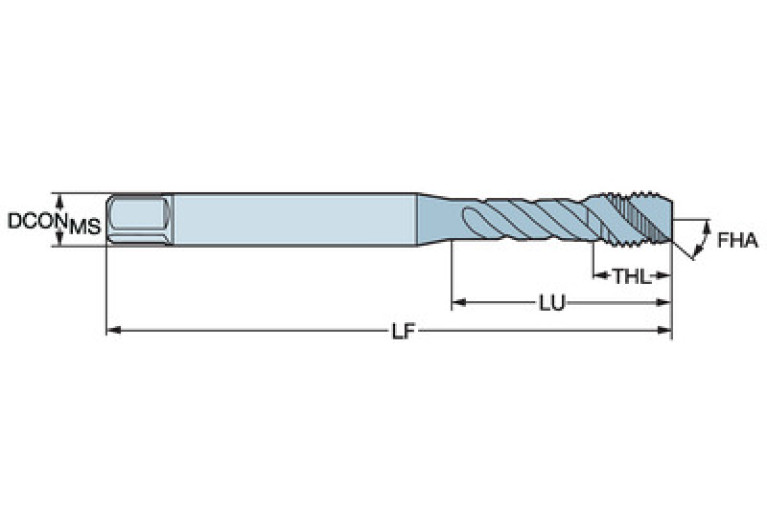

Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL01412125
DN (Neck diameter)
2.3 mm
DRVS (Drive size)
2.794 mm
FHA (Flute helix angle)
45 Degree
FHH (Flute helix hand)
R - Hand of helix right
GRDMFG (Grade manufacturers designation)
C150
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R1410$$$$
LDRED (Neck length)
17.5 mm
LOC-03 ISO
ZYL21R1410$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0141
LOC-03 (DCONMS Diameter)
3.581 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01412125
LS (Shank length)
19.763 mm
Materials
P,M,K,N,S
NOF (Flute count)
3
OAL (Overall length)
56 mm
PLCD (Gate diameter)
2.65 mm
TCL (Tap chamfer length)
1.106 mm
TCTR (Thread tolerance class)
3BX
TD (Thread diameter)
3.175 mm
TDZ (Thread diameter size)
5
THFT (Thread form type)
UNC
THL (Thread cutting part length)
6.6 mm
THOD (Thread designation)
UNC5-40-3BX
TPI (Threads per inch)
40 1/in
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.006 kg
