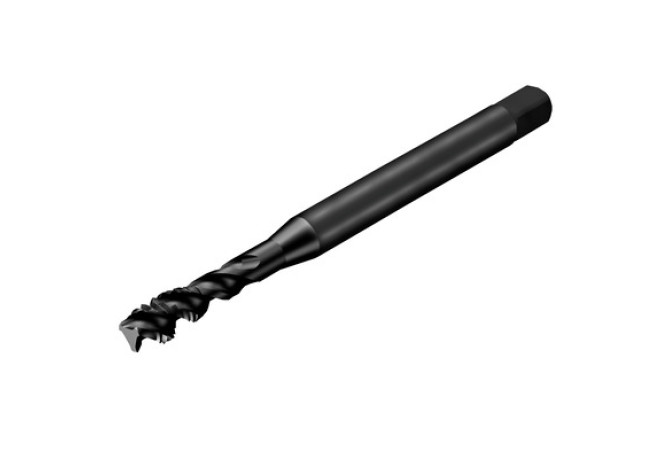

T300-XM102AB-M8X100 C145
T300-XM102AB-M8X100 C145
Артикул:
6966882
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD FeN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL03182125
DN (Neck diameter)
5.69 mm
DRVS (Drive size)
6.045 mm

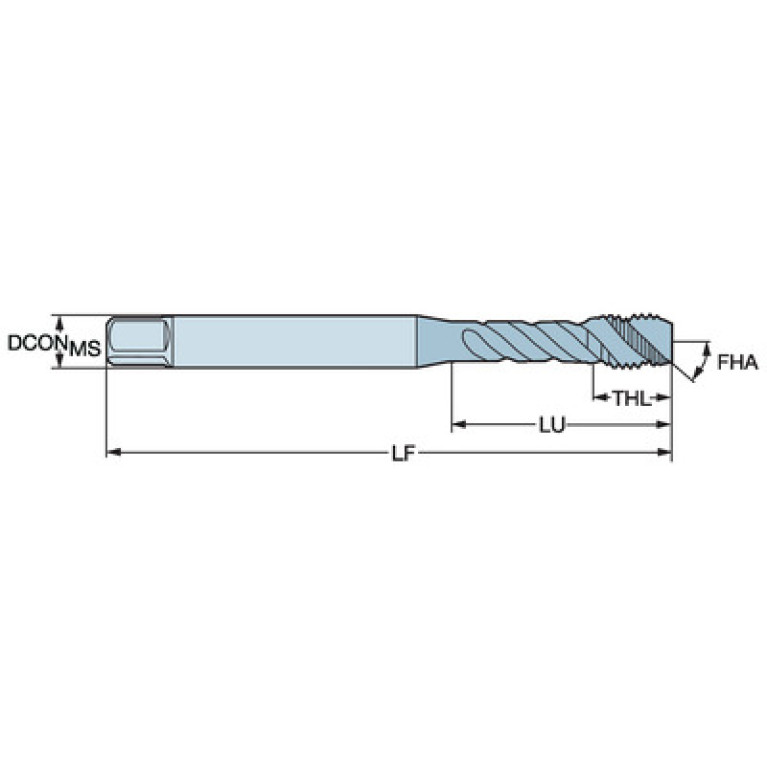

FHA (Flute helix angle)
45 Degree
FHH (Flute helix hand)
R - Hand of helix right
GRDMFG (Grade manufacturers designation)
C145
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R3180$$$$
LDRED (Neck length)
33.5 mm
LOC-03 ISO
ZYL21R3180$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0318
LOC-03 (DCONMS Diameter)
8.077 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03182125
LS (Shank length)
24.525 mm
Materials
P,M,K,N,S
NOF (Flute count)
3
OAL (Overall length)
90 mm
PLCD (Gate diameter)
7 mm
TCL (Tap chamfer length)
1.535 mm
TCTR (Thread tolerance class)
6H
TD (Thread diameter)
8 mm
THFT (Thread form type)
MF
THL (Thread cutting part length)
12.8 mm
THOD (Thread designation)
MF8x1-6H
TP (Thread pitch)
1 mm
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.029 kg
