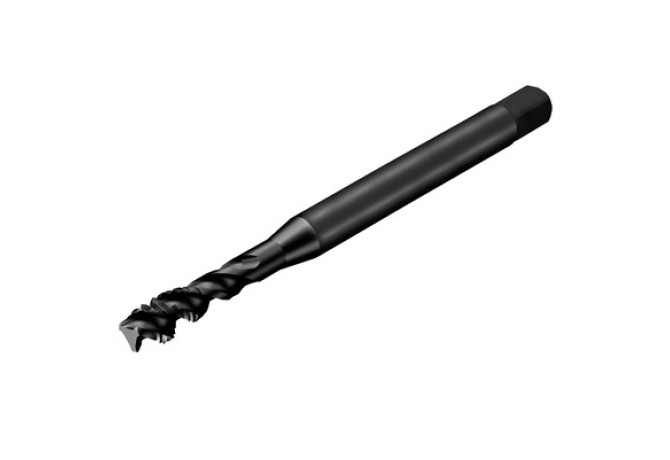

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank T300-XM100DF-10-32 C145

T300-XM100DF-10-32 C145

Артикул: 6539505

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD FeN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00602105

DN (Neck diameter)

3.62 mm

DRVS (Drive size)

4.9 mm

FHA (Flute helix angle)

45 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

C145

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F6000h$09

LDRED (Neck length)

25 mm

LOC-03 ISO

ZYL21F6000h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0060

LOC-03 (DCONMS Diameter)

6 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602105

LS (Shank length)

23 mm

Materials

P,M,K

NOF (Flute count)

OAL (Overall length)

70 mm

PLCD (Gate diameter)

4.1 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

1.623 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

4.826 mm

TDZ (Thread diameter size)

THFT (Thread form type)

UNF

THL (Thread cutting part length)

7.3 mm

THOD (Thread designation)

UNF10-32-2B

TPI (Threads per inch)

32 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.014 kg
