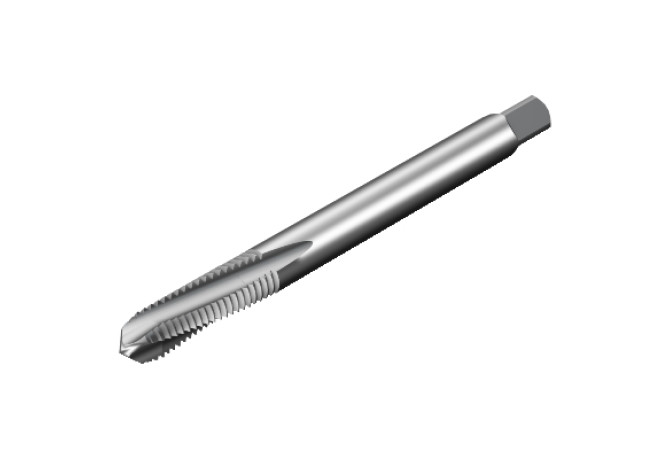

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank T300-SD100DE-5/16 D150

T300-SD100DE-5/16 D150

Артикул: 7382673

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00802105

DRVS (Drive size)

6.2 mm

FHA (Flute helix angle)

25 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

D150

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F8000$$$$

LDRED (Neck length)

29.5 mm

LOC-03 ISO

ZYL21F8000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0080

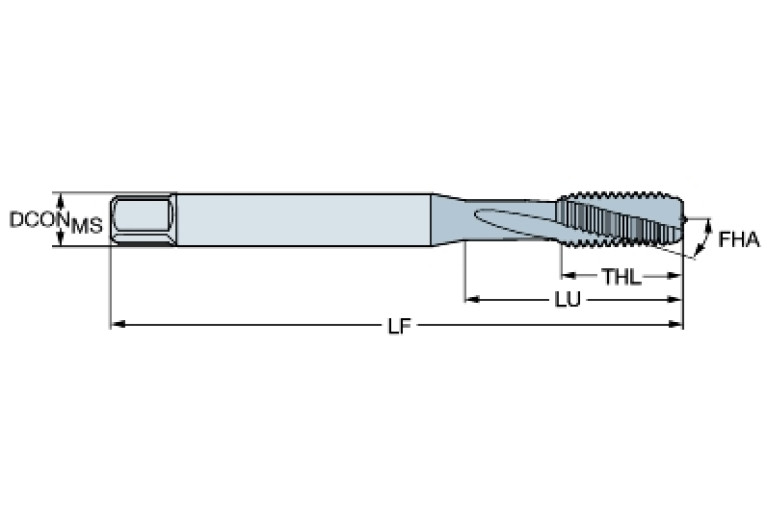

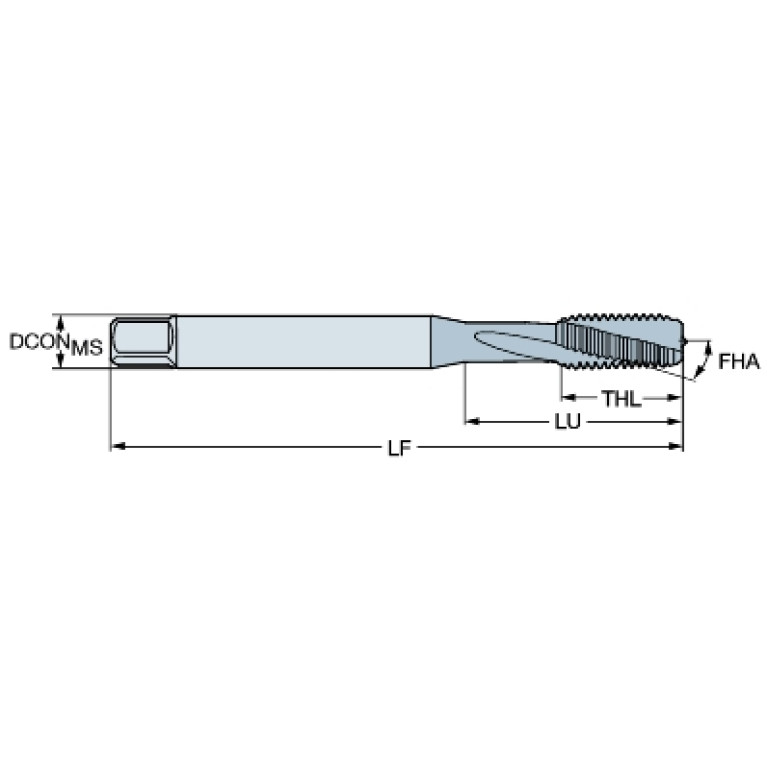

LOC-03 (DCONMS Diameter)

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802105

LS (Shank length)

24 mm

Materials

NOF (Flute count)

OAL (Overall length)

91.57 mm

PLCD (Gate diameter)

6.6 mm

TCL (Tap chamfer length)

3.286 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

7.938 mm

TDFR (Thread diameter nominal fraction)

5/16 in

THFT (Thread form type)

UNC

THL (Thread cutting part length)

18 mm

THOD (Thread designation)

UNC5/16-18-2B

TPI (Threads per inch)

18 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.035 kg
