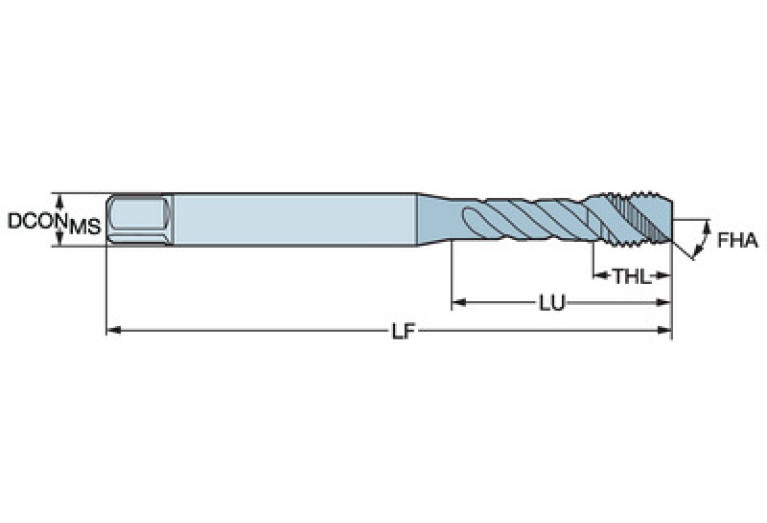

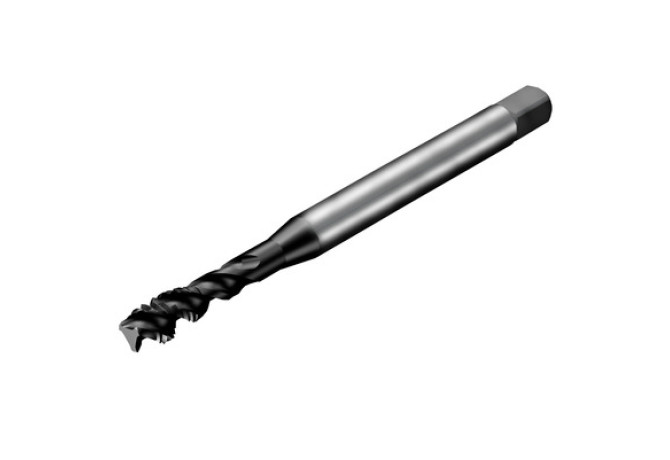

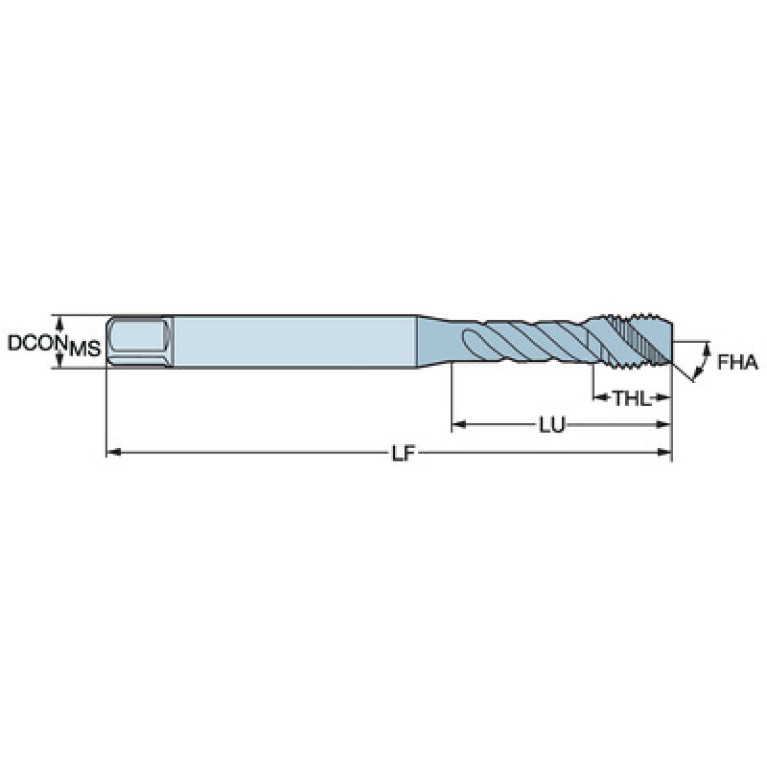

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank T300-PM100AE-6-32 P1PM

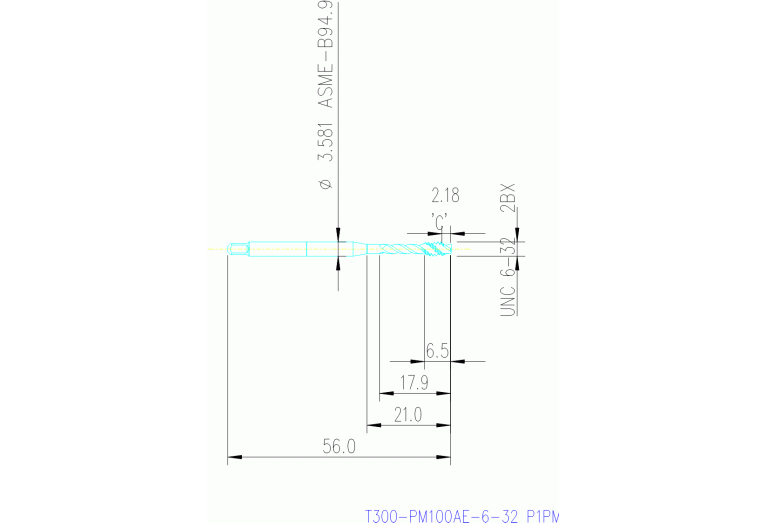

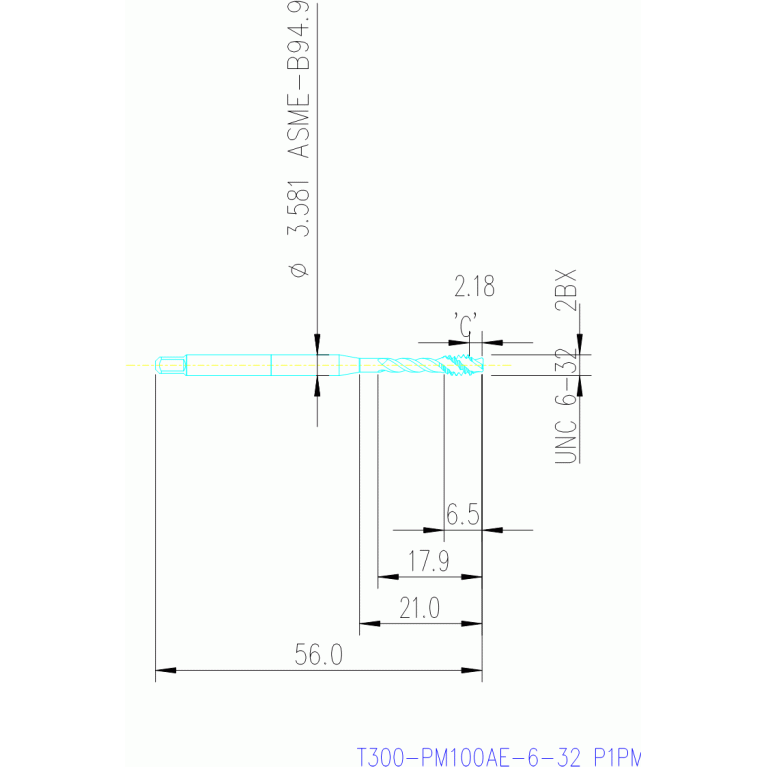

T300-PM100AE-6-32 P1PM

Артикул: 8056265

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01412125

DRVS (Drive size)

2.794 mm

FHA (Flute helix angle)

48 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

P1PM

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R1410$$$$

LDRED (Neck length)

21 mm

LOC-03 ISO

ZYL21R1410$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0141

LOC-03 (DCONMS Diameter)

3.581 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01412125

LS (Shank length)

19.763 mm

Materials

NOF (Flute count)

OAL (Overall length)

56 mm

PLCD (Gate diameter)

2.85 mm

TCL (Tap chamfer length)

2.053 mm

TCTR (Thread tolerance class)

2BX

TD (Thread diameter)

3.505 mm

TDZ (Thread diameter size)

THFT (Thread form type)

UNC

THL (Thread cutting part length)

6.5 mm

THOD (Thread designation)

UNC6-32-2BX

TP (Thread pitch)

0.794 mm

TPI (Threads per inch)

32 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.005 kg
