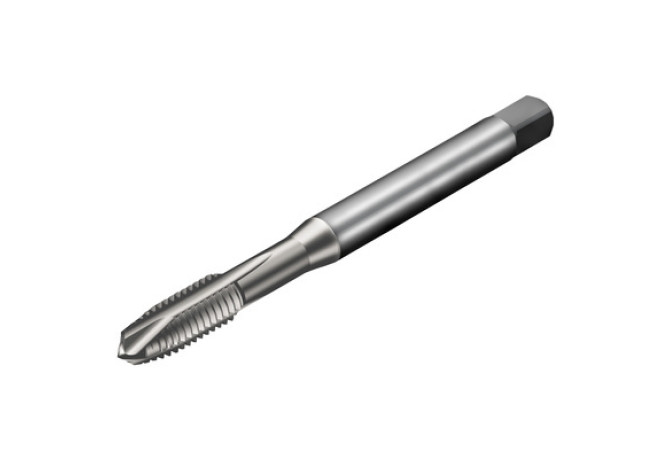

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank T200-XM100DA-M2.5 C150

T200-XM100DA-M2.5 C150

Артикул: 6634955

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00282105

DN (Neck diameter)

1.95 mm

DRVS (Drive size)

2.1 mm

FHA (Flute helix angle)

0 Degree

FHH (Flute helix hand)

N - Hand of helix neutral

GRDMFG (Grade manufacturers designation)

C150

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F2800h$09

LDRED (Neck length)

12.5 mm

LOC-03 ISO

ZYL21F2800h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0028

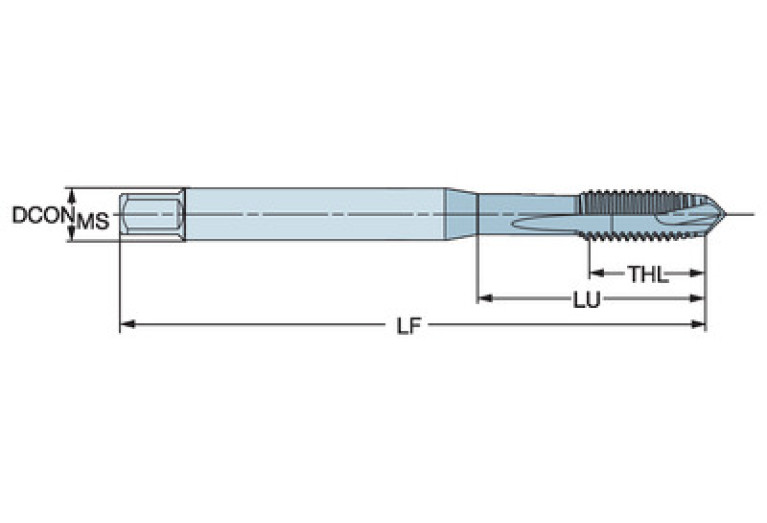

LOC-03 (DCONMS Diameter)

2.8 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00282105

LS (Shank length)

20 mm

Materials

P,M,K,N,S

NOF (Flute count)

OAL (Overall length)

51.03 mm

PLCD (Gate diameter)

2.05 mm

PLG (Plug style)

B - Kappa r 8°

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

1.773 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

2.5 mm

THFT (Thread form type)

THL (Thread cutting part length)

8 mm

THOD (Thread designation)

M2.5x0.45-6H

TP (Thread pitch)

0.45 mm

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.005 kg
