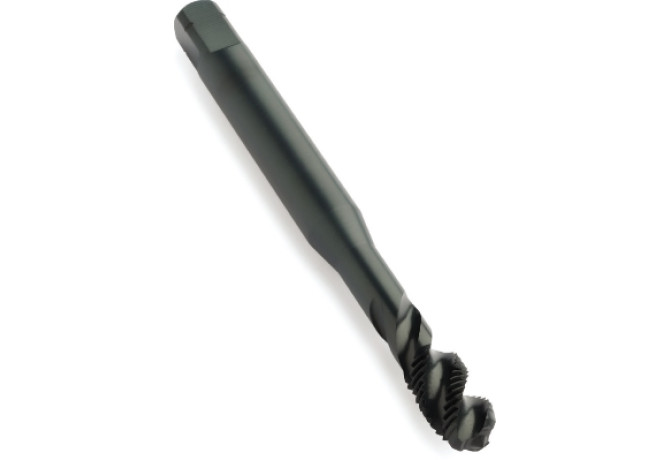

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank EX311/4

EX311/4

Артикул: 6181912

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD FEN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00702105

DN (Neck diameter)

4.85 mm

DRVS (Drive size)

5.5 mm

FHA (Flute helix angle)

45 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

T3P4

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F7000h$09

LDRED (Neck length)

30 mm

LOC-03 ISO

ZYL21F7000h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0070

LOC-03 (DCONMS Diameter)

7 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702105

LS (Shank length)

23 mm

NOF (Flute count)

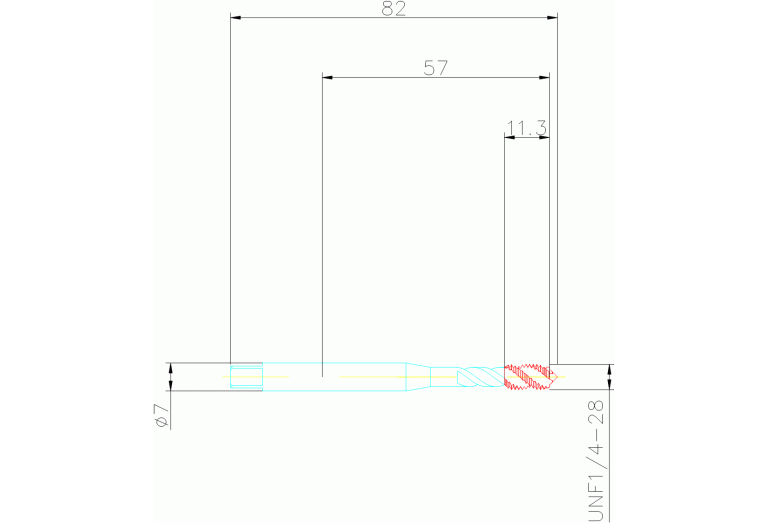

OAL (Overall length)

82 mm

OVERHANG LENGTH (Overhang length)

57 mm

PLCD (Gate diameter)

5.5 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

1.948 mm

TCTR (Thread tolerance class)

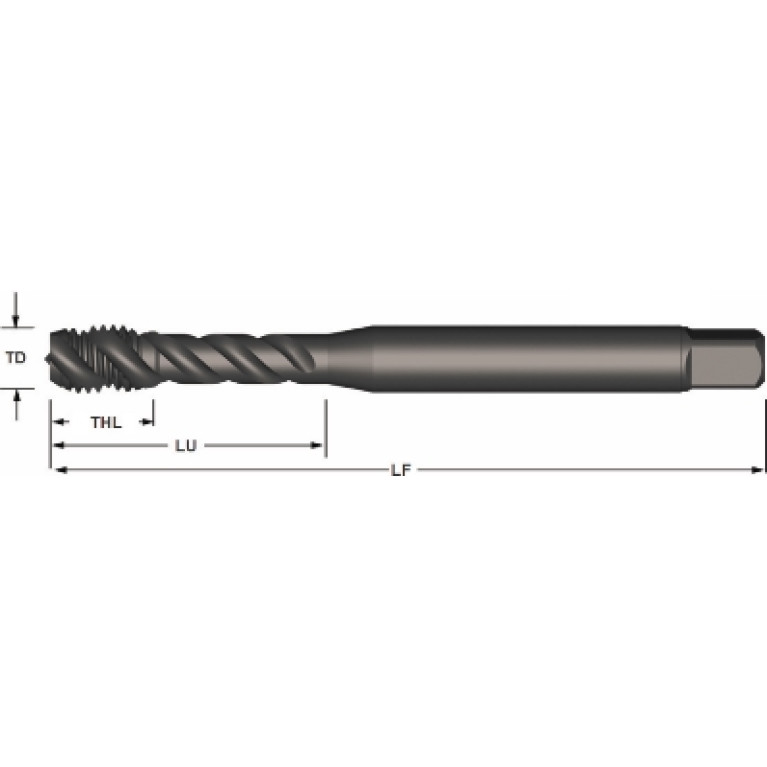

TD (Thread diameter)

6.35 mm

TDFR (Thread diameter nominal fraction)

1/4 in

THFT (Thread form type)

UNF

THL (Thread cutting part length)

10 mm

THOD (Thread designation)

UNF1/4-28-2B

TPI (Threads per inch)

28 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.02 kg
