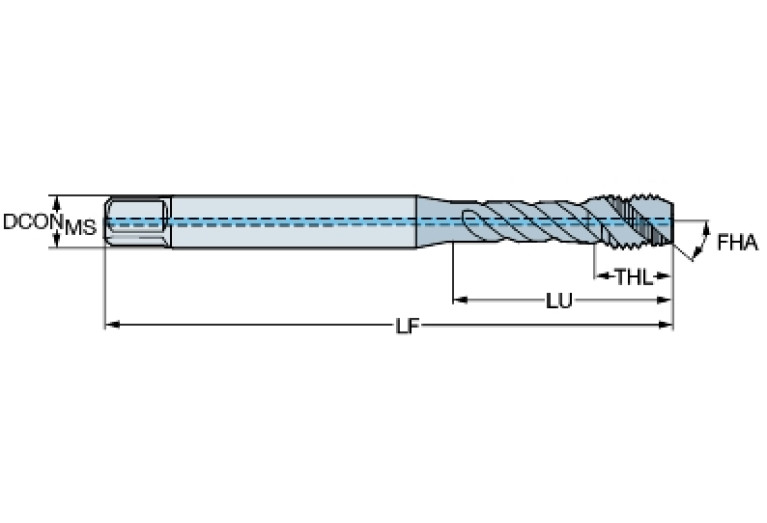

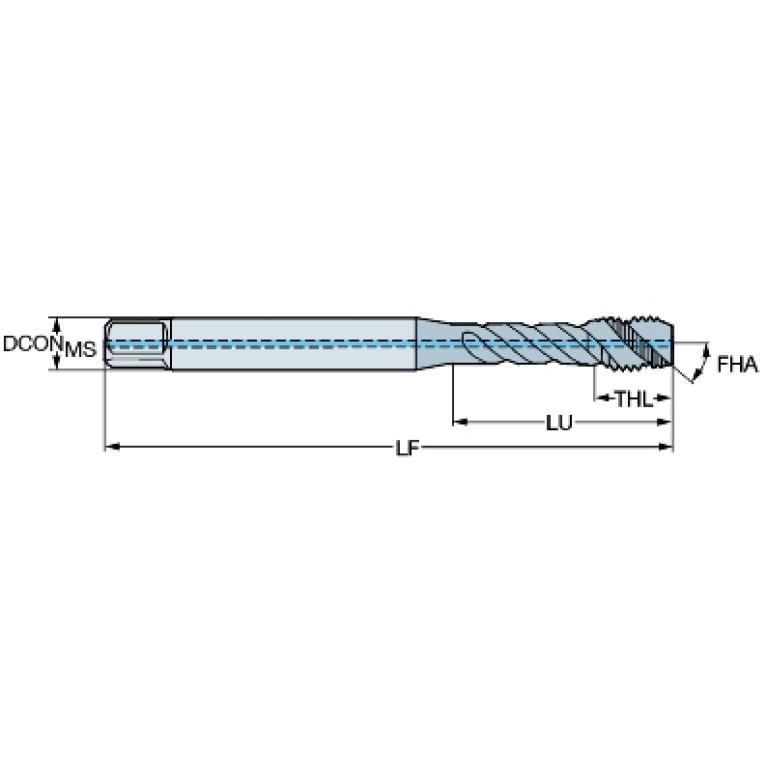

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank EX29PA1/4

EX29PA1/4

Артикул: 6162605

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL02552135

DN (Neck diameter)

6.15 mm

DRVS (Drive size)

4.851 mm

FHA (Flute helix angle)

48 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

T4I1

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R2550h$09

LDRED (Neck length)

24.689 mm

LOC-03 ISO

ZYL21R2550h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0255

LOC-03 (DCONMS Diameter)

6.477 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02552135

LS (Shank length)

22.938 mm

Materials

NOF (Flute count)

OAL (Overall length)

80 mm

PLCD (Gate diameter)

5.1 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

2.631 mm

TCTR (Thread tolerance class)

2BX

TD (Thread diameter)

6.35 mm

TDFR (Thread diameter nominal fraction)

1/4 in

THFT (Thread form type)

UNC

THL (Thread cutting part length)

10.201 mm

THOD (Thread designation)

UNC1/4-20-2BX

TPI (Threads per inch)

20 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.021 kg
