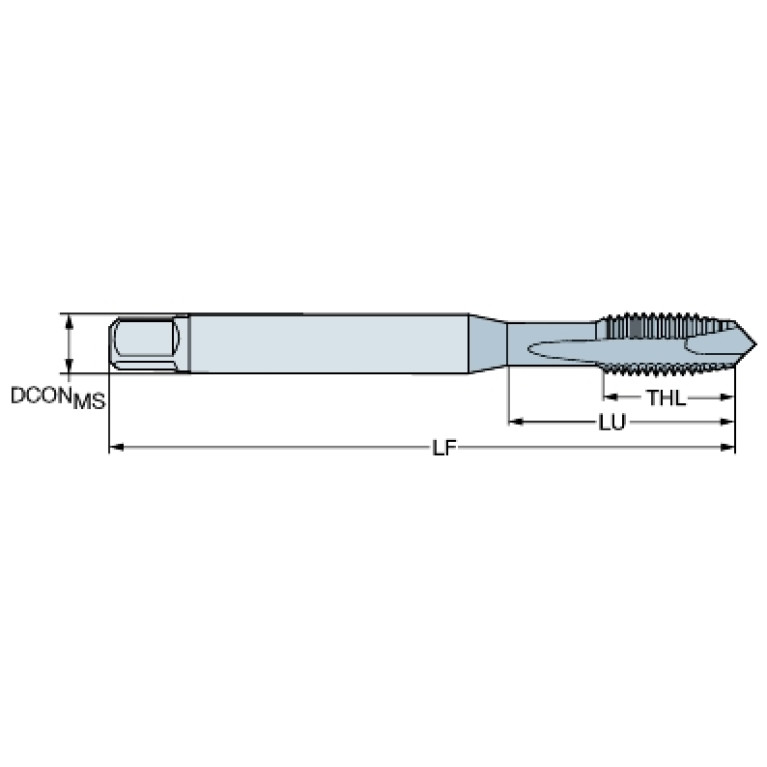

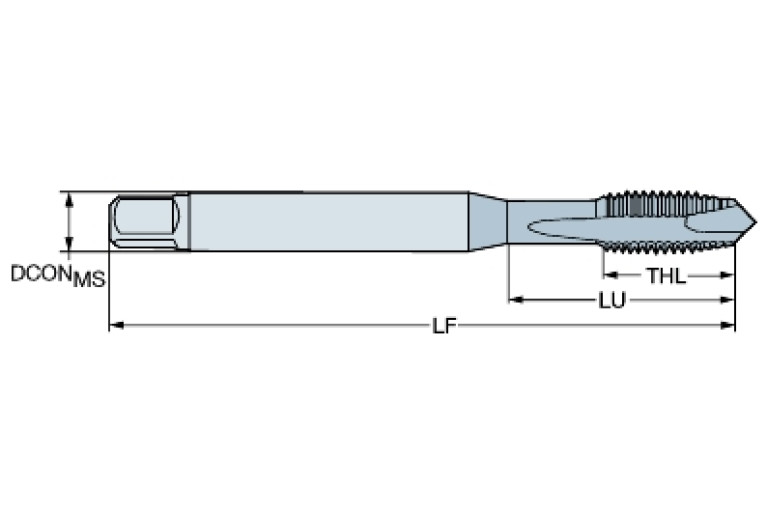

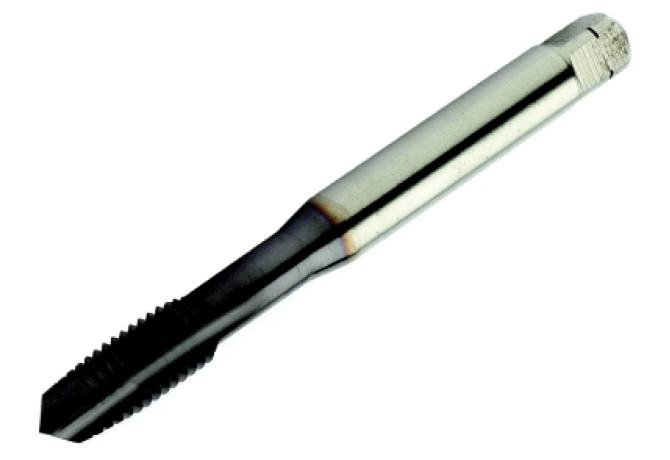

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank E87210-24

E87210-24

Артикул: 6182305

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN+WC/C

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL01942125

DN (Neck diameter)

3.76 mm

DRVS (Drive size)

3.861 mm

FHA (Flute helix angle)

0 Degree

FHH (Flute helix hand)

N - Hand of helix neutral

GRDMFG (Grade manufacturers designation)

T3J9

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R1940h$09

LDRED (Neck length)

21.422 mm

LOC-03 ISO

ZYL21R1940h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0194

LOC-03 (DCONMS Diameter)

4.928 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01942125

LS (Shank length)

21.35 mm

Materials

NOF (Flute count)

OAL (Overall length)

72.2 mm

PLCD (Gate diameter)

3.9 mm

PLG (Plug style)

B - Kappa r 8°

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

4.575 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

4.826 mm

TDZ (Thread diameter size)

THFT (Thread form type)

UNC

THL (Thread cutting part length)

14 mm

THOD (Thread designation)

UNC10-24-2B

TPI (Threads per inch)

24 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.011 kg
