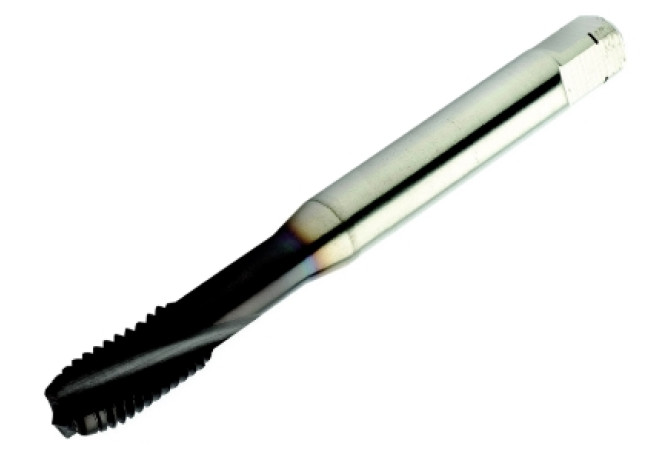

E864M5
E864M5
Артикул:
6182314
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiAlN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02552125
DN (Neck diameter)
4.9 mm
DRVS (Drive size)
4.851 mm
FHA (Flute helix angle)
15 Degree
FHH (Flute helix hand)
R - Hand of helix right
GRDMFG (Grade manufacturers designation)
T4J8
GRDPRIO (Standard designation of the grade main application)
HSS-E-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R2550h$09
LDRED (Neck length)
17 mm
LOC-03 ISO
ZYL21R2550h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0255
LOC-03 (DCONMS Diameter)
6.477 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02552125
LS (Shank length)
22.938 mm
Materials
P
NOF (Flute count)
3
OAL (Overall length)
80 mm
PLCD (Gate diameter)
4.2 mm
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
2.233 mm
TCTR (Thread tolerance class)
6H
TD (Thread diameter)
5 mm
THFT (Thread form type)
M
THL (Thread cutting part length)
17 mm
THOD (Thread designation)
M5x0.8-6H
TP (Thread pitch)
0.8 mm
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.018 kg
