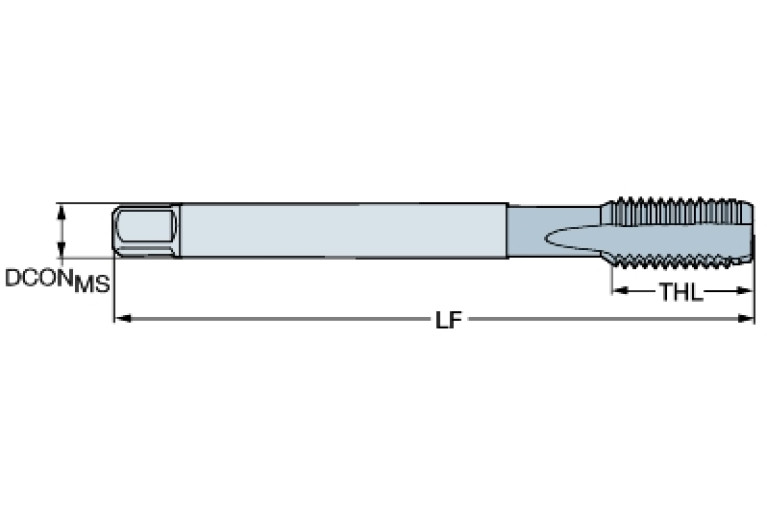

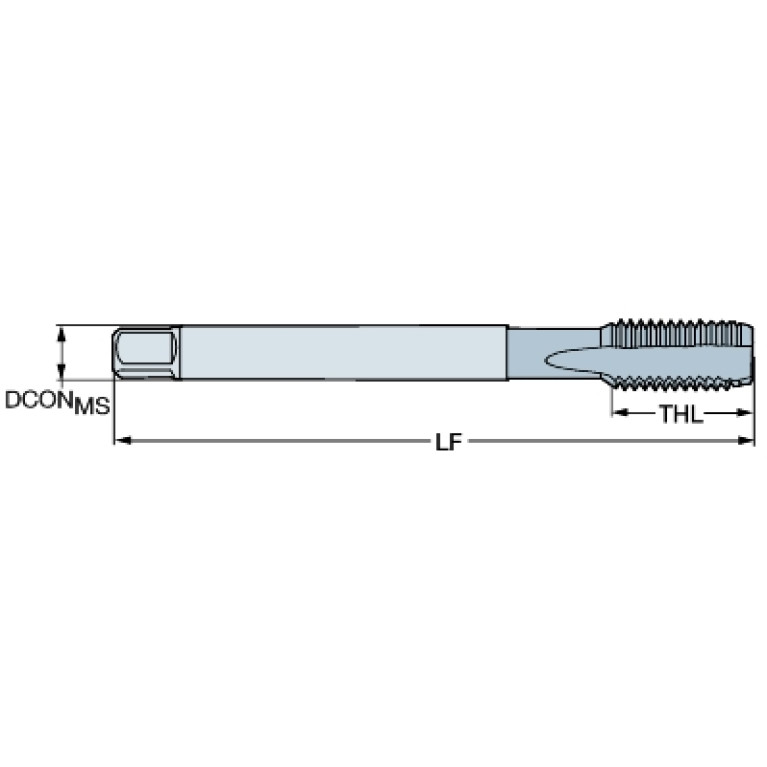

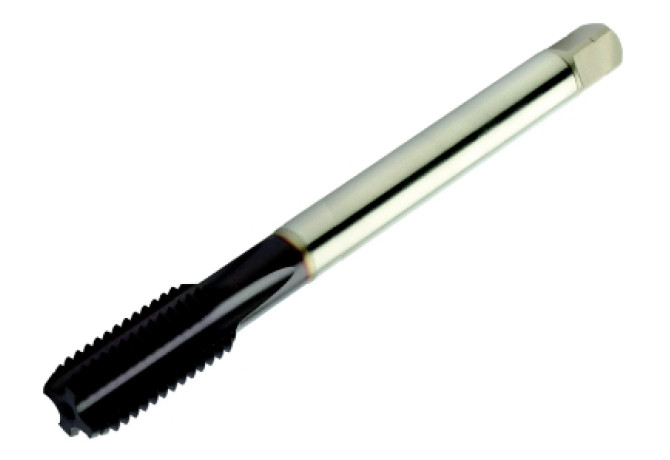

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank E836M10X1.25

E836M10X1.25

Артикул: 6183125

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TIALN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL03812125

DN (Neck diameter)

6.7 mm

DRVS (Drive size)

7.264 mm

FHA (Flute helix angle)

0 Degree

FHH (Flute helix hand)

N - Hand of helix neutral

GRDMFG (Grade manufacturers designation)

T4J8

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R3810h$09

LDRED (Neck length)

37.7 mm

LOC-03 ISO

ZYL21R3810h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0381

LOC-03 (DCONMS Diameter)

9.677 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03812125

LS (Shank length)

28.113 mm

NOF (Flute count)

OAL (Overall length)

100 mm

OVERHANG LENGTH (Overhang length)

71.887 mm

PLCD (Gate diameter)

8.8 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

2.41 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

10 mm

THFT (Thread form type)

THL (Thread cutting part length)

19.99 mm

THOD (Thread designation)

MF10x1.25-6HX

TP (Thread pitch)

1.25 mm

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.051 kg
