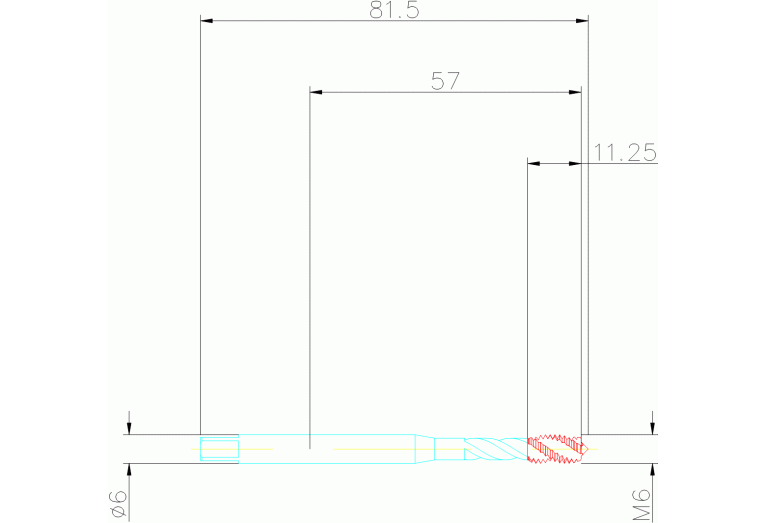

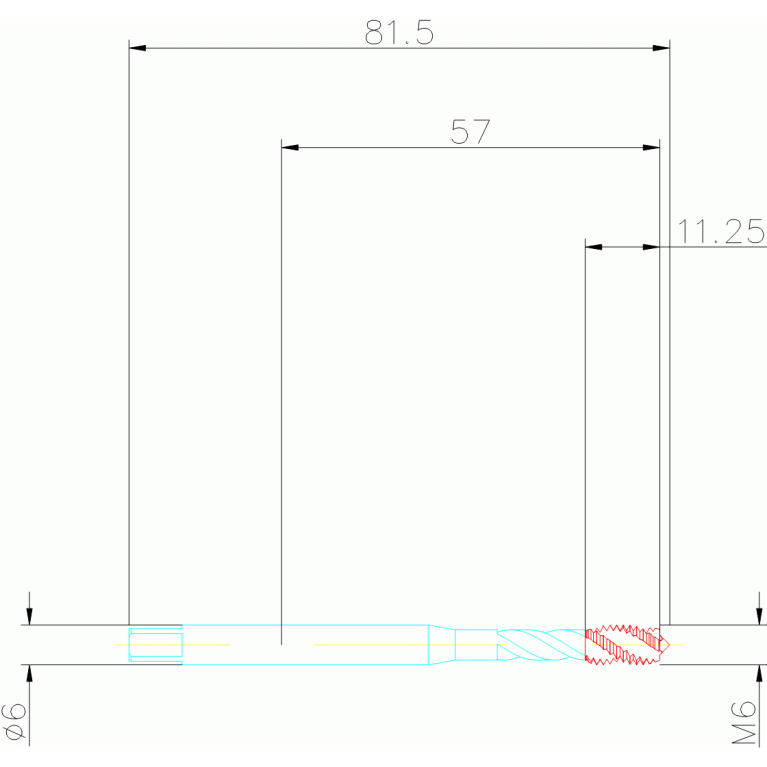

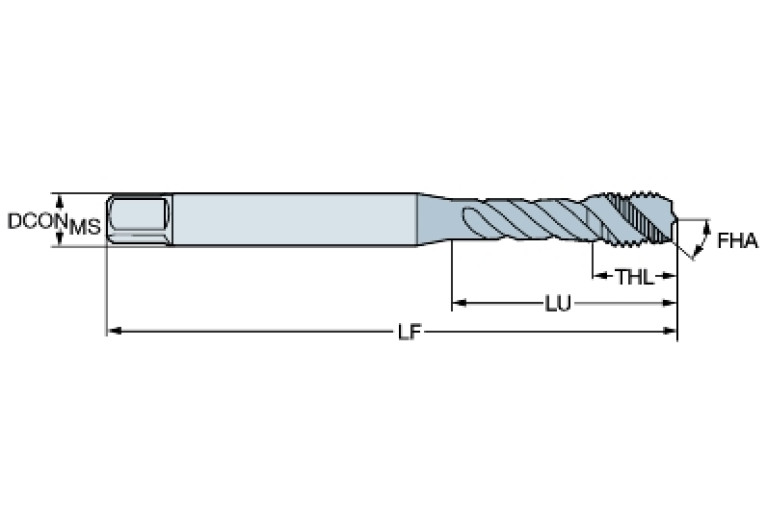

Главная Инструменты 301-02 - Thread cutting tap with reinforced shank E346M6

E346M6

Артикул: 6182226

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD FeN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00602105

DN (Neck diameter)

4.56 mm

DRVS (Drive size)

4.9 mm

FHA (Flute helix angle)

40 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

S9P4

GRDPRIO (Standard designation of the grade main application)

HSS-E

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F6000h$09

LDRED (Neck length)

30 mm

LOC-03 ISO

ZYL21F6000h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0060

LOC-03 (DCONMS Diameter)

6 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602105

LS (Shank length)

23 mm

Materials

NOF (Flute count)

OAL (Overall length)

81.5 mm

PLCD (Gate diameter)

5 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

2.156 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

6 mm

THFT (Thread form type)

THL (Thread cutting part length)

10 mm

THOD (Thread designation)

M6x1-6H

TP (Thread pitch)

1 mm

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.016 kg
