E0381/4
E0381/4
Артикул:
6181883
В наличии
0 ₽

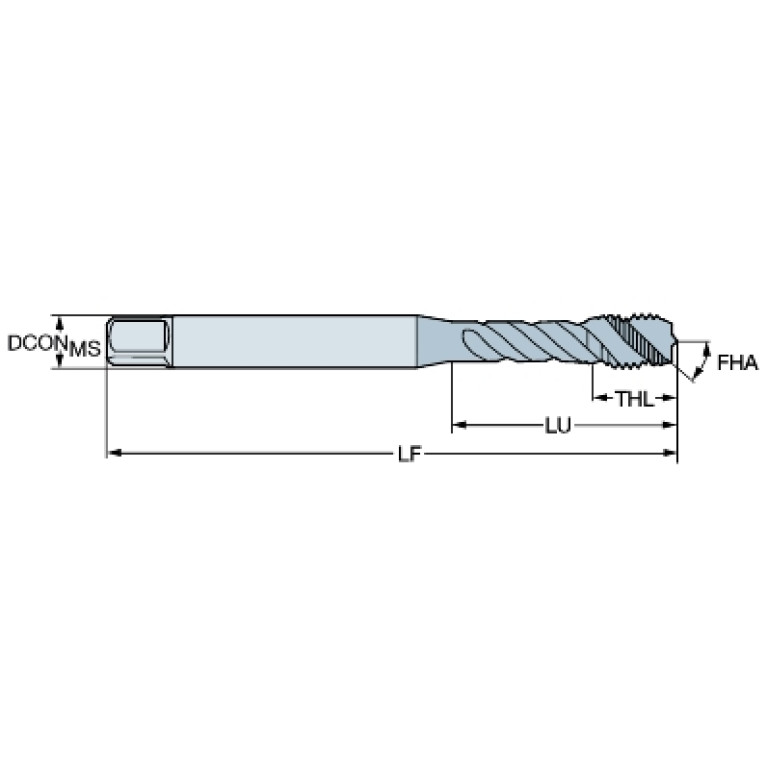

Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD FEN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL02552125
DN (Neck diameter)
4.85 mm
DRVS (Drive size)
4.851 mm
FHA (Flute helix angle)
45 Degree
FHH (Flute helix hand)
R - Hand of helix right
GRDMFG (Grade manufacturers designation)
T3P4
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R2550h$09
LDRED (Neck length)
27.922 mm
LOC-03 ISO
ZYL21R2550h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0255
LOC-03 (DCONMS Diameter)
6.477 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02552125
LS (Shank length)
22.938 mm
NOF (Flute count)
3

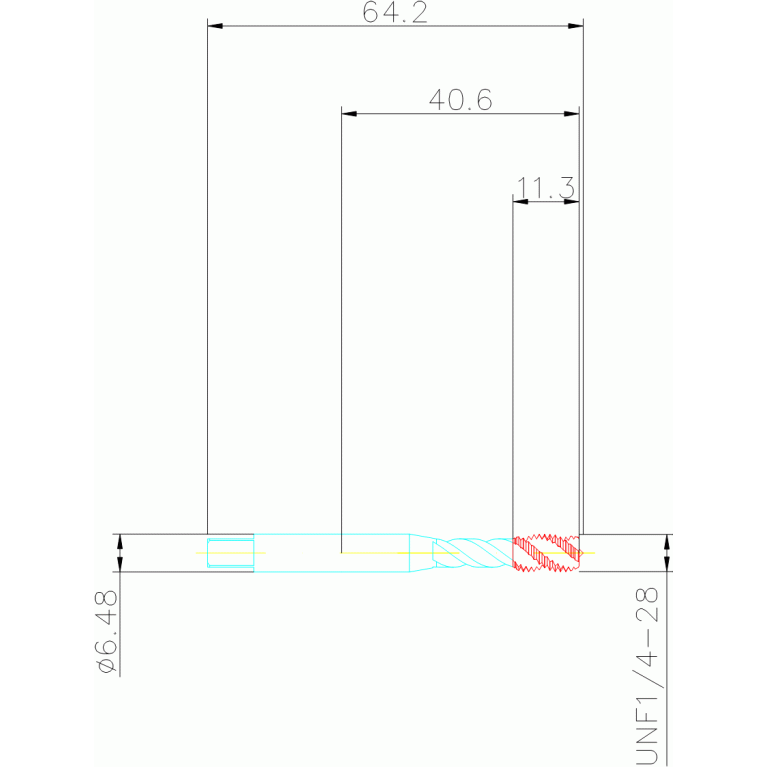

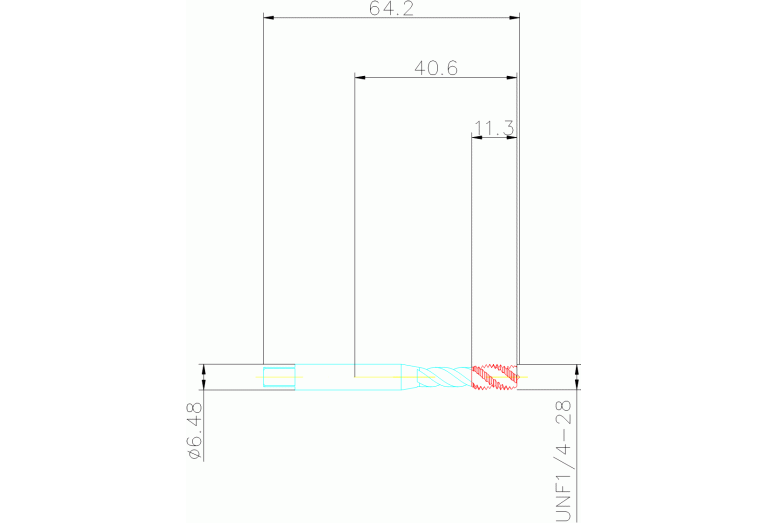

OAL (Overall length)
64.2 mm
OVERHANG LENGTH (Overhang length)
40.562 mm
PLCD (Gate diameter)
5.5 mm
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
1.948 mm
TCTR (Thread tolerance class)
3B
TD (Thread diameter)
6.35 mm
TDFR (Thread diameter nominal fraction)
1/4 in
THFT (Thread form type)
UNF
THL (Thread cutting part length)
10 mm
THOD (Thread designation)
UNF1/4-28-3B
TPI (Threads per inch)
28 1/in
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.015 kg
