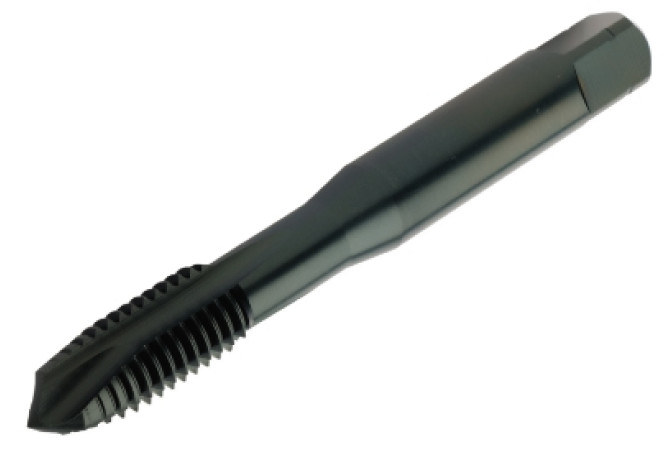

E0216-32
E0216-32
Артикул:
6182032
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD FeN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
ZYL00352105
DN (Neck diameter)
3.55 mm
DRVS (Drive size)
2.8 mm
FHA (Flute helix angle)
0 Degree
FHH (Flute helix hand)
N - Hand of helix neutral
GRDMFG (Grade manufacturers designation)
T3P4
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21F3550h$09
LDRED (Neck length)
17.5 mm
LOC-03 ISO
ZYL21F3550h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0035
LOC-03 (DCONMS Diameter)
3.55 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
LS (Shank length)
20 mm
NOF (Flute count)
3

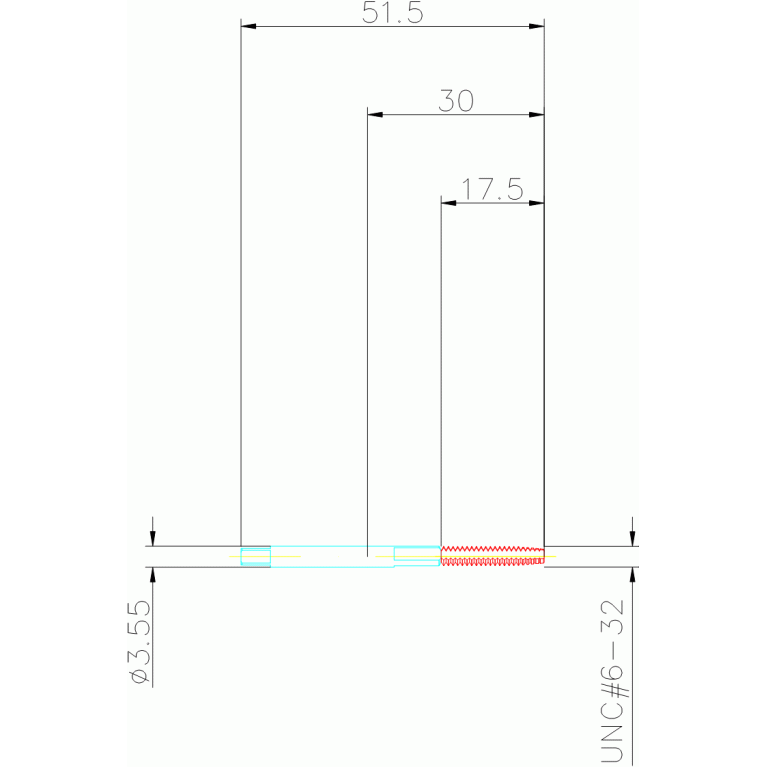

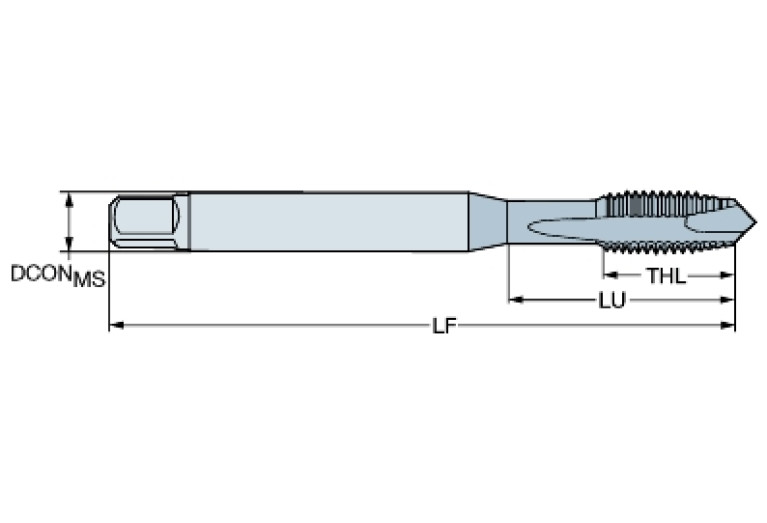

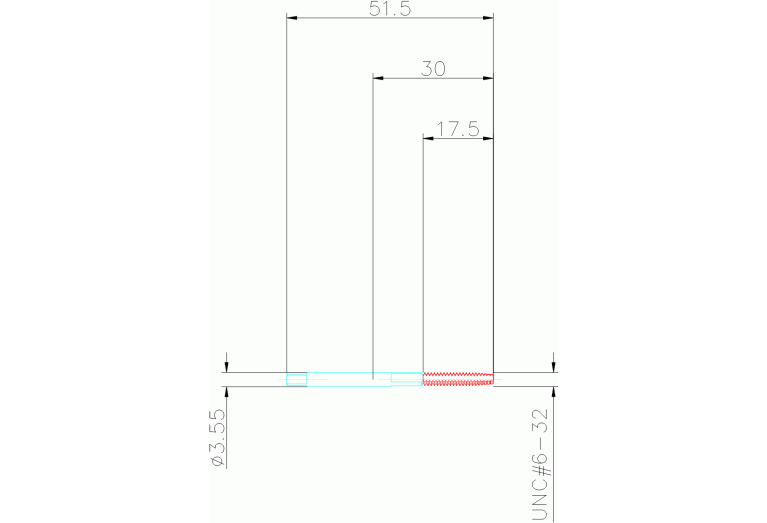

OAL (Overall length)
51.5 mm
PLCD (Gate diameter)
2.85 mm
PLG (Plug style)
B - Kappa r 8°
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
3.434 mm
TCTR (Thread tolerance class)
2B
TD (Thread diameter)
3.505 mm
TDZ (Thread diameter size)
6
THFT (Thread form type)
UNC
THL (Thread cutting part length)
17.5 mm
THOD (Thread designation)
UNC6-32-2B
TPI (Threads per inch)
32 1/in
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.006 kg
