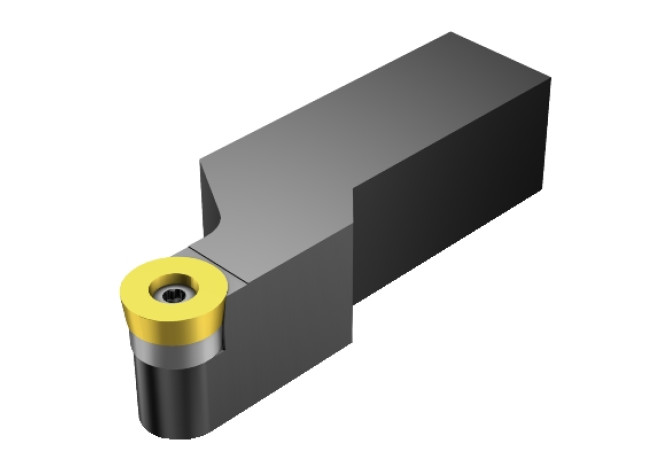

Главная Инструменты 309-01 - Tool holder for longitudinal and transversal turning SRSCR 24 4E

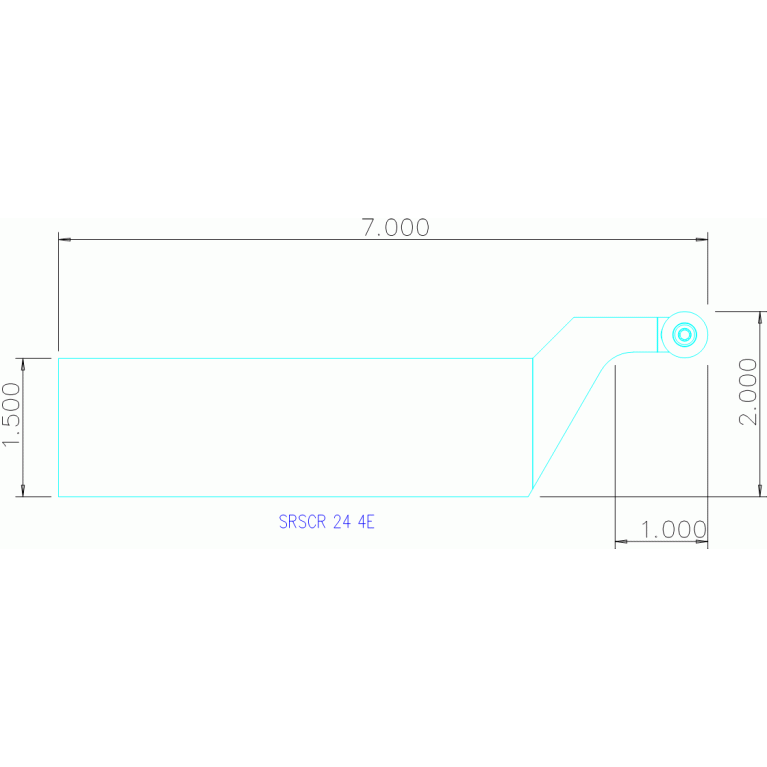

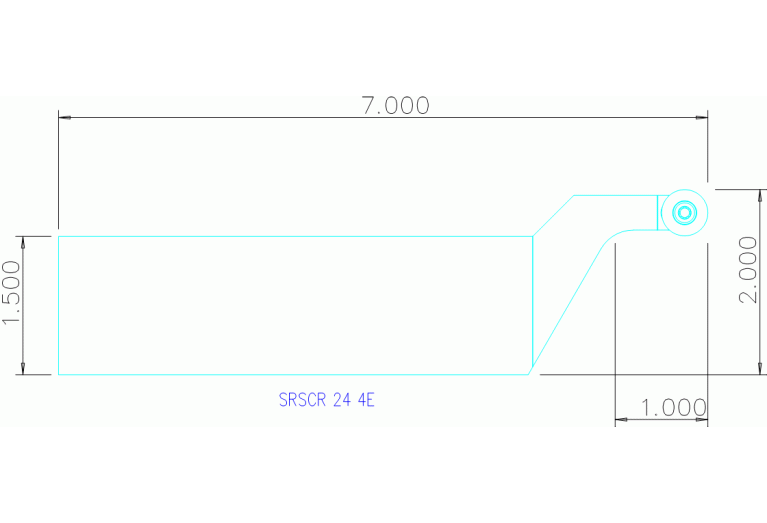

SRSCR 24 4E

Артикул: 5751552

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

B3A (Inscribed circle diameter Pos. A)

12.7 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

4.762 mm

CEATC (Tool cutting edge angle type code)

B - Side and front lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

VKT24240125

DIN CSW1

RC1204003N

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

38.1 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

VKT01B2424$$$$

ISO CSW1

ISO$RC1204003****00

KAPR (Tool cutting edge angle)

45 Degree

LAMS (Inclination angle)

0 Degree

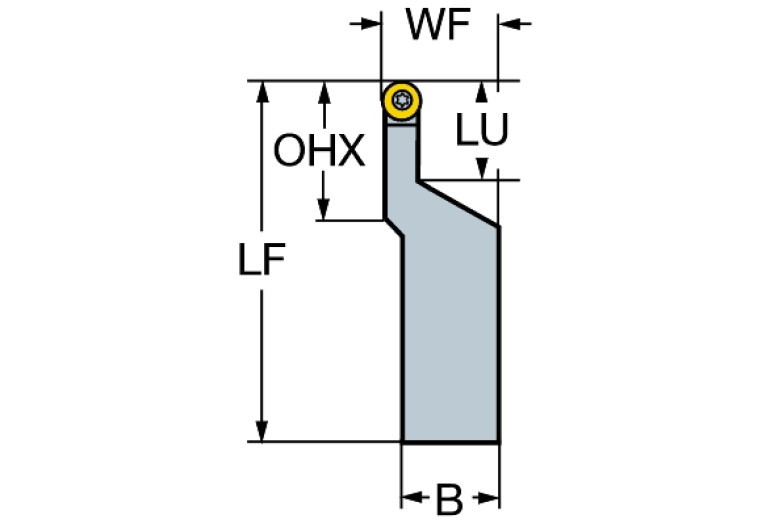

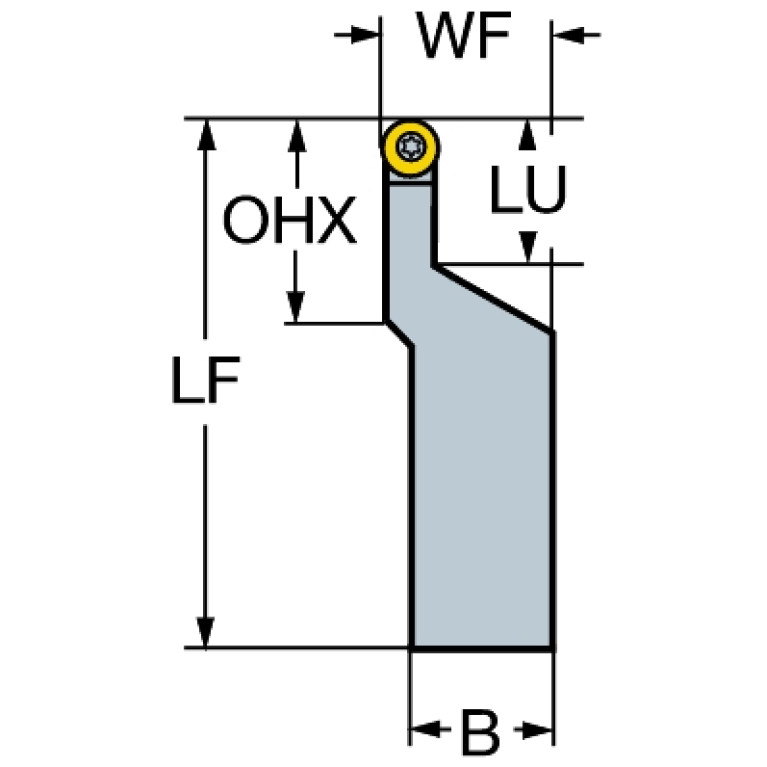

LF (Functional length)

177.8 mm

LH (Head length)

36.73 mm

LOC-03 ISO

VKT01B2424$$$$

LOC-03 (B Shank width)

38.1 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

2424

LOC-03 (H Shank height)

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT24240125

MIID (Master insert identification)

RCMT120400

OAL (Overall length)

177.8 mm

SX (Shank cross section shape code)

01 - Square shank

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

50.8 mm

Working process

DFA - External form turning,DPA - Profiling external

WT (Weight of item)

1.691 kg
