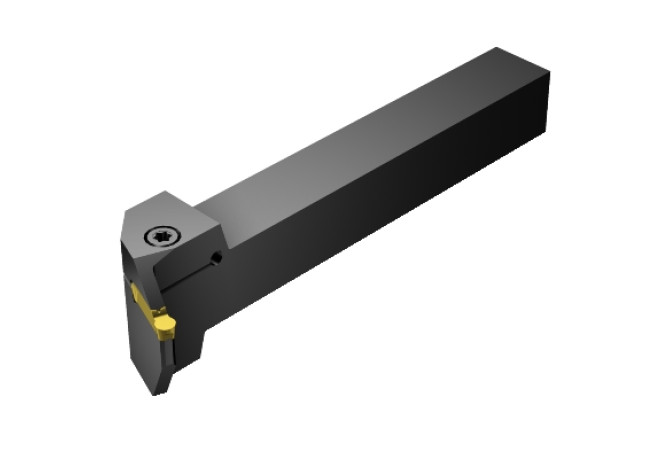

Главная Инструменты 309-01 - Tool holder for longitudinal and transversal turning RX123J16-3232B-070

RX123J16-3232B-070

Артикул: 5741411

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

C1A (Insert thickness Pos. A)

4.35 mm

CEATC (Tool cutting edge angle type code)

S - Side lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT32320105

DIN CSW1

SV-CCJ0H0*0

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

32 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A3232$$$$

ISO CSW1

SV$$CCJ$H$$$****$$$

L (Cutting edge length)

6 mm

LAMS (Inclination angle)

0 Degree

LF (Functional length)

190 mm

LH (Head length)

40 mm

LOC-03 ISO

VKT01A3232$$$$

LOC-03 (B Shank width)

32 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

3232

LOC-03 (H Shank height)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

MIID (Master insert identification)

N123J2-0600-RM

OAL (Overall length)

190 mm

SX (Shank cross section shape code)

01 - Square shank

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

48.7 mm

Working process

DFA - External form turning,DPA - Profiling external

WT (Weight of item)

1.56 kg
