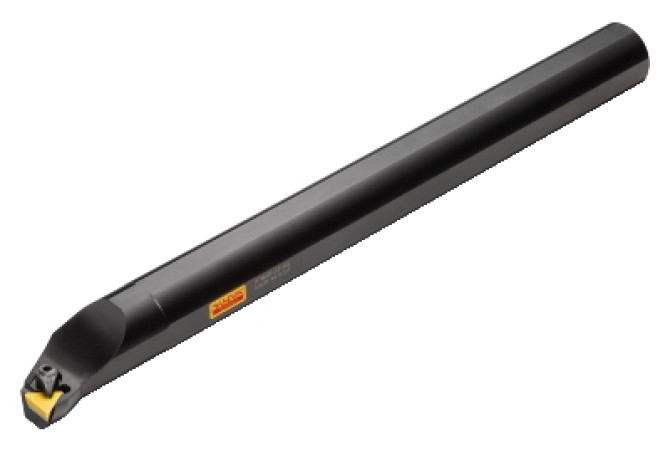

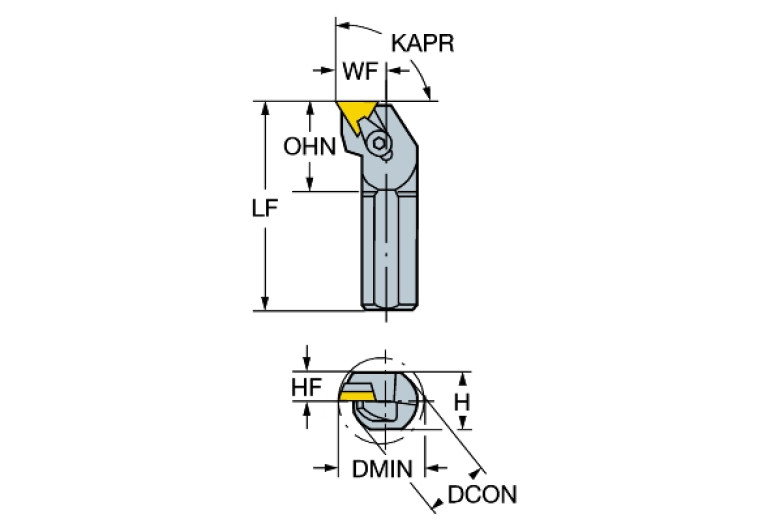

RTBAP 16M 3
RTBAP 16M 3
Артикул:
5741324
В наличии
0 ₽

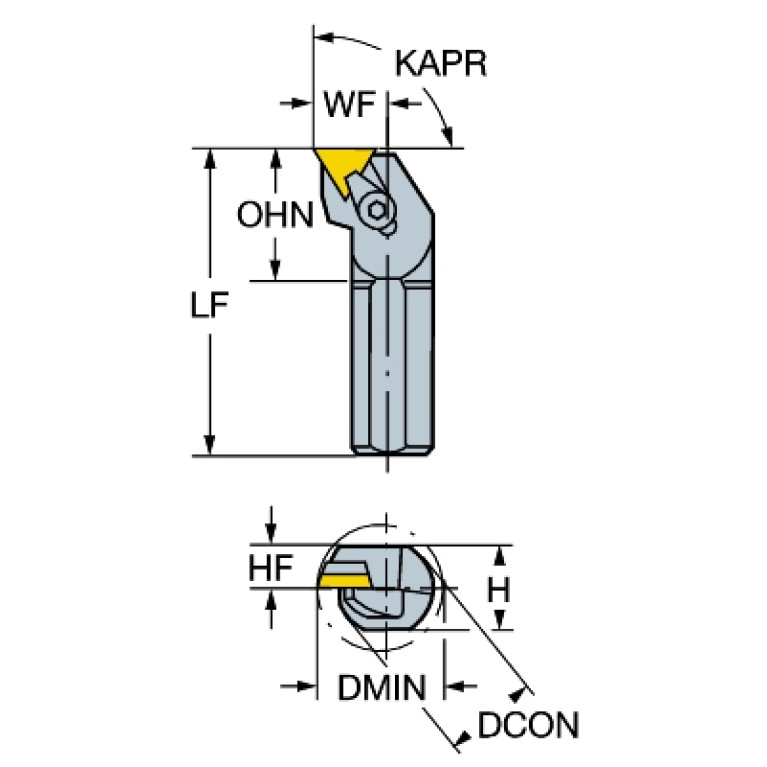

Характеристики
A2A (Clearance angle major Pos. A)
11 Degree
B3A (Inscribed circle diameter Pos. A)
9.525 mm
BI (Block index)
1
BLDA (Tool style code Position A)
1
C1A (Insert thickness Pos. A)
3.175 mm
CEATC (Tool cutting edge angle type code)
E - Front lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
D1A (Corner radius Pos. A)
0.794 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10002225
DIN CSW1
TP1603991L
DMIN (Minimum bore diameter)
32.5 mm
EPSR (Insert included angle)
60 Degree
GAMO (Rake angle orthogonal)
6 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
ZYL22S1000$$$$
ISO CSW1
ISO$TP1603001LA****
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
299.974 mm
LH (Head length)
101.6 mm
LOC-03 ISO
ZYL22S1000$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03 (H Shank height)
23.012 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10002225
MIID (Master insert identification)
TPUN160308
OAL (Overall length)
299.974 mm
THSC (Tool holder shape code)
G - straight shank design
WF (Functional width)
16.256 mm
Working process
DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal
WT (Weight of item)
1.08 kg
