Главная Инструменты 309-01 - Tool holder for longitudinal and transversal turning RS151.22-12-30

RS151.22-12-30

Артикул: 5741278

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

C1A (Insert thickness Pos. A)

6.787 mm

CEATC (Tool cutting edge angle type code)

S - Side lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

VKT12120125

DIN CSW1

SV-CB30230*

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

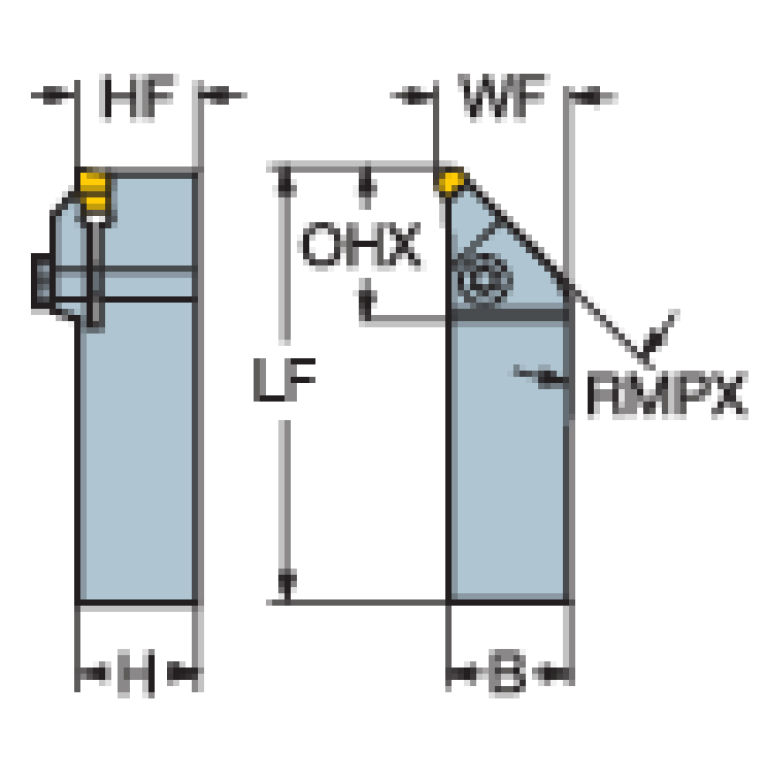

HF (Functional height)

19.05 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01B1212$$$$

ISO CSW1

SV$$CB3023$$***$*$$

L (Cutting edge length)

4 mm

LAMS (Inclination angle)

0 Degree

LF (Functional length)

114.3 mm

LOC-03 ISO

VKT01B1212$$$$

LOC-03 (B Shank width)

19.05 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1212

LOC-03 (H Shank height)

19.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120125

LPR (Protruding length)

114.3 mm

MIID (Master insert identification)

N151.2-400-30-4U

OAL (Overall length)

114.3 mm

SX (Shank cross section shape code)

01 - Square shank

WF (Functional width)

25.4 mm

Working process

DFA - External form turning,DPA - Profiling external

WT (Weight of item)

0.364 kg
