QS-TR-V13JBR 16HP
QS-TR-V13JBR 16HP
Артикул:
6766792
В наличии
0 ₽

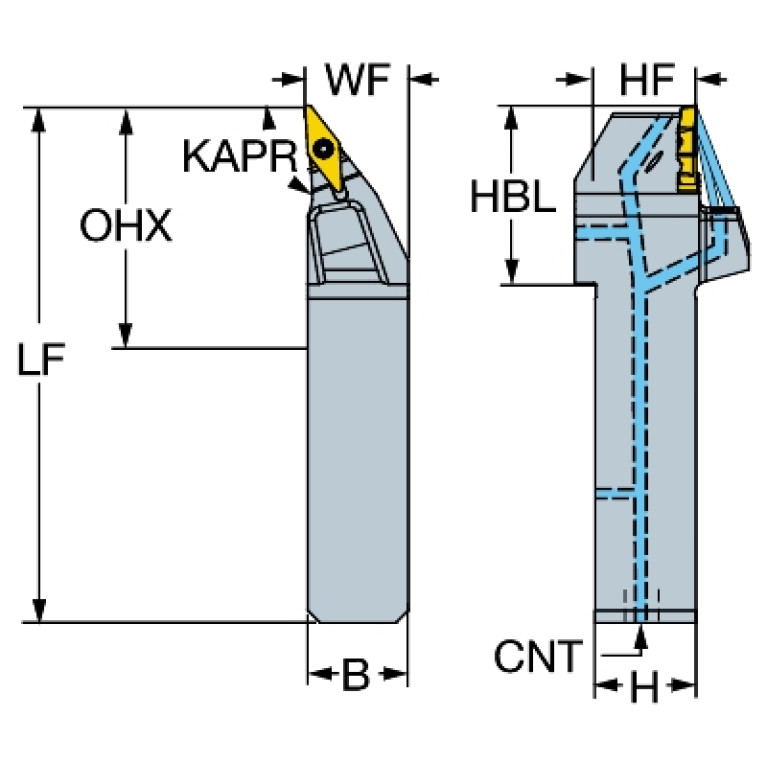

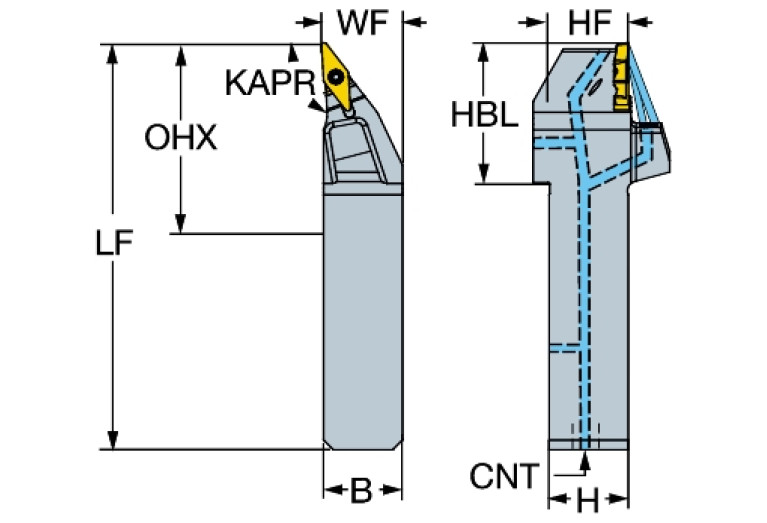

Характеристики
A2A (Clearance angle major Pos. A)
5 Degree
B3A (Inscribed circle diameter Pos. A)
8 mm
BLDA (Tool style code Position A)
3
C1A (Insert thickness Pos. A)
4.525 mm
CEATC (Tool cutting edge angle type code)
S - Side lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
6 - With coolant supply (discharge), peripheral/decentralized adjustable
CXSC (Coolant exit style code) / Тип подвода СОЖ
6 - With coolant supply (discharge), peripheral/decentralized adjustable
D1A (Corner radius Pos. A)
0.794 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
VKT16160135
DIN CSW1
SV-TH130000
EPSR (Insert included angle)
35 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
25.4 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01B1616$$$$
ISO CSW1
SV$$TH13$$008**$$**
KAPR (Tool cutting edge angle)
93 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
128 mm
LH (Head length)
69 mm
LOC-03 ISO
VKT01B1616$$$$
LOC-03 (B Shank width)
25.4 mm
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1616
LOC-03 (H Shank height)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160135
MIID (Master insert identification)
TR-VB1308
OAL (Overall length)
128 mm
SX (Shank cross section shape code)
01 - Square shank
THSC (Tool holder shape code)
A - offset shank design
WF (Functional width)
25.908 mm
Working process
DFA - External form turning,DPA - Profiling external
WT (Weight of item)
0.532 kg
