Главная Инструменты 309-01 - Tool holder for longitudinal and transversal turning C2T-RS25-LX70J16DB

C2T-RS25-LX70J16DB

Артикул: 8509278

В наличии

0 ₽

В корзину

Описание

Характеристики

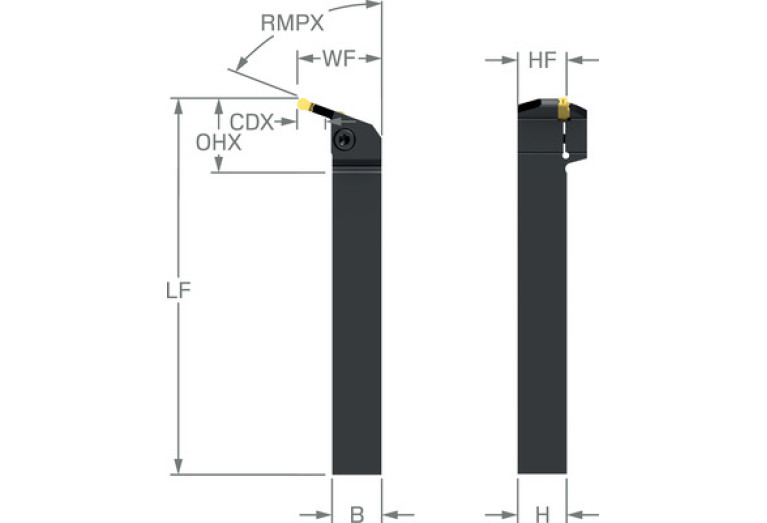

C1A (Insert thickness Pos. A)

4.35 mm

CEATC (Tool cutting edge angle type code)

B - Side and front lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

D1A (Corner radius Pos. A)

3 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

VKT25250105

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

25 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A2525$$$$

ISO CSW1

SV$$CCJ$H$$$9N**$$$

LAMS (Inclination angle)

0 Degree

LF (Functional length)

190 mm

LH (Head length)

60.066 mm

LOC-03 ISO

VKT01A2525$$$$

LOC-03 (B Shank width)

25 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

2525

LOC-03 (H Shank height)

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

OAL (Overall length)

190 mm

SX (Shank cross section shape code)

01 - Square shank

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

42.6 mm

Working process

DFA - External form turning,DPA - Profiling external

WT (Weight of item)

0.904 kg
