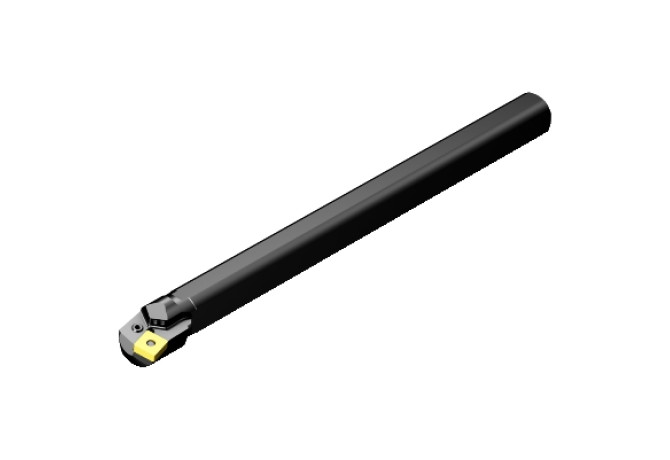

Главная Инструменты 309-01 - Tool holder for longitudinal and transversal turning A24T-PSKNL4HP

A24T-PSKNL4HP

Артикул: 6339982

В наличии

0 ₽

В корзину

Описание

Характеристики

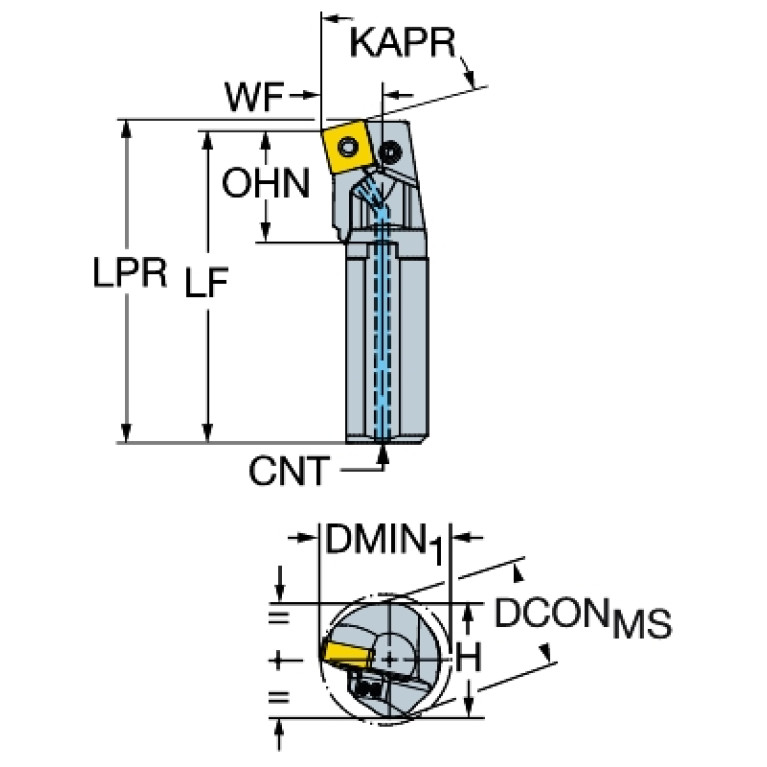

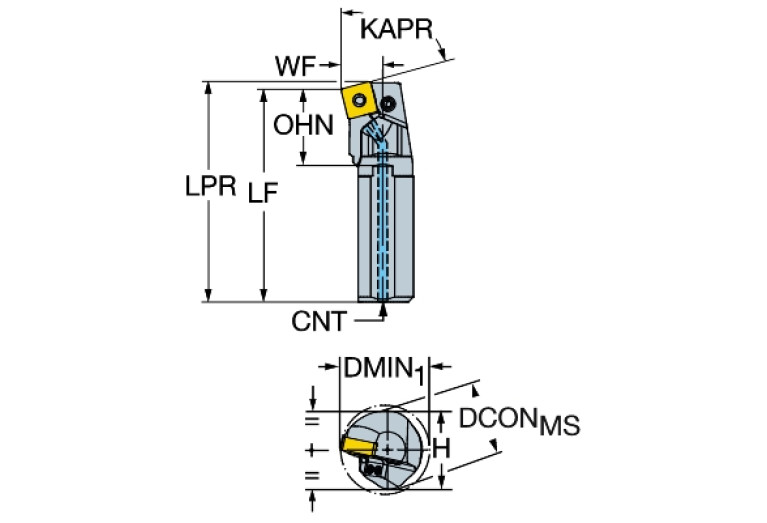

A2A (Clearance angle major Pos. A)

0 Degree

B3A (Inscribed circle diameter Pos. A)

12.7 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

4.762 mm

CEATC (Tool cutting edge angle type code)

E - Front lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

D1A (Corner radius Pos. A)

0.794 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL15002235

DIN CSW1

SN1204992N

DMIN (Minimum bore diameter)

47 mm

EPSR (Insert included angle)

90 Degree

GAMO (Rake angle orthogonal)

-6 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

ZYL22S1500$$$$

ISO CSW1

ISO$SN1204002******

KAPR (Tool cutting edge angle)

75 Degree

LAMS (Inclination angle)

-10 Degree

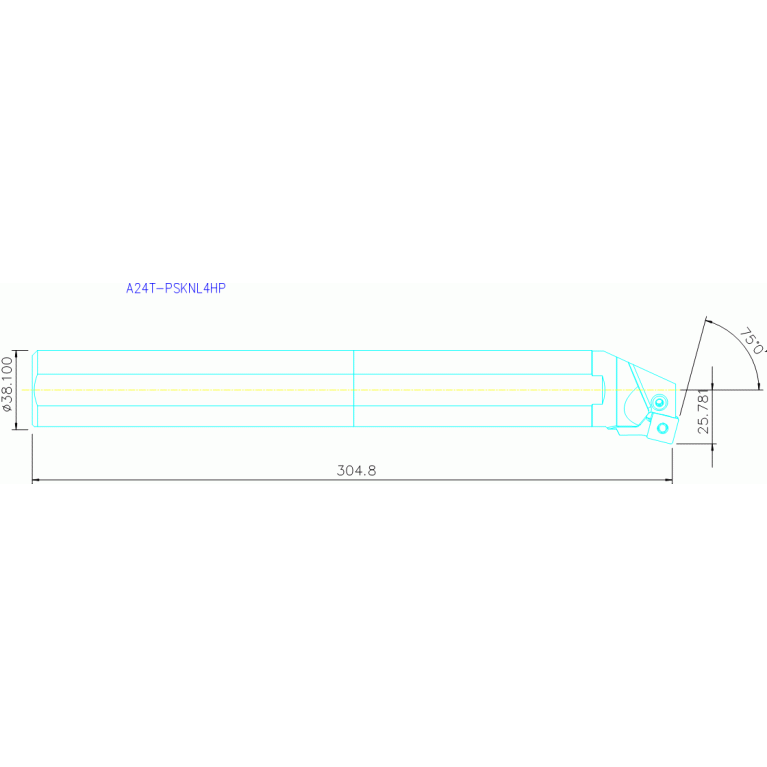

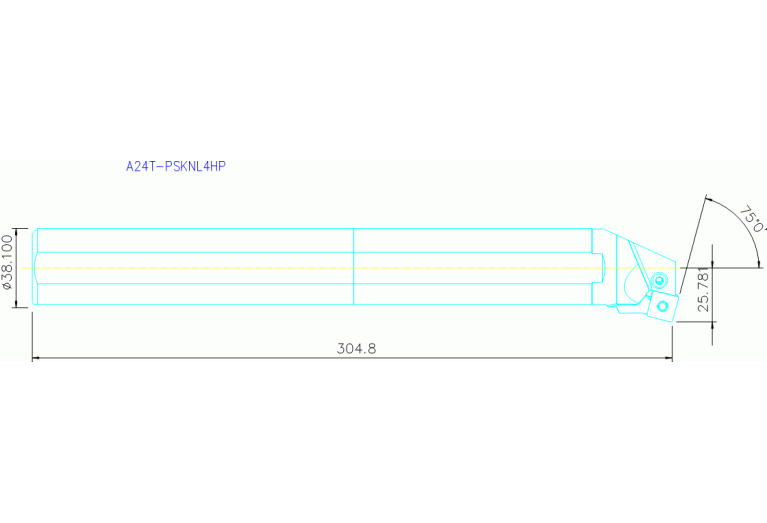

LF (Functional length)

304.8 mm

LFA (A dimension on lf)

3.05 mm

LH (Head length)

152.4 mm

LOC-03 ISO

ZYL22S1500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1500

LOC-03 (DCONMS Diameter)

38.1 mm

LOC-03 (H Shank height)

37 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL15002235

LPR (Protruding length)

307.85 mm

MIID (Master insert identification)

SNMG120408

OAL (Overall length)

307.85 mm

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

25.781 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

2.52 kg
