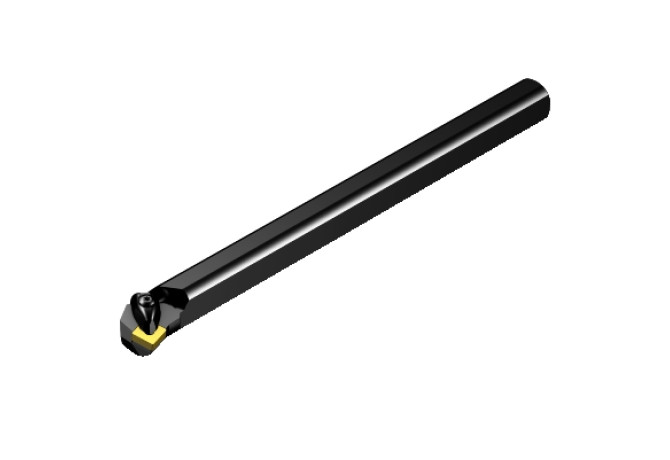

A20T-DCLNL 3
A20T-DCLNL 3
Артикул:
5722026
В наличии
0 ₽

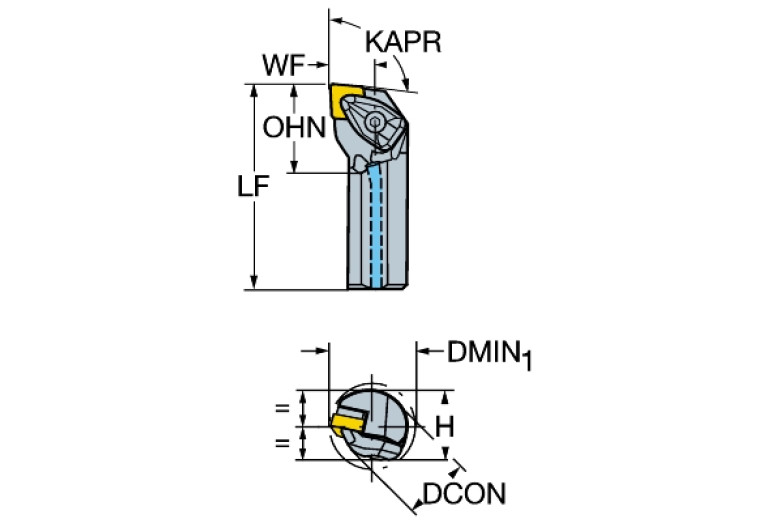

Характеристики
A2A (Clearance angle major Pos. A)
0 Degree
B3A (Inscribed circle diameter Pos. A)
9.525 mm
BI (Block index)
1
BLDA (Tool style code Position A)
3
C1A (Insert thickness Pos. A)
3.175 mm
CEATC (Tool cutting edge angle type code)
B - Side and front lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
D1A (Corner radius Pos. A)
0.794 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL12502235
DIN CSW1
CN0903992N
DMIN (Minimum bore diameter)
37.3 mm
EPSR (Insert included angle)
80 Degree
GAMO (Rake angle orthogonal)
-6 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
ZYL22S1250$$$$
ISO CSW1
ISO$CN0903002******
KAPR (Tool cutting edge angle)
95 Degree
LAMS (Inclination angle)
-9 Degree

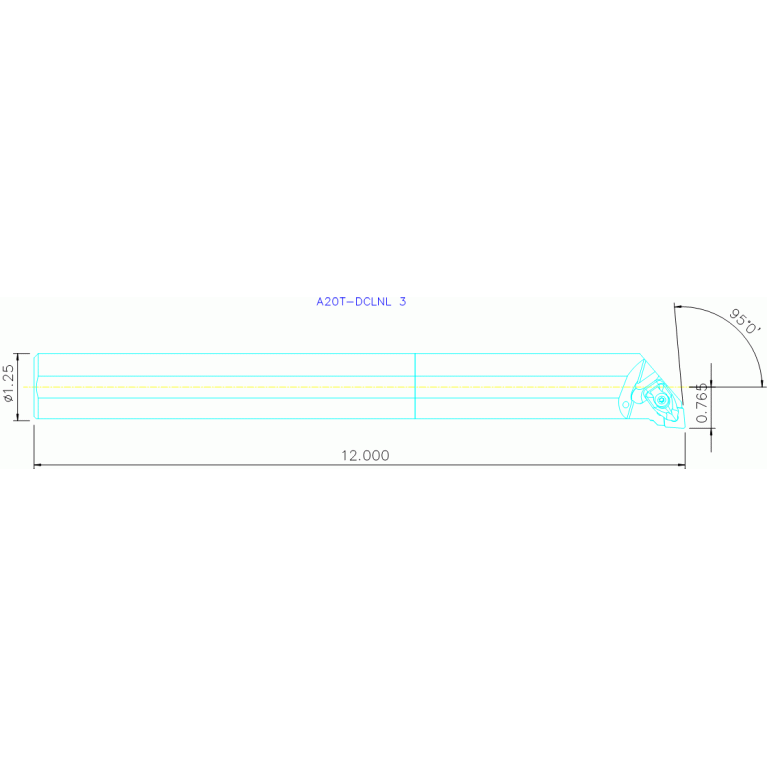

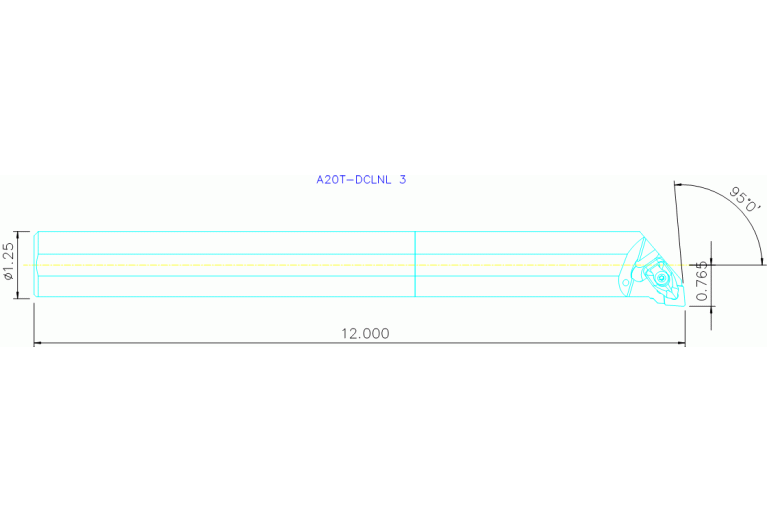

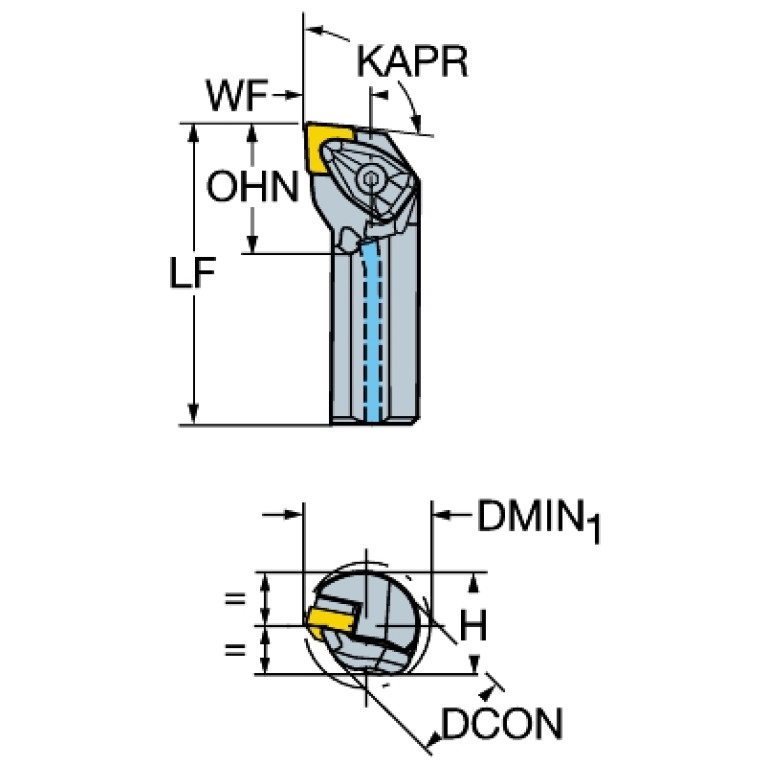

LF (Functional length)
304.8 mm
LH (Head length)
127 mm
LOC-03 ISO
ZYL22S1250$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1250
LOC-03 (DCONMS Diameter)
31.75 mm
LOC-03 (H Shank height)
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12502235
MIID (Master insert identification)
CNMG090308
OAL (Overall length)
304.8 mm
THSC (Tool holder shape code)
A - offset shank design
WF (Functional width)
19.431 mm
Working process
DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal
WT (Weight of item)
1.708 kg
