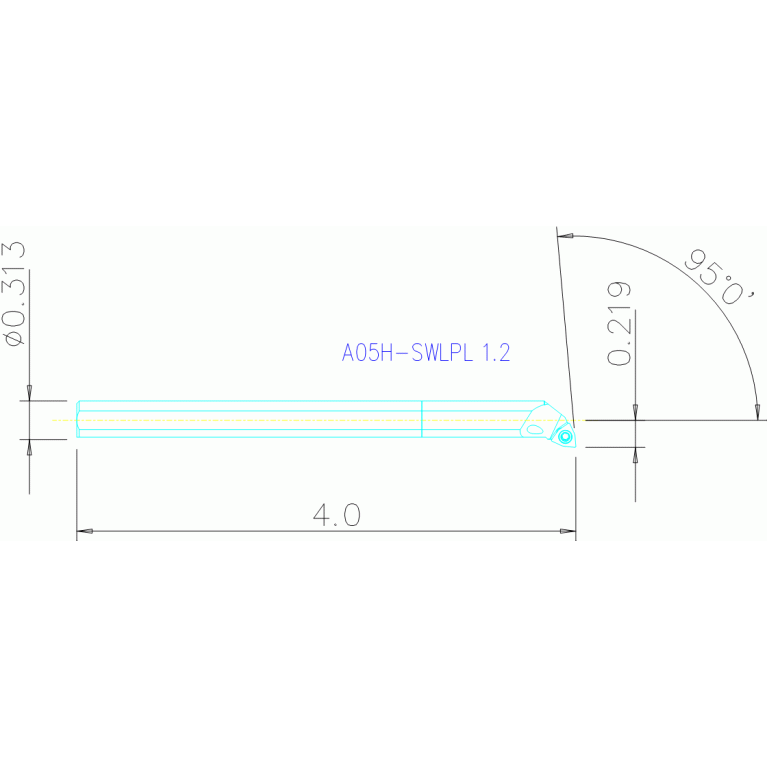

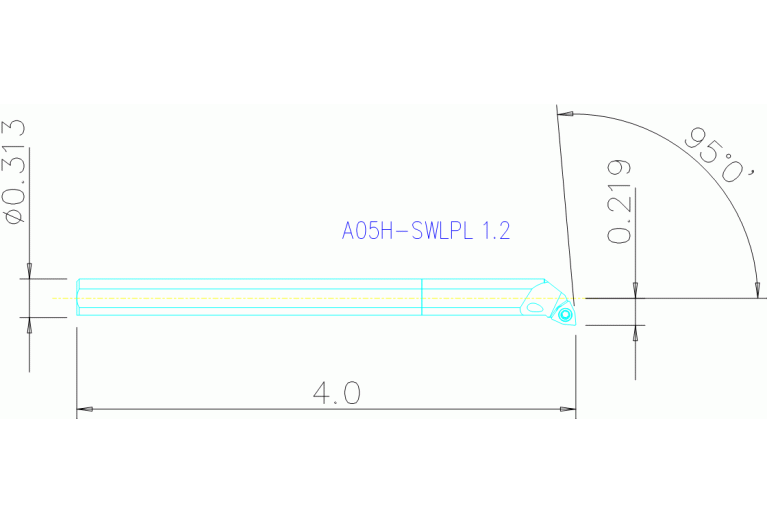

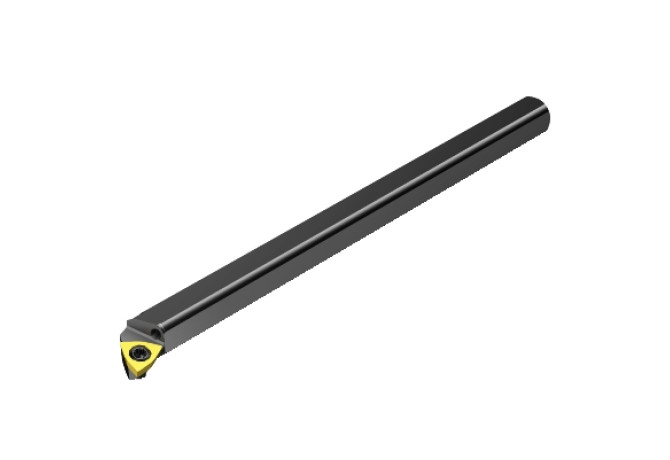

A05H-SWLPL 1.2
A05H-SWLPL 1.2
Артикул:
5721652
В наличии
0 ₽
Характеристики

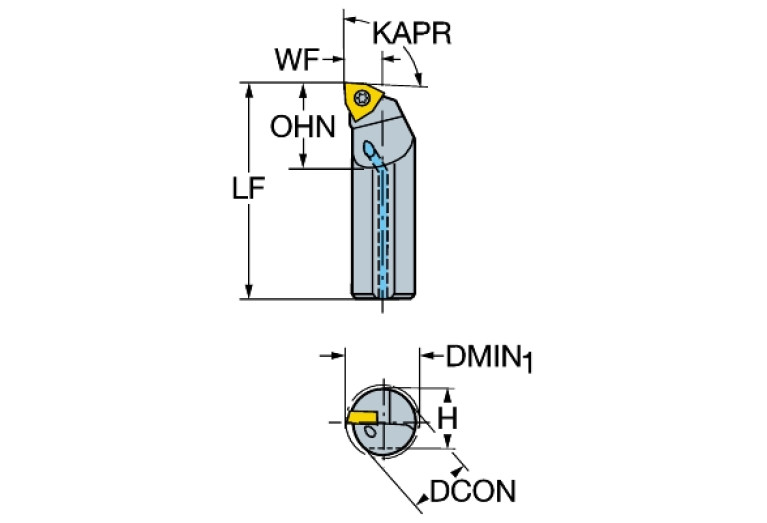

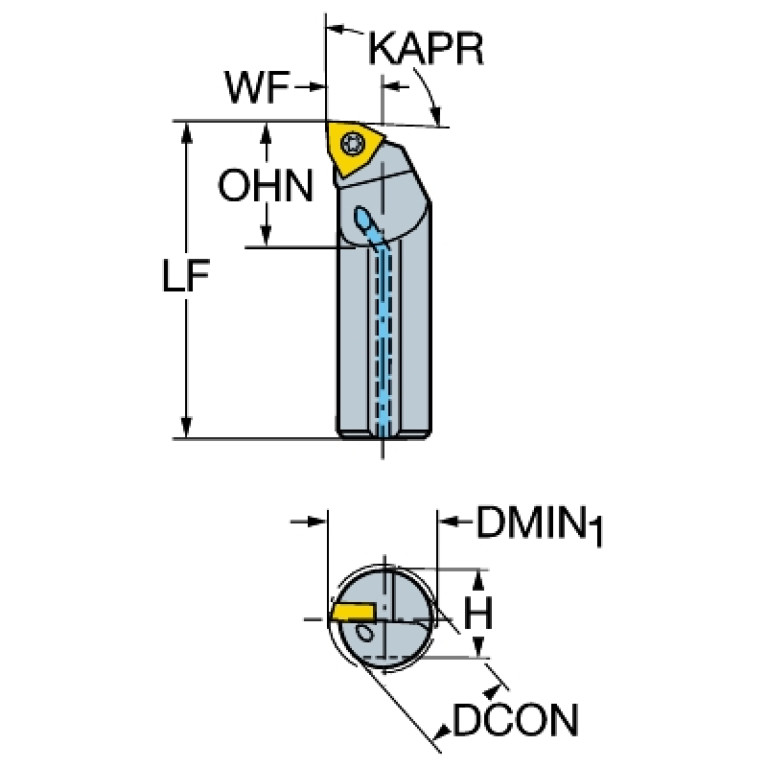

A2A (Clearance angle major Pos. A)
11 Degree
B3A (Inscribed circle diameter Pos. A)
3.96875 mm
BI (Block index)
1
BLDA (Tool style code Position A)
7
C1A (Insert thickness Pos. A)
1.5875 mm
CEATC (Tool cutting edge angle type code)
B - Side and front lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
D1A (Corner radius Pos. A)
0.198437 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL03122235
DIN CSW1
WP0201993N
DMIN (Minimum bore diameter)
10.5 mm
EPSR (Insert included angle)
80 Degree
GAMO (Rake angle orthogonal)
2 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
ZYL22R3125$$$$
ISO CSW1
ISO$WP0201003******
KAPR (Tool cutting edge angle)
95 Degree
LAMS (Inclination angle)
-9 Degree
LF (Functional length)
101.6 mm
LH (Head length)
31.75 mm
LOC-03 ISO
ZYL22R3125$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
0312
LOC-03 (DCONMS Diameter)
7.9375 mm
LOC-03 (H Shank height)
6.909 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03122235
MIID (Master insert identification)
WPMT020102
OAL (Overall length)
101.6 mm
THSC (Tool holder shape code)
A - offset shank design
WF (Functional width)
5.563 mm
Working process
DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal
WT (Weight of item)
0.004 kg
