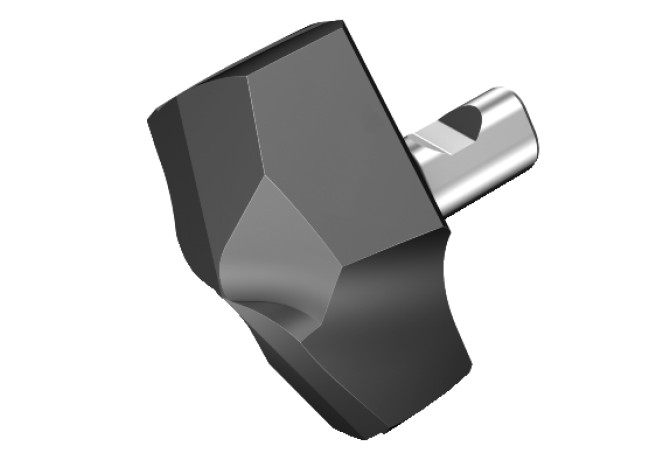

Главная Инструменты 203-03 - Replaceable insert flatted with chip flute 870-2190-21-MM 2334

870-2190-21-MM 2334

Артикул: 7358065

В наличии

0 ₽

В корзину

Описание

Характеристики

COATN (Coating)

PVD AlTiCrN

DC (Cutting diameter)

21.9 mm

Delivery state valid from

12/1/2023

DIN

SV-DK210000

GRDMFG (Grade manufacturers designation)

2334

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SV$$DK21$$$$0R$$$$$

LF (Functional length)

9.88 mm

LOC-03 ISO

SV$$DK21$$$$0R$$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SV-DK210000

LPR (Protruding length)

13.2 mm

Materials

M,S

NOF (Flute count)

OAL (Overall length)

21.8 mm

PL (Point length)

3.32 mm

S1 (Insert thickness total)

7.46 mm

SIG (Point angle 1st step)

142 Degree

Working process

BVB - Drilling

WT (Weight of item)

0.027 kg
