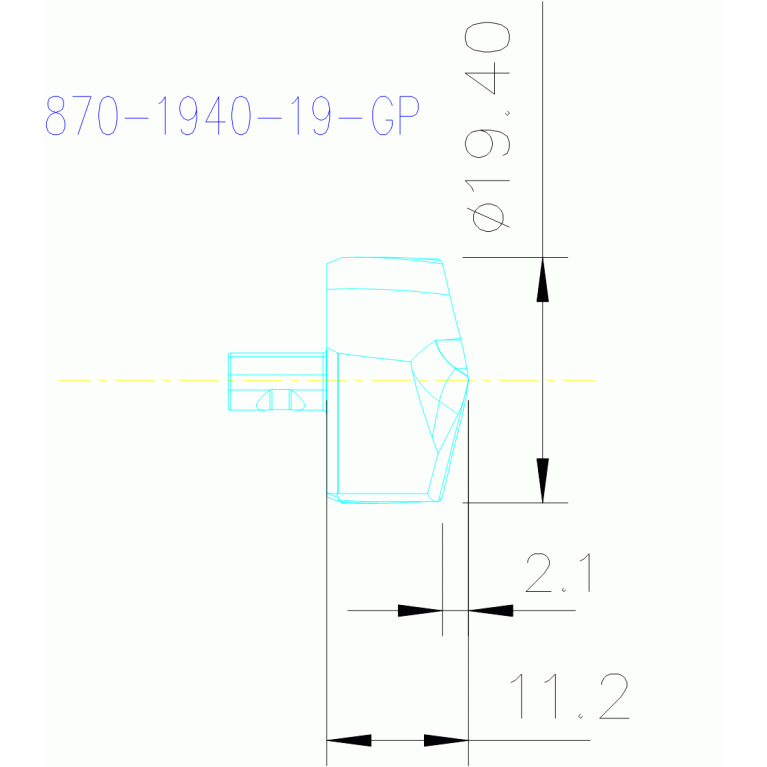

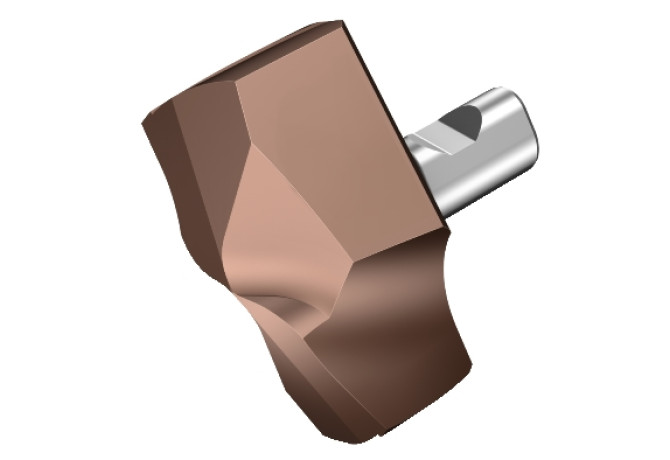

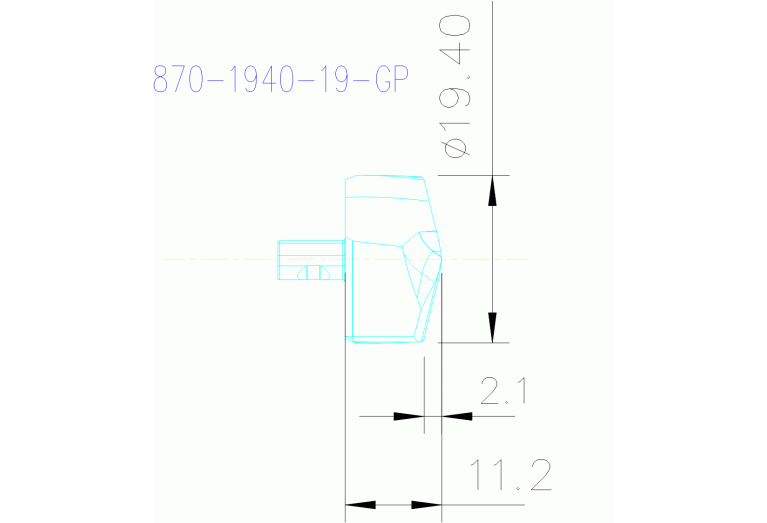

870-1940-19-GP 4234
870-1940-19-GP 4234
Артикул:
6341701
В наличии
0 ₽
Характеристики
COATN (Coating)
PVD TiAlN

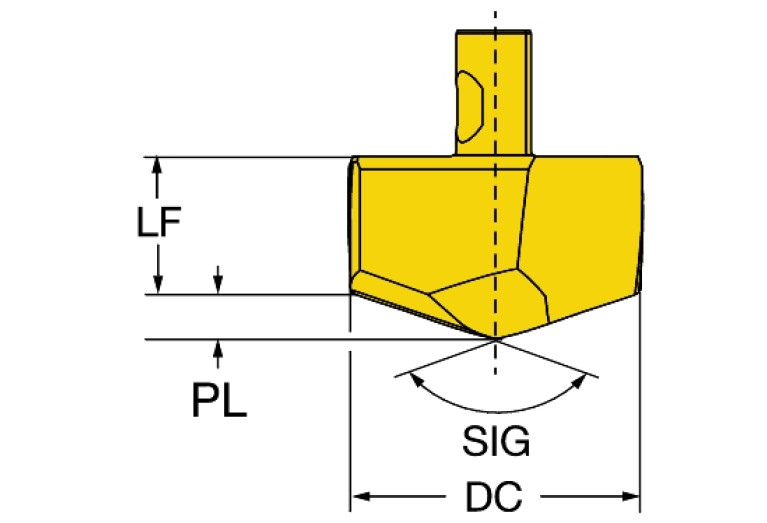

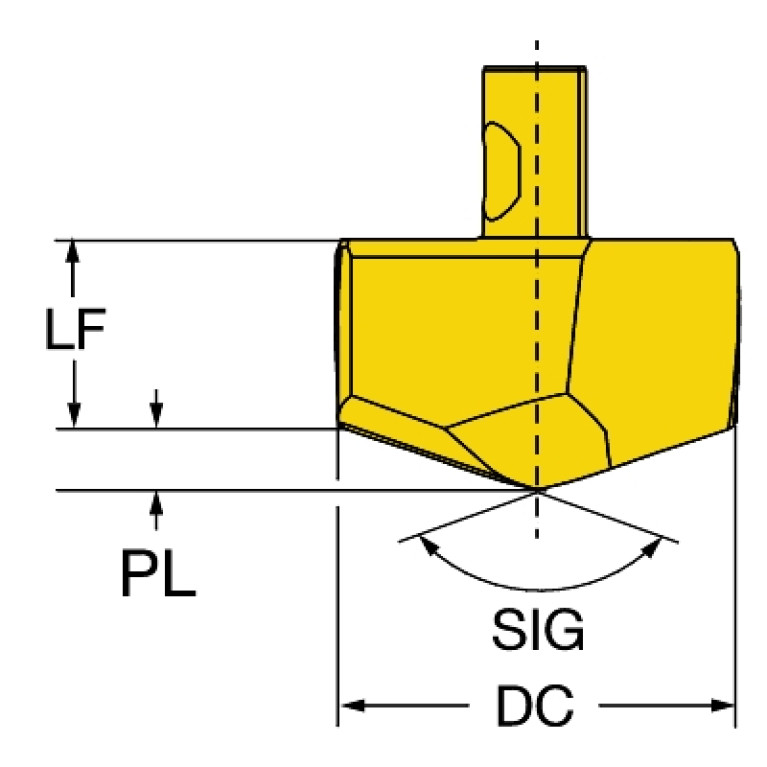

DC (Cutting diameter)
19.4 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SV-DK190000
GRDMFG (Grade manufacturers designation)
4234
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SV$$DK19$$$$0R$$$$$
LF (Functional length)
9.16 mm
LOC-03 ISO
SV$$DK19$$$$0R$$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-DK190000
LPR (Protruding length)
11.2 mm
Materials
P,M,K,N,S
NOF (Flute count)
1
OAL (Overall length)
19 mm
PL (Point length)
2.04 mm
S1 (Insert thickness total)
6.86 mm
SIG (Point angle 1st step)
152 Degree
Working process
BVB - Drilling
WT (Weight of item)
0.015 kg
