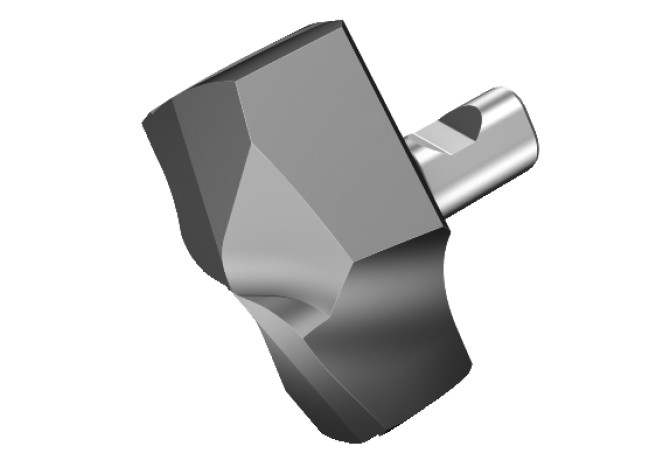

Главная Инструменты 203-03 - Replaceable insert flatted with chip flute 870-1650-16-GP 4334

870-1650-16-GP 4334

Артикул: 7357827

В наличии

0 ₽

В корзину

Описание

Характеристики

COATN (Coating)

PVD TiAlN

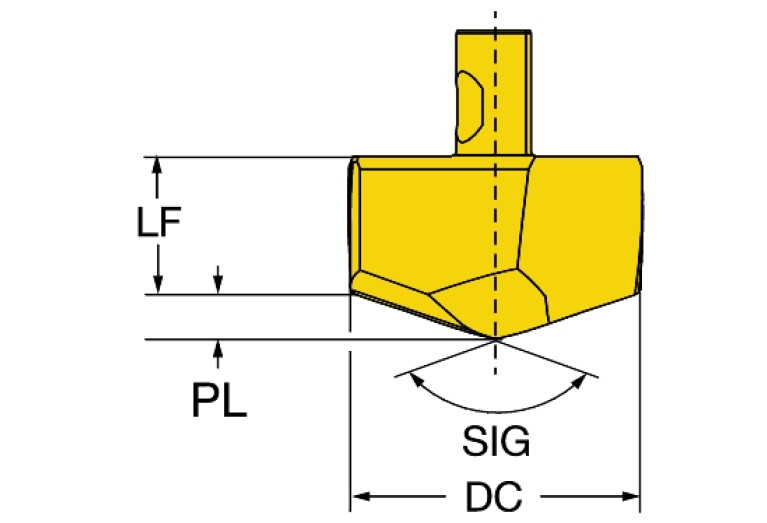

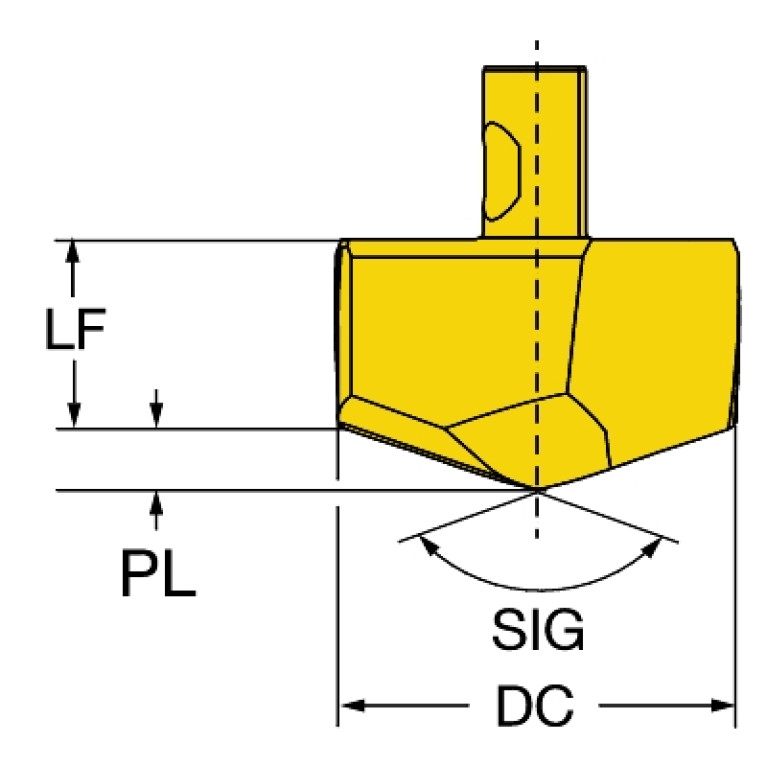

DC (Cutting diameter)

16.5 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-DK160000

GRDMFG (Grade manufacturers designation)

4334

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SV$$DK16$$$$0R$$$$$

LF (Functional length)

7.75 mm

LOC-03 ISO

SV$$DK16$$$$0R$$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SV-DK160000

LPR (Protruding length)

9.5 mm

Materials

P,M,K,N,S

NOF (Flute count)

OAL (Overall length)

16.4 mm

PL (Point length)

1.75 mm

S1 (Insert thickness total)

5.96 mm

SIG (Point angle 1st step)

152 Degree

Working process

BVB - Drilling

WT (Weight of item)

0.012 kg
