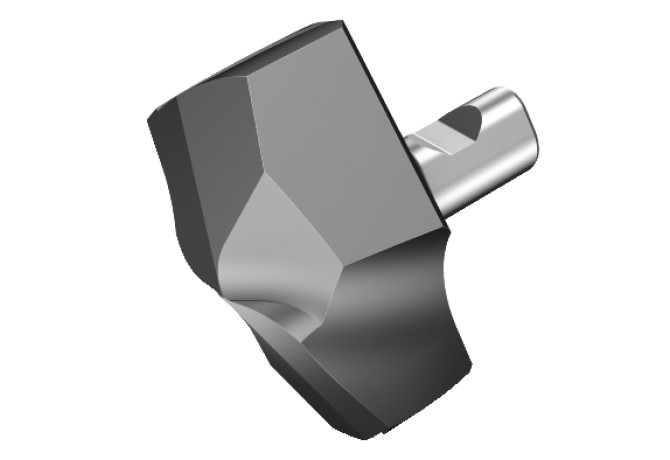

870-1620-16-PM 4334
870-1620-16-PM 4334
Артикул:
7357818
В наличии
0 ₽
Характеристики
COATN (Coating)
PVD TiAlN

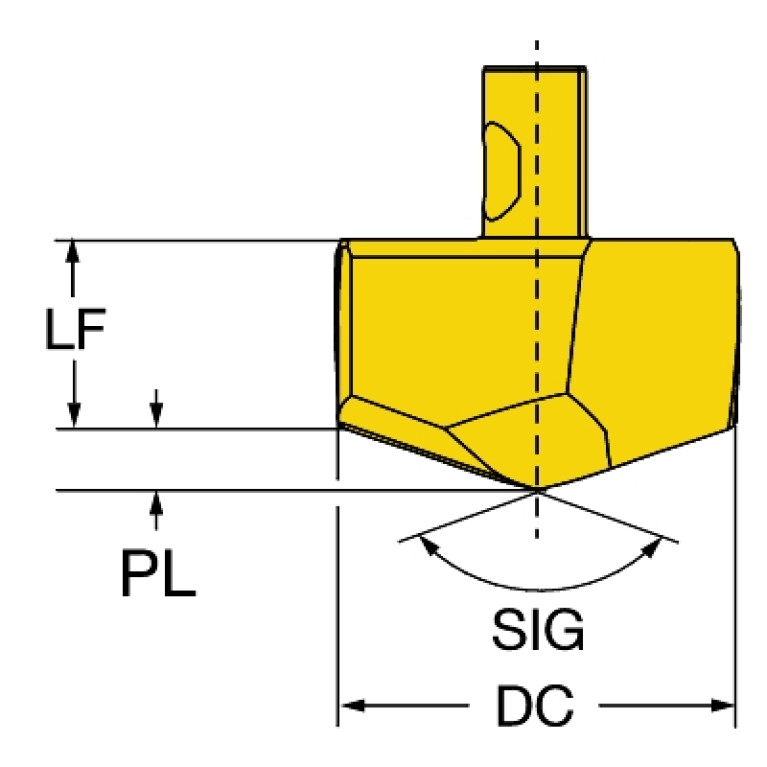

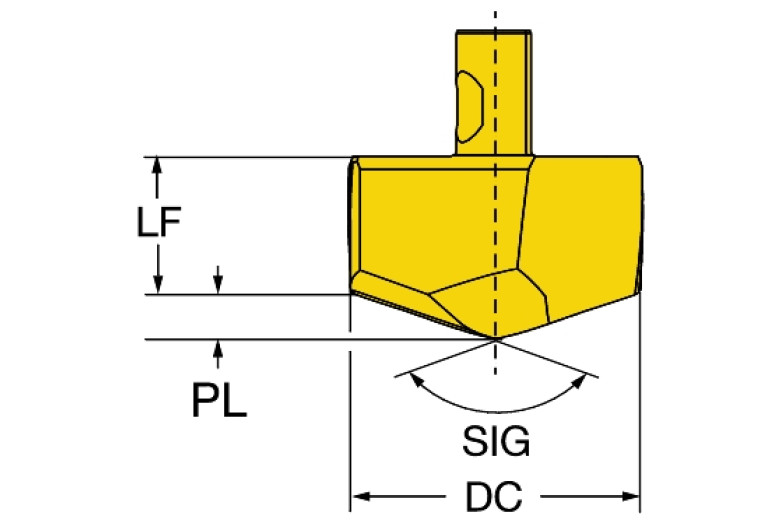

DC (Cutting diameter)
16.2 mm
Delivery state valid from
12/1/2023
DIN
SV-DK160000
GRDMFG (Grade manufacturers designation)
4334
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SV$$DK16$$$$0R$$$$$
LF (Functional length)
7.54 mm
LOC-03 ISO
SV$$DK16$$$$0R$$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-DK160000
LPR (Protruding length)
10 mm
Materials
P,M,K,N,S
NOF (Flute count)
1
OAL (Overall length)
16.9 mm
PL (Point length)
2.46 mm
S1 (Insert thickness total)
5.96 mm
SIG (Point angle 1st step)
142 Degree
Working process
BVB - Drilling
WT (Weight of item)
0.009 kg
