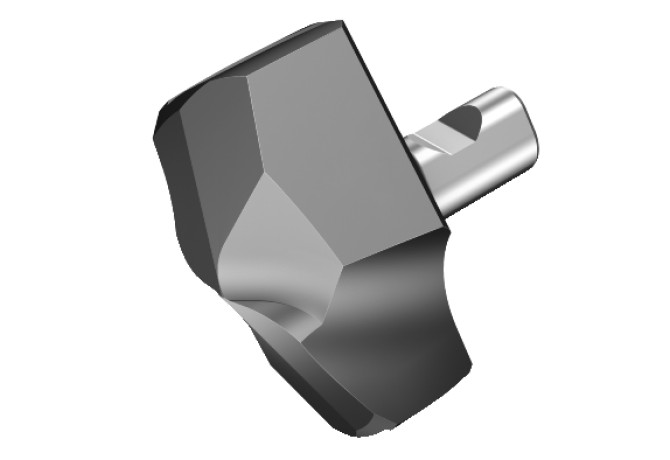

Главная Инструменты 203-03 - Replaceable insert flatted with chip flute 870-1540-15-KM 3334

870-1540-15-KM 3334

Артикул: 7357774

В наличии

0 ₽

В корзину

Описание

Характеристики

COATN (Coating)

PVD AlTiCrN

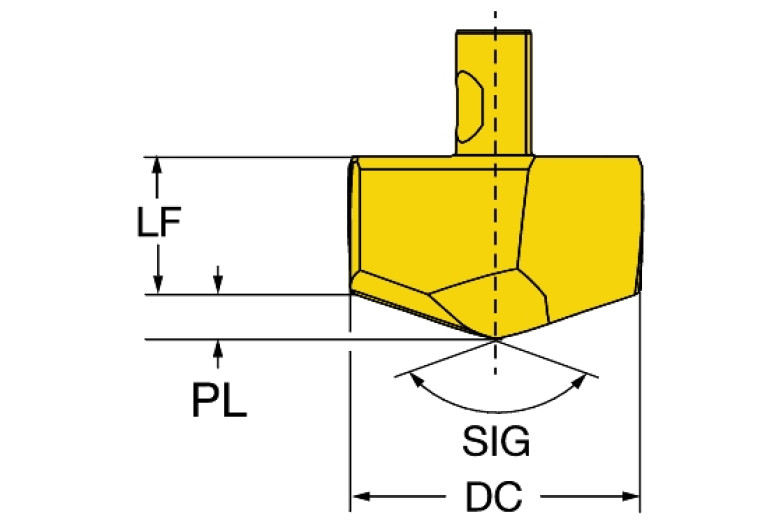

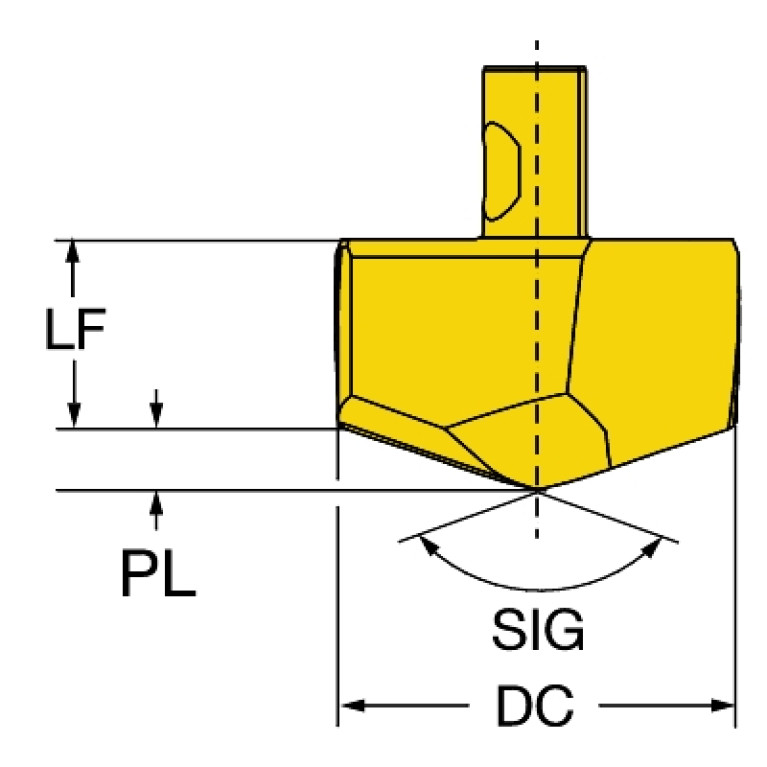

DC (Cutting diameter)

15.4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-DK150000

GRDMFG (Grade manufacturers designation)

3334

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SV$$DK15$$$$0R$$$$$

LF (Functional length)

6.45 mm

LOC-03 ISO

SV$$DK15$$$$0R$$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SV-DK150000

LPR (Protruding length)

9.3 mm

Materials

P,K

NOF (Flute count)

OAL (Overall length)

15.3 mm

PL (Point length)

2.85 mm

S1 (Insert thickness total)

5.66 mm

SIG (Point angle 1st step)

142 Degree

Working process

BVB - Drilling

WT (Weight of item)

0.008 kg
