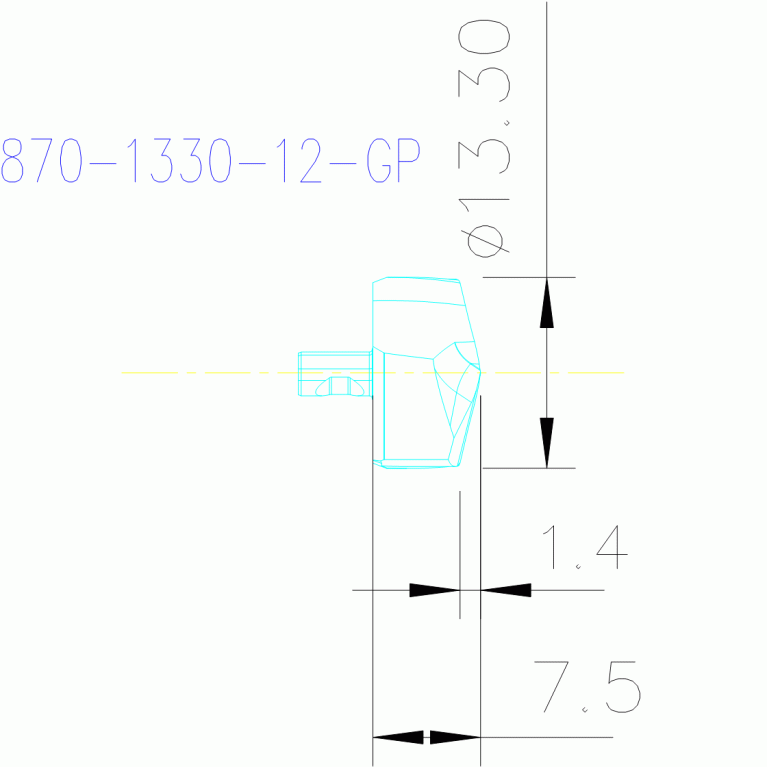

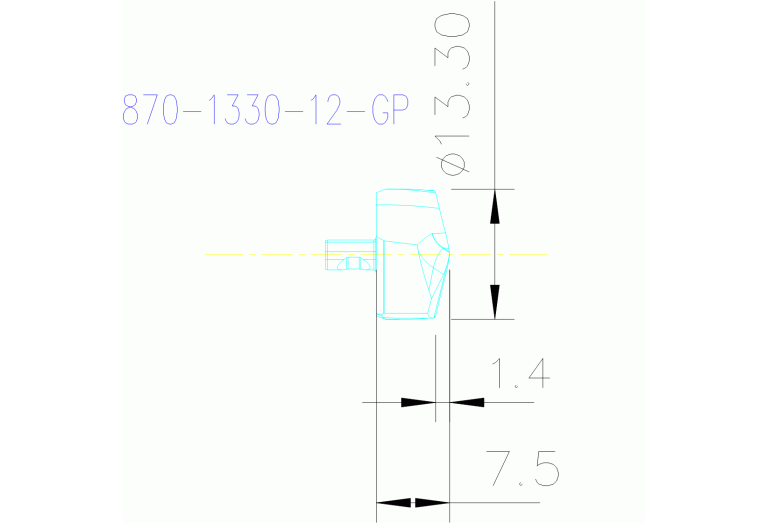

870-1330-12-GP 4234
870-1330-12-GP 4234
Артикул:
6341648
В наличии
0 ₽
Характеристики
COATN (Coating)
PVD TiAlN

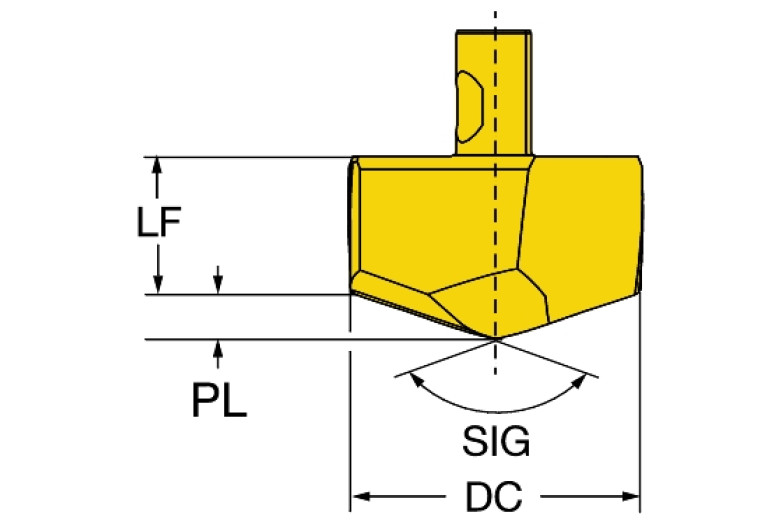

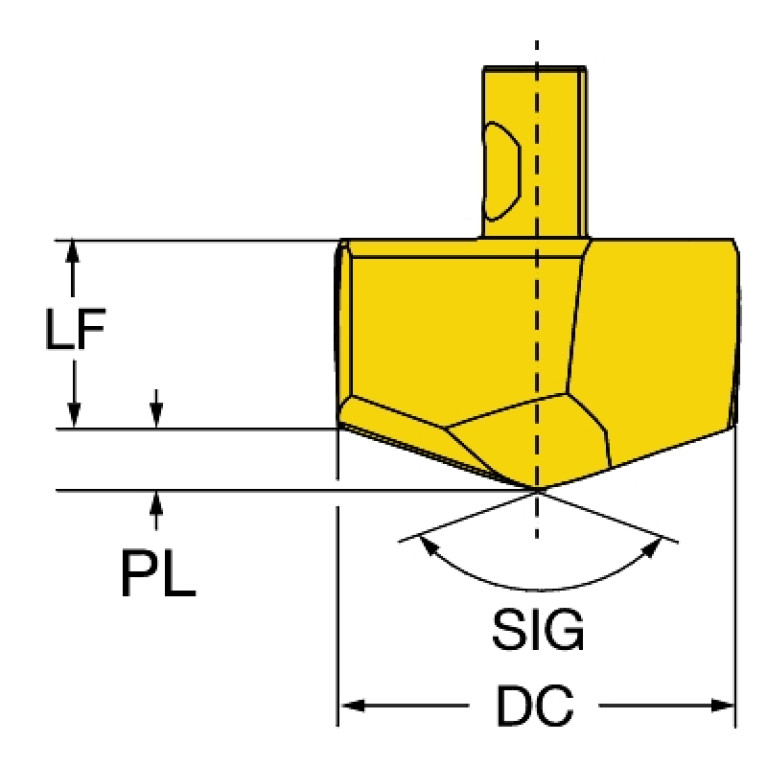

DC (Cutting diameter)
13.3 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SV-DK120000
GRDMFG (Grade manufacturers designation)
4234
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SV$$DK12$$$$0R$$$$$
LF (Functional length)
6.07 mm
LOC-03 ISO
SV$$DK12$$$$0R$$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-DK120000
LPR (Protruding length)
7.5 mm
Materials
P,M,K,N,S
NOF (Flute count)
1
OAL (Overall length)
12.7 mm
PL (Point length)
1.43 mm
S1 (Insert thickness total)
4.96 mm
SIG (Point angle 1st step)
152 Degree
Working process
BVB - Drilling
WT (Weight of item)
0.004 kg
