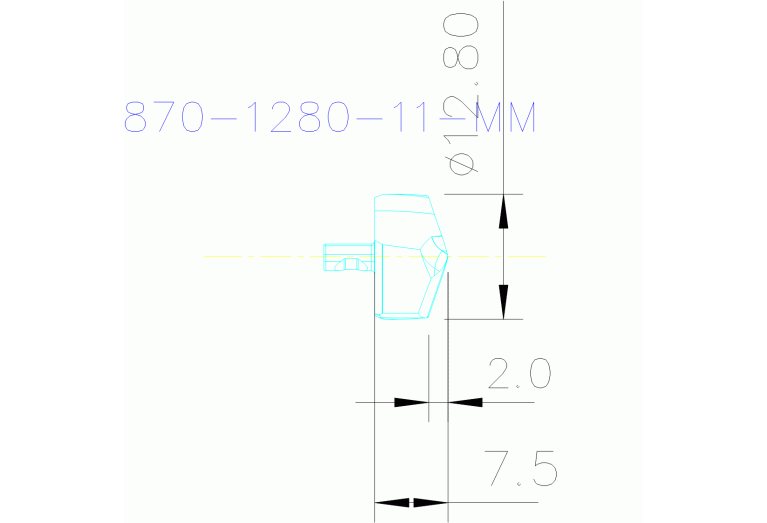

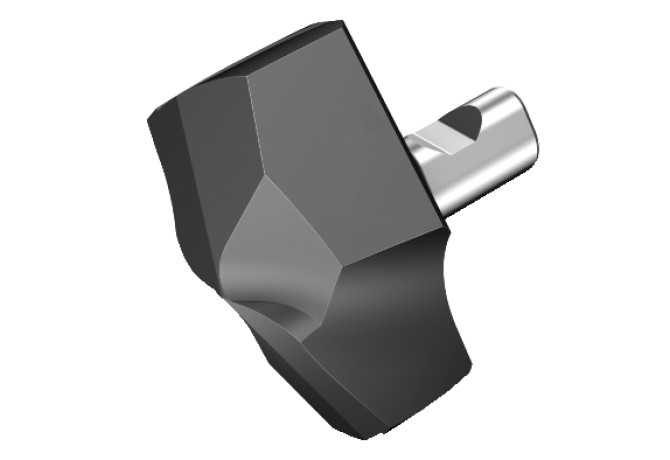

870-1280-11-MM 2234
870-1280-11-MM 2234
Артикул:
6341430
В наличии
0 ₽
Характеристики
COATN (Coating)
PVD TiAlN
DC (Cutting diameter)
12.8 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SV-DK110000
GRDMFG (Grade manufacturers designation)
2234
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SV$$DK11$$$$0R$$$$$

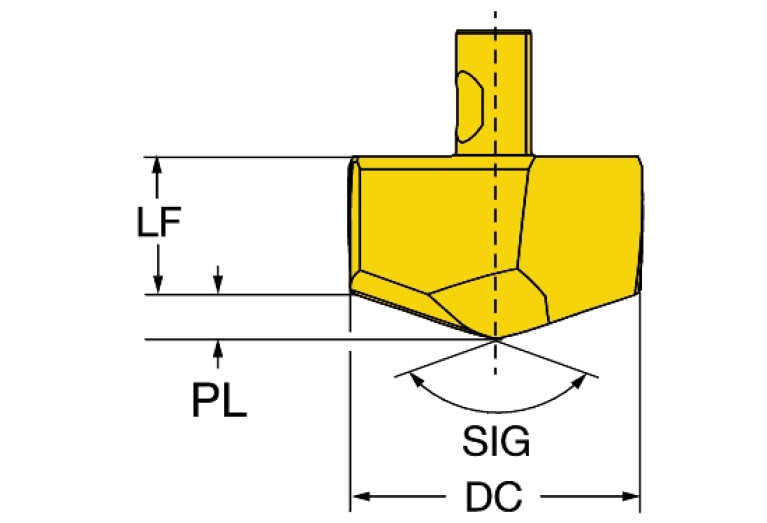

LF (Functional length)
5.53 mm
LOC-03 ISO
SV$$DK11$$$$0R$$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-DK110000
LPR (Protruding length)
7.5 mm
Materials
M,S
NOF (Flute count)
1
OAL (Overall length)
12.7 mm
PL (Point length)
1.97 mm
S1 (Insert thickness total)
4.76 mm
SIG (Point angle 1st step)
142 Degree
Working process
BVB - Drilling
WT (Weight of item)
0.004 kg
