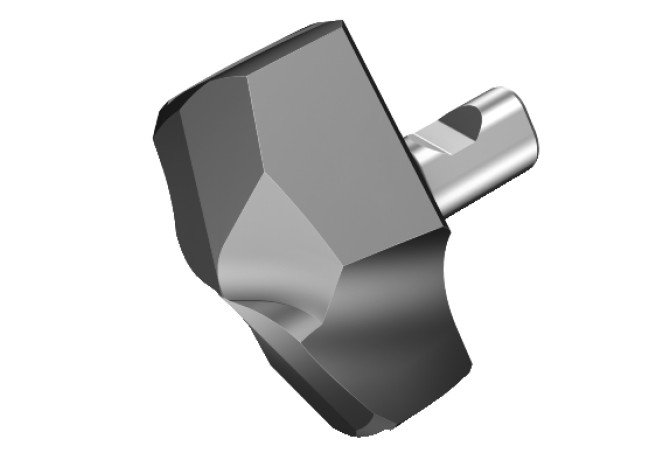

870-1240-10-KM 3334
870-1240-10-KM 3334
Артикул:
7357649
В наличии
0 ₽
Характеристики
COATN (Coating)
PVD AlTiCrN
DC (Cutting diameter)
12.4 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-DK100000
GRDMFG (Grade manufacturers designation)
3334
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SV$$DK10$$$$0R$$$$$
LF (Functional length)
5.25 mm
LOC-03 ISO
SV$$DK10$$$$0R$$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-DK100000
LPR (Protruding length)
7.5 mm
Materials
P,K
NOF (Flute count)
1
OAL (Overall length)
12.7 mm
PL (Point length)
2.25 mm
S1 (Insert thickness total)
4.66 mm
SIG (Point angle 1st step)
142 Degree
Working process
BVB - Drilling
WT (Weight of item)
0.004 kg
