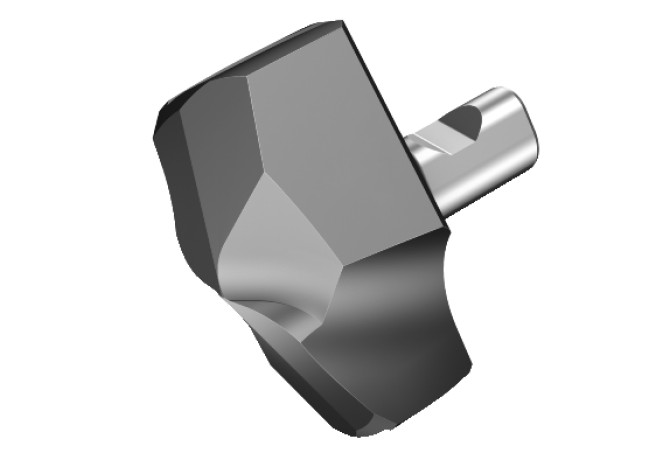

870-1110-8-KM 3334
870-1110-8-KM 3334
Артикул:
7357593
В наличии
0 ₽
Характеристики
COATN (Coating)
PVD AlTiCrN
DC (Cutting diameter)
11.1 mm
Delivery state valid from
12/1/2023
DIN
SV-DK080000
GRDMFG (Grade manufacturers designation)
3334
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SV$$DK08$$$$0R$$$$$
LF (Functional length)
4.92 mm
LOC-03 ISO
SV$$DK08$$$$0R$$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-DK080000
LPR (Protruding length)
6.9 mm
Materials
P,K
NOF (Flute count)
1
OAL (Overall length)
11.2 mm
PL (Point length)
1.98 mm
S1 (Insert thickness total)
4.46 mm
SIG (Point angle 1st step)
142 Degree
Working process
BVB - Drilling
WT (Weight of item)
0.003 kg
